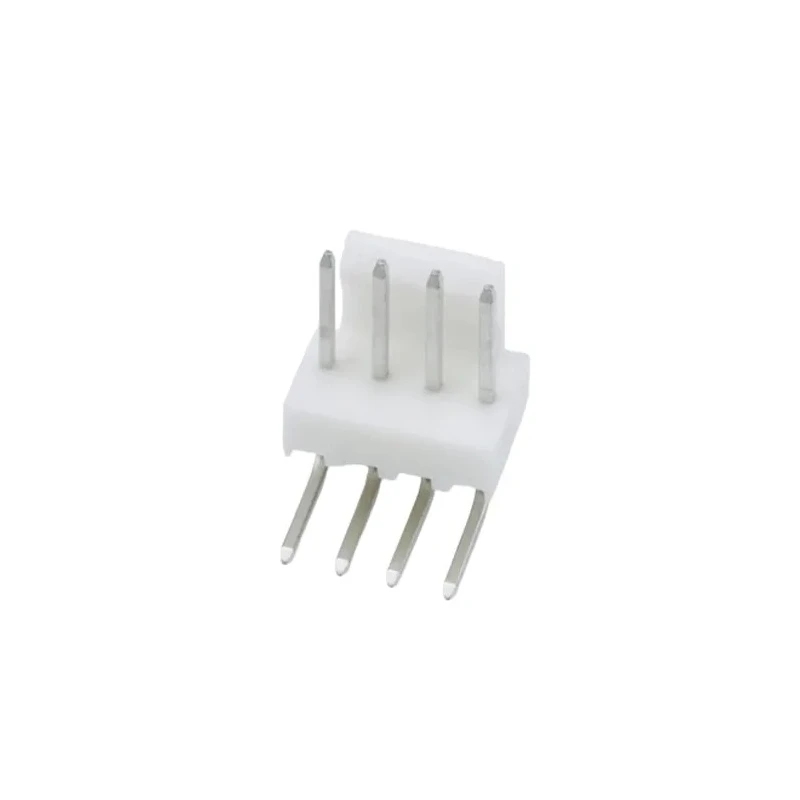

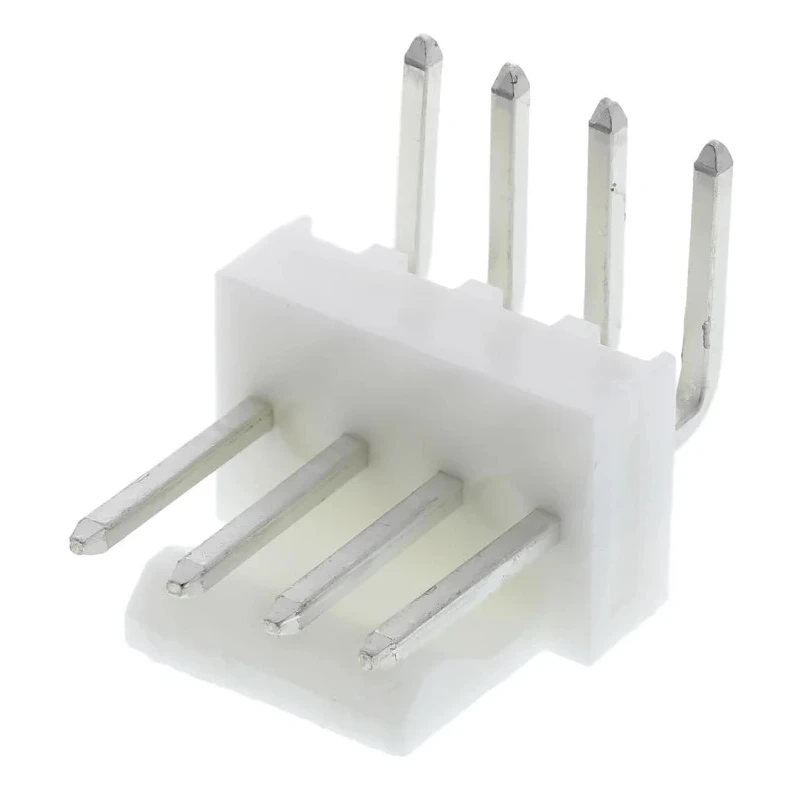

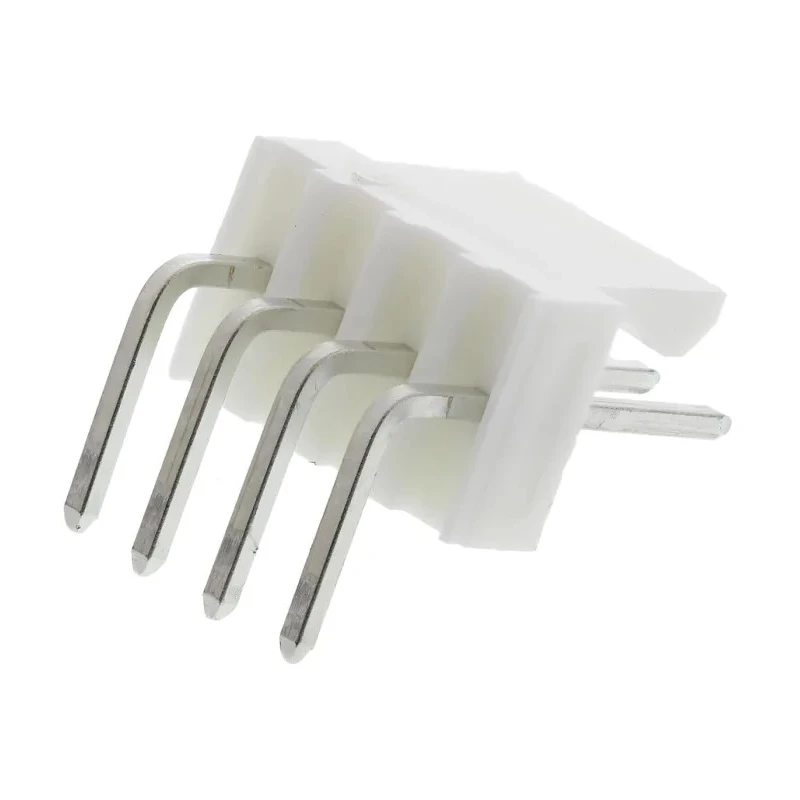

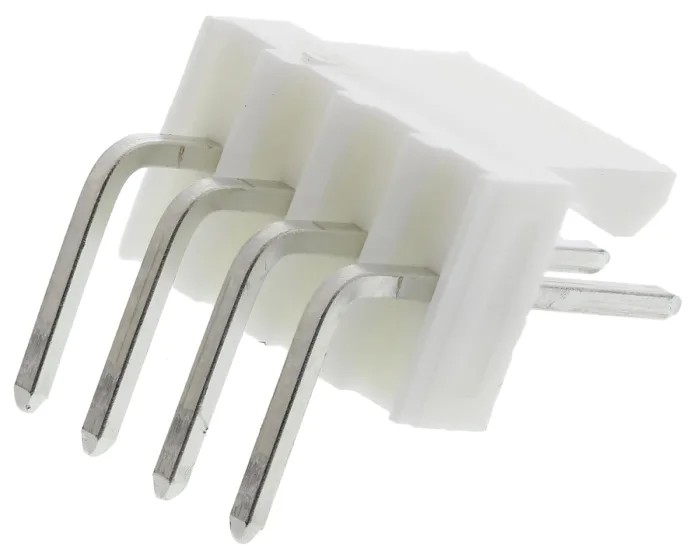

Molex KK 254 Series Right Angle Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-3041
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.58mm |
Key Features
- Features 4 brass male contacts with tin plating for enhanced conductivity and corrosion resistance.
- Through hole mounting with right angle orientation allows secure and space-efficient PCB installation.
- Constructed with flame-retardant nylon housing, rated UL 94V-0, ensuring self-extinguishing fire safety.
- Supports a maximum current of 4A and voltage up to 500V for versatile use in industrial electronics.
- Operates reliably in temperatures from -40°C to 105°C for demanding environmental conditions.
- Unshrouded design ensures easy mating while minimizing board footprint in crowded assemblies.
- Standard 2.54 mm pitch grid spacing matches existing PCB layouts and connectors.
- Tail pin length of 3.58 mm optimized for solder termination in through-hole mounting.
Product Description
Molex 22-05-3041 KK 254 Series Right Angle Through Hole Pin Header features a wire-to-board connector system with 4 male contacts arranged in a single row with a 2.54 mm pitch. This right angle, through hole pin header offers a compact, reliable solution for PCB interconnections in industrial, telecommunications, vehicle manufacturing, and electronic applications.
The connector housing is made from flame-retardant nylon resin compliant with UL 94V-0 standard, which enables the product to self-extinguish fire in less than 10 seconds, enhancing safety in harsh environments. Brass contacts with tin plating provide corrosion resistance and stable electrical performance with a current rating of 4 amps and voltage up to 500 volts.
The 3.58 mm tail pin length ensures robust solder termination, while the unshrouded design helps minimize board space without compromising connection integrity. The right angle orientation is ideal for tight or crowded PCB layouts where vertical height must be controlled. Operating temperature from -40°C to 105°C confirms durability under varied environmental conditions.
Features 4 brass male contacts with tin plating for signal integrity. Through hole mount with right angle orientation saves PCB space. Flame-retardant nylon housing is UL 94V-0 compliant. Rated for 4A current and voltage up to 500V suitable for industrial electronics.
Operating temperature range from -40°C to 105°C for diverse applications. Standard 2.54 mm pitch spacing for compatibility with PCB layouts. Unshrouded design supports easy mating and assembly. Tail pin length of 3.58 mm ensures reliable solder connections.
This Molex pin header is suitable for industrial electronics, vehicle manufacturing, telecommunications, and other applications requiring robust and compact PCB connectivity. Explore our category for more PCB header connectors and related electronic components to suit your manufacturing and assembly needs at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4A and a voltage of up to 500V, making it suitable for various industrial electronics applications.
The pitch size of this pin header is 2.54 mm, which is standard for compatibility with existing PCB layouts.
The housing is made from flame-retardant nylon, compliant with UL 94V-0 standards, while the contacts are made of brass with tin plating for enhanced conductivity and corrosion resistance.
The tail pin length is 3.58 mm, optimized for solder termination in through-hole mounting.
It operates reliably within a temperature range of -40°C to 105°C, suitable for demanding environmental conditions.
This pin header features 4 male contacts arranged in a single row.
It uses a through hole mounting method, which allows for secure and space-efficient installation on PCBs.
This model is unshrouded, which facilitates easy mating while minimizing the board footprint in crowded assemblies.
It is part of a wire-to-board connector system, designed for reliable PCB interconnections.
It is suitable for applications in industrial electronics, telecommunications, and vehicle manufacturing, among others.
The pin header has a right angle orientation, which is ideal for tight or crowded PCB layouts where vertical height must be controlled.
The country of origin for this pin header is India.
