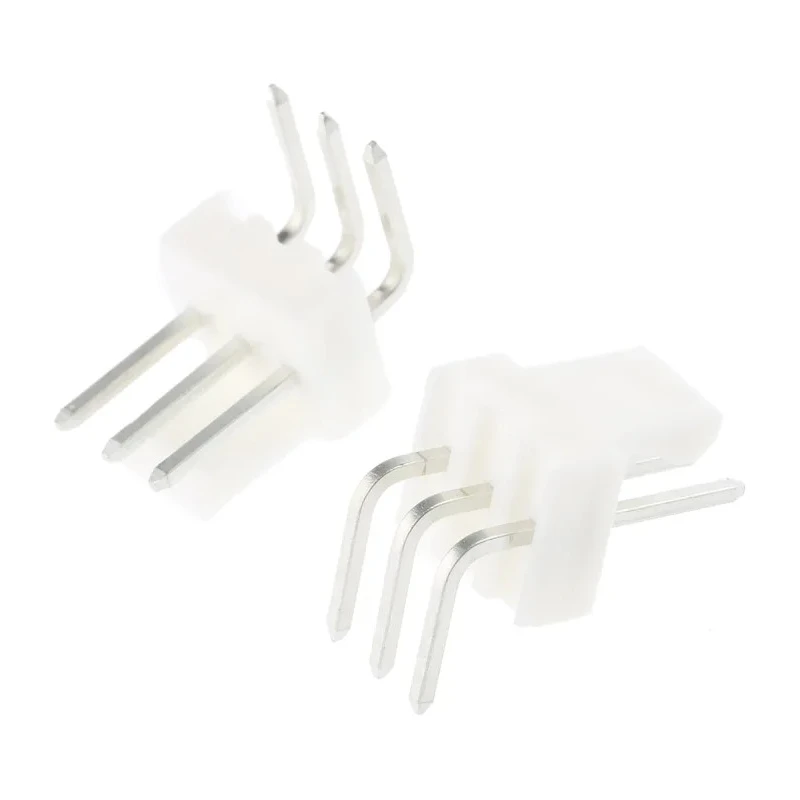

Molex KK 254 Series Right Angle Through Hole Pin Header 3 Contact 2.54 mm Pitch 1 Row Unshrouded 22-05-3031
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.58mm |
Key Features
- Features a 1-row, unshrouded design for easy soldering and assembly.
- Constructed with brass contacts and tin plating for excellent electrical conductivity.
- Supports a maximum current of 4 A and voltage rating of 250 V.
- Equipped with right angle orientation for optimized board layout.
- Durable nylon UL 94V-0 white housing ensures flame resistance and mechanical stability.
- Operates reliably between -40°C and 105°C for industrial and electronic applications.
- Tail pin length is precisely 3.58 mm for consistent solder joint quality.
Product Description
Molex 22-05-3031 KK 254 Series Right Angle Through Hole Pin Header offers high-performance PCB connection solutions for electronic and industrial equipment requiring robust wire-to-board interfacing. Designed with a 1-row layout and 3 contacts spaced at 2.54 mm pitch, this connector features an unshrouded design facilitating easy access during soldering and assembly processes.
The nylon UL 94V-0 white housing provides excellent flame retardant properties and mechanical strength, making it suitable for demanding operating environments. Brass contacts with tin plating ensure low resistance and durable electrical conductivity, supporting a current capacity of up to 4 amperes and voltage rating of 250 volts.
Its right angle orientation optimizes PCB space and wiring routes, commonly used in industrial control, automation, and consumer electronics. The connector is mounted through holes on the PCB, anchored securely for mechanical stability. Operating temperature range from -40°C to +105°C assures reliable function across various industrial conditions.
Tail pin length of 3.58 mm offers consistent soldering performance and secure electrical connection. The KK 254 series connectors mate with corresponding 2695 series housings, such as friction lock types, for modular assembly configurations.
It is suitable for industrial manufacturing, laboratory instrumentation, commercial electronics assembly, and electrical systems integration. Features a 1-row, unshrouded design for easy soldering and assembly. Constructed with brass contacts and tin plating for excellent electrical conductivity.
Supports a maximum current of 4 A and voltage rating of 250 V. Equipped with right angle orientation for optimized board layout. Durable nylon UL 94V-0 white housing ensures flame resistance and mechanical stability. Operates reliably between -40°C and 105°C for industrial and electronic applications.
Tail pin length is precisely 3.58 mm for consistent solder joint quality.
Ideal for electronics manufacturers and system integrators looking for reliable pin headers for PCB interconnections. Browse Molex products and PCB Headers categories at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4 A and a voltage rating of 250 V.
The contacts are spaced at a pitch of 2.54 mm.
It features brass contacts with tin plating for electrical conductivity and a nylon UL 94V-0 housing for mechanical stability and flame resistance.
The tail pin length is precisely 3.58 mm, ensuring consistent solder joint quality.
It operates reliably between -40°C and 105°C, suitable for various industrial applications.
This model is designed for through hole mounting on the PCB, providing secure mechanical stability.
It utilizes a wire-to-board connector system, facilitating robust electrical connections.
The connector is designed with a right angle orientation, optimizing PCB layout and wiring routes.
This model features 3 contacts in a single row configuration.
It is designed as an unshrouded connector, allowing easy access for soldering and assembly.
It is suitable for use in industrial control, automation, consumer electronics, and laboratory instrumentation.
The pin header is manufactured in India.
