Molex Terminal Position Assurance for Micro-Fit TPA Receptacle Housing Low Halogen 172952, 10A, Gold or Tin 172953-0801

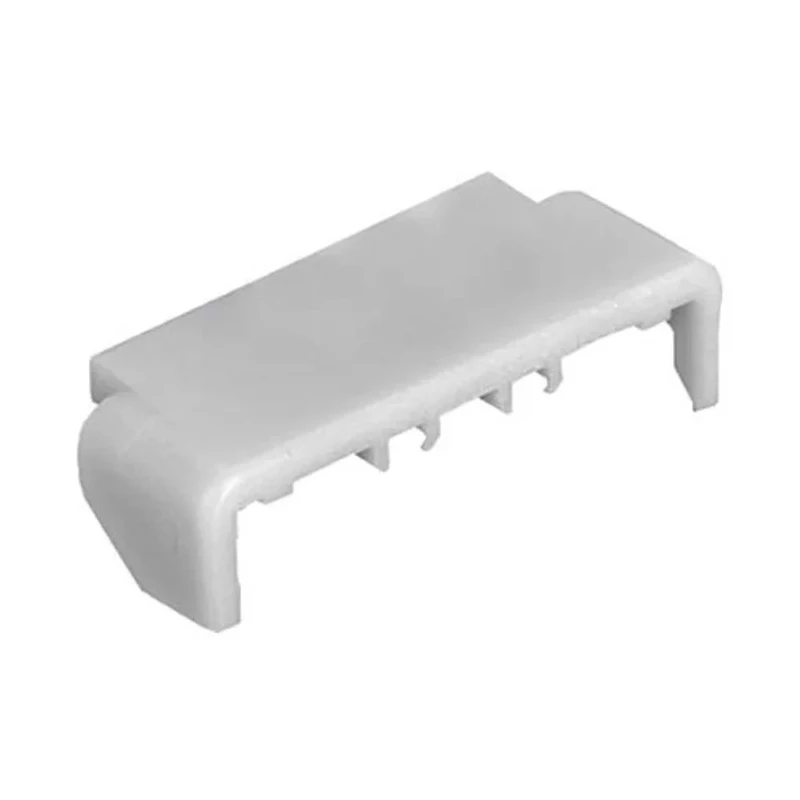

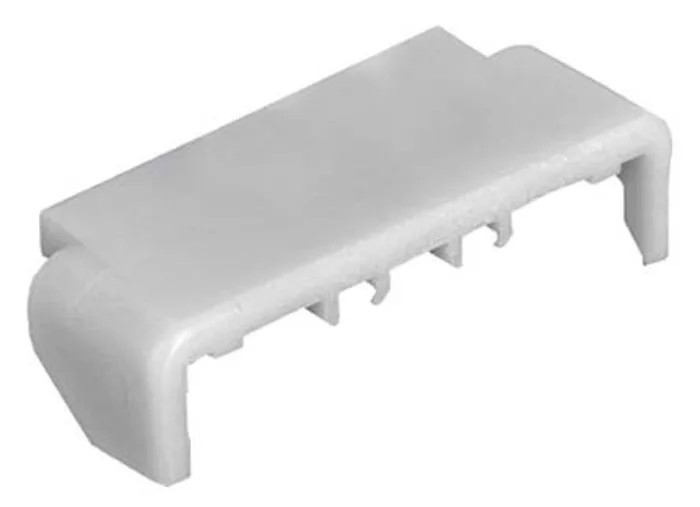

Molex 172953-0801 Terminal Position Assurance (TPA) is specifically engineered for use with Micro-Fit TPA Receptacle Housing Low Halogen 172952 connectors. Rated for 10A current, these TPAs enhance the mechanical security of connectors by providing a secondary locking mechanism that prevents terminal backouts caused by improper assembly.

The contact material is a phosphor bronze copper alloy, which provides both excellent electrical conductivity and mechanical robustness. The contacts are plated with either gold or tin, offering protection against corrosion and ensuring dependable performance over their operational life.

These terminal position assurances are compatible with wire sizes ranging from a minimum of 30 AWG to a maximum of 20 AWG. The crimp termination type ensures strong and stable mechanical and electrical connections. The operating temperature range spans from -40°C to 105°C, making these suitable for a variety of industrial, commercial, and electronic applications where temperature fluctuations occur.

Molex's 172953 series TPAs are designed to enhance connector reliability by providing secondary locking for Micro-Fit double row receptacle housings. They play a critical role in safeguarding electrical circuits in electronics manufacturing, industrial automation systems, and other high-performance electronic applications.

Constructed from phosphor bronze copper alloy for reliable conductivity. Contact plating options include gold or tin to ensure corrosion resistance. Supports wire sizes from 30 AWG minimum to 20 AWG maximum. Terminates via crimp method to secure wire connections effectively.

Operates over a temperature range from -40°C to 105°C for varied environments. Designed to prevent terminal backouts with an integrated secondary lock feature. Part of the Molex 172953 series to complement Micro-Fit double row receptacle housings.

This product is manufactured in China and is supplied in new condition. It is suitable for use in electronics assembly, industrial control panels, power equipment, and automotive electrical systems.
