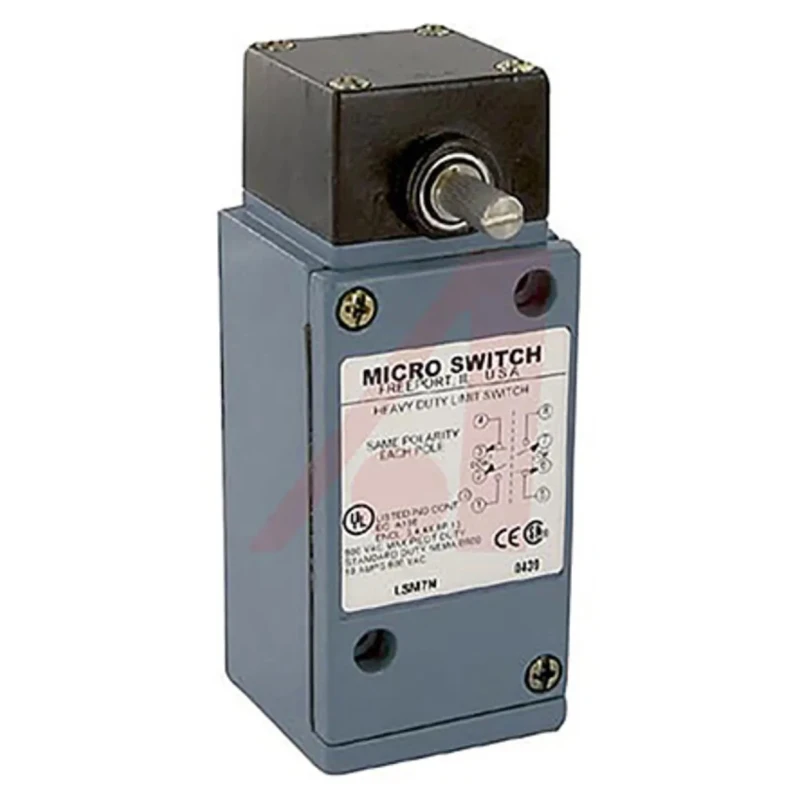

Honeywell Technologies HDLS Series Side Rotary Limit Switch DPDT Double Break 600V AC 10A Die Cast Zinc Housing LSM7N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell Technologies |
| Length | 47.8mm |
| Model | LSM7N |
| Depth | 119mm |
| IP Rating | IP65, IP67, IP66 |
| Width | 45.3mm |
| Housing Material | Die Cast Zinc |
| Series | HDLS |
| Maximum Operating Temperature | 121°C |
| Mounting Orientation | Side |
| Contact Configuration | DPDT |
| Actuator Type | Side Rotary |
| Contact Type | Double Break |
| Minimum Operating Temperature | -1°C |
| Switching Current | 10A |
| Standards/Approvals | CSA, CE, CCC, UL, RoHS, IEC, EN |
| Operating Force | 0.45Nm |
| Mechanical Life | 50000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 600V ac |
| Type 4X | Allows for indoor our outdoor use and provides some ptoection against windust dust and rain, corroision, splashing water and hose directed water |
Key Features
- The switch features a durable die cast zinc housing suitable for harsh industrial environments.
- It has an IP rating of IP65, IP66, and IP67, ensuring resistance to dust, water splashes, and hose-directed water.
- Designed for a mechanical life of 50 million cycles, delivering long-term reliability.
- The switch supports a wide operating temperature range from -1°C to 121°C for use in extreme conditions.
- Includes a side rotary actuator type with an operating force of 0.45 Nm for precise operation.
- Suitable for indoor and outdoor applications, including machinery, conveyors, and transportation systems.
- Equipped with double break contact type for enhanced electrical performance.
- Compact dimensions with length of 47.8 mm, width 45.3 mm, and depth 119 mm.
Product Description
Honeywell Technologies LSM7N HDLS Series Side Rotary Limit Switch is a heavy-duty industrial device engineered for reliable operation in demanding environments. It features a DPDT double break contact configuration and is rated for 600V AC switching voltage and 10A current capacity. The die cast zinc housing provides robust protection against impacts, dust, and liquids, making the switch suitable for both indoor and outdoor installations in harsh industrial settings.
This limit switch withstands extreme temperature conditions, operating reliably from -1°C to 121°C, and is designed to endure mechanical stress with a lifespan of up to 50 million cycles. The side rotary actuator allows precise actuation with a low operating force of 0.45 Nm, ensuring consistent performance.
The product complies with various international standards including CSA, CE, CCC, UL, RoHS, IEC, and EN, confirming its safety and quality for industrial automation needs. Its IP65, IP66, and IP67 ratings safeguard it against ingress of dust and water jets, enhanced by corrosion-resistant zinc treated with epoxy and phosphate coatings combined with a flat gasket sealing system.
Typical applications include use in machining and material handling equipment, production lines, conveyor systems, and transportation machinery where reliable position or limit detection is critical. The modular design supports a variety of actuator types and mounting configurations to suit multiple operational requirements.
The switch’s die cast zinc housing ensures strength and corrosion resistance. DPDT and double break contacts provide reliable electrical switching with a 10A current rating. High IP ratings allow use in dusty, wet, and splash-prone environments.
Long mechanical life cycle up to 50 million operations. Wide temperature tolerance supports extreme industrial conditions. Compact size for easy integration into control systems. Side rotary actuator provides dependable and precise actuation.
Explore Honeywell Technologies Limit Switches and other industrial automation products at EnvMart for dependable, high-performance solutions tailored to your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for a maximum switching voltage of 600V AC and 250V DC.
It is designed for a mechanical life of up to 50 million cycles, ensuring long-term reliability in operation.
This model has a length of 47.8 mm, a width of 45.3 mm, and a depth of 119 mm.
The switch operates reliably within a temperature range from -1°C to 121°C.
It features a side rotary actuator type, which allows for precise actuation with an operating force of 0.45 Nm.
The limit switch has a DPDT (Double Pole Double Throw) contact configuration.
This switch has IP65, IP66, and IP67 ratings, providing resistance to dust and water splashes.
The housing is made of die cast zinc, which provides robust protection against impacts and corrosion.
It complies with several standards including CSA, CE, CCC, UL, RoHS, IEC, and EN.
Typical applications include use in machinery, conveyors, and transportation systems where reliable position or limit detection is critical.
The switch is rated for a maximum current capacity of 10A.
Yes, it is designed for both indoor and outdoor use, providing protection against dust and water.
