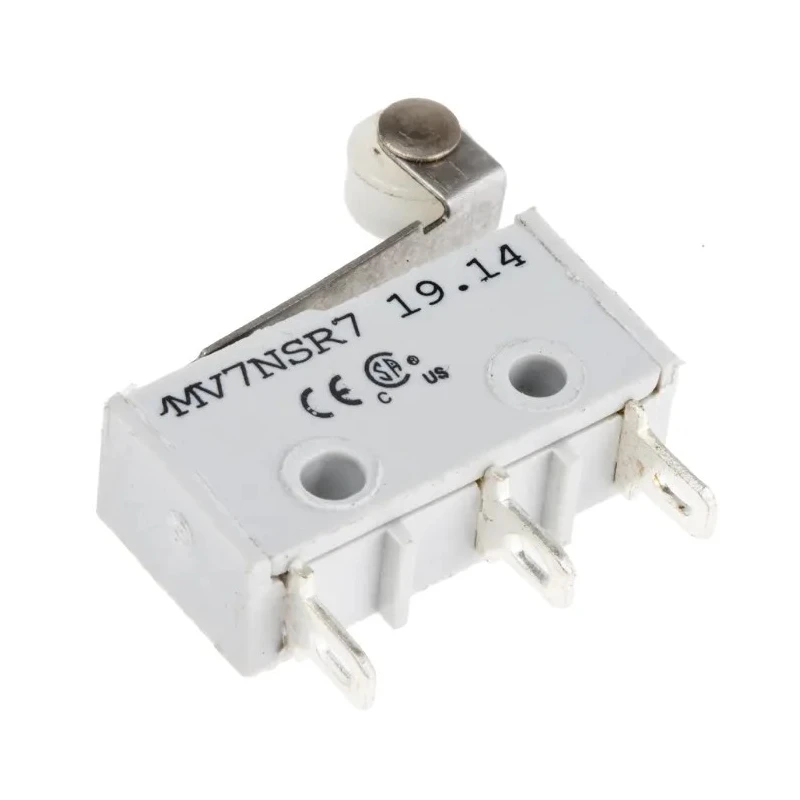

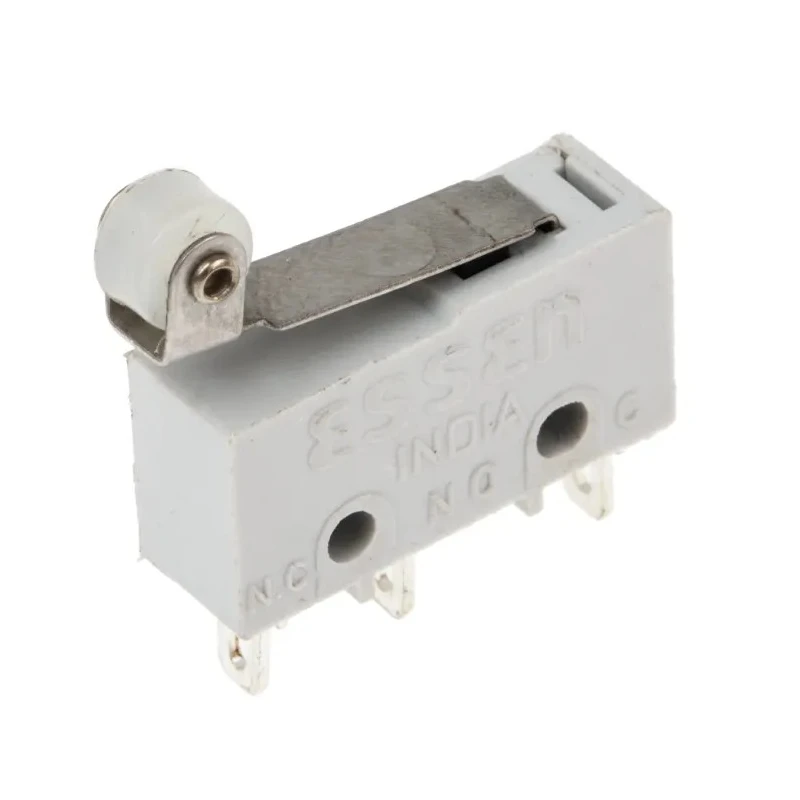

RS PRO Roller Lever Subminiature Micro Switch, Solder Terminal, 2A, 250V AC, SPST, IP40 804-6265
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 19.8mm |
| Model | 804-6265 |
| IP Rating | IP40 |
| Width | 6.4mm |
| Housing Material | Glass Filled Thermoplastic |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | IEC 1058-1, CSA, CE |
| Switch Contact Current | 2A |
| Operating Force | 50g |
| Mechanical Life | 500000Cycles |
| Contact AC Voltage | 250V ac |
| Approvals and Standards | CE, CSA, UKCA, IEC 1508-1, U L94V-0 |
Key Features
- Constructed with glass-filled thermoplastic housing for durability.
- Features a roller lever actuator with low 50g operating force.
- Silver contacts and silver-plated copper terminals ensure consistent conductivity.
- Designed for easy solder termination and side mounting with screw holes.
- Rated IP40 for protection against solid objects.
- Operates reliably from -25°C up to 85°C.
- Offers a long mechanical life of 500,000 cycles.
- Complies with IEC 1058-1, CSA, CE standards and certifications.
Product Description
RS PRO 804-6265 Roller Lever Subminiature Micro Switch is a precision SPST switch designed for industrial, automation, and electrical applications requiring reliable low-current switching at 2A and 250V AC. It features a roller lever actuator offering excellent tactile feedback with a low operating force of 50 grams, making it suitable for applications needing sensitive actuation.
The switch is constructed using a glass-filled thermoplastic housing which provides strength, flame retardance, and durability. Silver contacts paired with silver-plated copper terminals guarantee excellent conductivity and resistance to oxidation, maintaining performance over a mechanical life of 500,000 cycles.
The micro switch is IP40 rated, protecting against solid particle ingress but is not waterproof. It is intended to be mounted on smooth, flat surfaces via two side screw holes compatible with M2 or #2 UNF screws, simplifying installation. The solder terminal type allows for straightforward electrical connections.
This product complies with IEC 1058-1, CSA, and CE standards, assuring safety and quality. The operating temperature range of -25°C to 85°C enables use in moderate industrial and automation environments without performance degradation.
Its compact size (19.8 mm length and 6.4 mm width) and precise switching characteristics make it ideal for equipment control panels, limit switches, or machinery requiring reliable micro switch operation. The 2.8 g weight reflects its miniature form factor.
Constructed with glass-filled flame retardant plastic housing for high durability. Roller lever actuator designed for sensitive and reliable switching action. Silver plated contacts and copper terminals improve conductivity and lifespan.
Side mounting and solder termination enable versatile installation options. IP40 rating suitable for general industrial environments. Mechanical life rated at 500,000 cycles ensures long-lasting performance. Complies with international safety and quality standards including CE and CSA.
Wide operating temperature range from -25°C to 85°C supports diverse applications.
RS PRO is a trusted brand delivering professional-grade products rigorously tested for consistent quality. This roller lever subminiature micro switch meets the demands of electrical, automation, and manufacturing industries seeking reliable control components.
Explore more RS PRO products and Micro Switches in the Electronics & Electricals category on EnvMart to find compatible solutions for your automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch is rated for a maximum current of 2A and a contact AC voltage of 250V.
It operates reliably within a temperature range of -25°C to 85°C.
This model features a roller lever actuator designed for sensitive and reliable switching action.
It is designed for side mounting on smooth, flat surfaces using two screw holes compatible with M2 or #2 UNF screws.
The switch is constructed with a glass-filled thermoplastic housing, providing strength and flame retardance.
It has a mechanical life rated at 500,000 cycles, ensuring long-lasting performance.
The switch features solder terminals for straightforward electrical connections.
This model has an IP40 rating, providing protection against solid particle ingress.
It complies with IEC 1058-1, CSA, and CE standards, assuring safety and quality.
The switch weighs 2.8 g and has dimensions of 19.8 mm in length and 6.4 mm in width.
The operating force for this model is 50 grams, enabling sensitive actuation.
It is suitable for industrial, automation, and electrical applications requiring reliable low-current switching.
