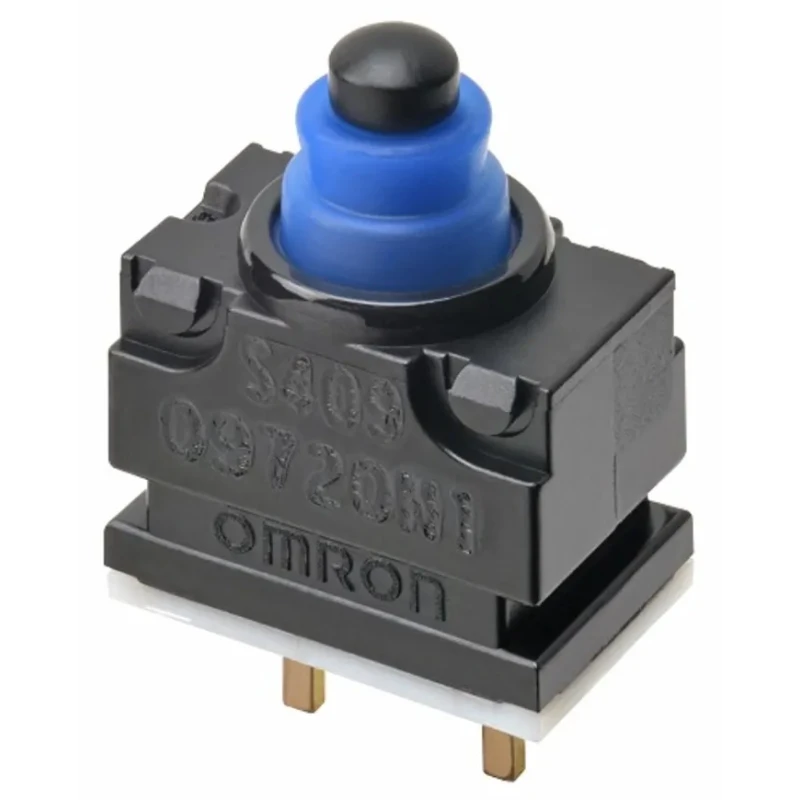

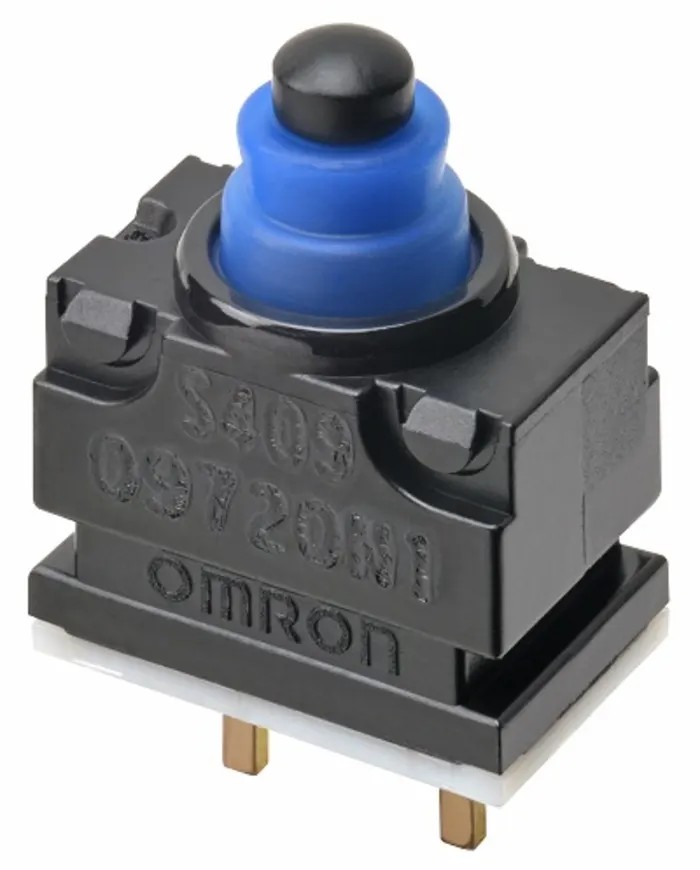

Omron Subminiature Micro Switch Pin Plunger PCB Terminal SPST 1mA 13.5V dc IP67 D2GW-A03H

Omron D2GW-A03H is a sealed ultra subminiature micro switch featuring a pin plunger actuator and PCB terminal type. It operates with a single pole single throw (SPST) contact configuration designed for micro-load applications supporting 1mA contact current at 13.5V dc. The switch is IP67 rated, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments.

This micro switch operates reliably within temperatures ranging from -40°C to 85°C, ensuring performance in diverse climatic conditions. Its symmetrical shape contributes to design simplification and supports a wide variety of actuator types, accommodating various operating bodies including different shapes, materials, and operations.

The sliding internal structure reduces operational noise during switching action. Press-fit terminals facilitate quick and solder-less PCB mounting, improving manufacturing efficiency. It complies with RoHS standards, reflecting environmentally responsible manufacturing.

Typical industrial applications include electrical equipment, automation controls, and precision devices where compact size and reliable micro-switching capability are essential. The D2GW series switch is ideal for precise control, signal detection, and safety mechanisms in electronics manufacturing and HVAC systems.

The switch features a durable pin plunger actuator for reliable operation. It has a single pole single throw (SPST) contact configuration. The device supports a low contact current rating of 1mA at 13.5V dc. Offers IP67 ingress protection ensuring robust sealing against dust and water.

Operates within a temperature range from -40°C to 85°C. Designed with a compact subminiature form factor suitable for space-limited applications. Includes press-fit terminals enabling solder-less connections on PCBs. Compliant with RoHS environmental standards.

Symmetrical design enables versatile actuator options for various operating bodies. Quiet operation ensured by sliding structure within the switch mechanism. Find this micro switch and other high-quality Omron products in the Electronics & Electricals category at EnvMart for reliable industrial and laboratory automation solutions.
