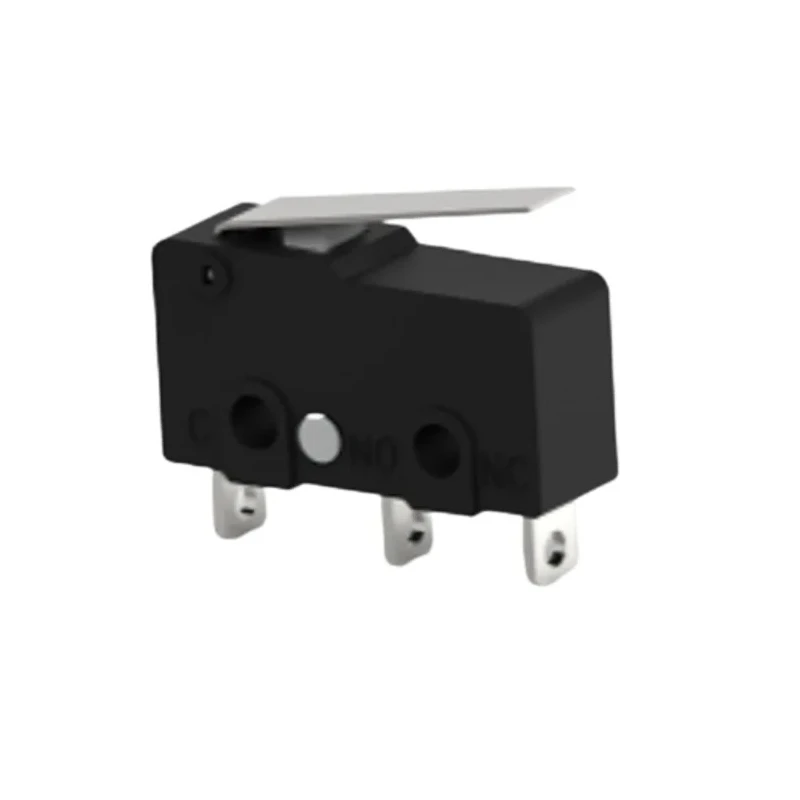

TE Connectivity Lever Snap Action Miniature Micro Switch, Solder Terminal, 3A, 250V AC, 30V DC SAJ25YXHL0147SDTSEQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXHL0147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- Features a lever actuator type for precise mechanical triggering.
- Solder terminal connection suitable for PCB mounting.
- Switch contact current rated at 3 amperes for versatile applications.
- Single Pole Double Throw (SPDT) contact configuration enhances circuit options.
- Operating force of 1.47 newtons ensures dependable tactile response.
- Operates reliably across a temperature range of -40°C to 75°C.
- Miniature microswitch design with mechanical life expectancy up to 10 million cycles.
- RoHS compliant, ensuring environmental safety standards.
Product Description
TE Connectivity SAJ25YXHL0147SDTSEQ lever snap action miniature micro switch with solder terminal type is engineered to convert mechanical actions into electrical signals efficiently. It features a lever actuator for easy operation and uses solder terminals for PCB mounting, making it suitable for a wide range of electrical and electronic applications.
Rated for a switch contact current of 3A, this micro switch supports voltages of 250V AC and 30V DC, accommodating various industrial, consumer electronics, home appliance, and factory automation environments. Its SPDT contact configuration enhances design flexibility with multiple circuit switching options.
The device operates reliably over a wide temperature range from -40°C to 75°C, suitable for diverse climatic conditions. Its small, miniature form factor supports compact system designs, while a mechanical life of up to 10 million cycles ensures exceptional durability and long service life in demanding applications.
The micro switch complies with RoHS environmental standards to minimize hazardous substances, underpinning sustainable manufacturing practices. Dimensionally, it is designed to be compatible with other commonly used micro switches, facilitating easy replacements or integration into existing designs.
Lever actuator providing sensitive and precise switching. Solder terminal interface for reliable PCB connections. 3A current capacity suitable for a broad range of loads. SPDT contact configuration for multiple circuit paths.
Mechanical life of 10 million cycles for durability. Wide operational temperature range from -40°C to 75°C. RoHS compliant for environmental safety. Compact miniature design fits constrained spaces.
This micro switch finds application in industrial automation, consumer electronic devices, household appliances, and other commercial electrical equipment requiring reliable mechanical to electrical actuation.
Explore more Micro Switches and related components for precise control solutions in electronics and electrical fields at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch has a contact current rating of 3A, making it suitable for various applications.
It can handle AC voltages up to 250V and DC voltages up to 30V.
This micro switch operates reliably within a temperature range of -40°C to 75°C.
It features a lever actuator type for precise mechanical triggering.
It has a mechanical life expectancy of up to 10 million cycles, ensuring long service life.
The switch uses solder terminals, which are suitable for PCB mounting.
It has a Single Pole Double Throw (SPDT) contact configuration, providing multiple circuit options.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The operating force is 1.47 newtons, providing a dependable tactile response.
It is suitable for industrial automation, consumer electronics, household appliances, and other commercial electrical equipment.
While specific dimensions are not provided, it is designed to be compatible with other commonly used micro switches for easy integration.
This model belongs to the SAJ2 series by TE Connectivity.
