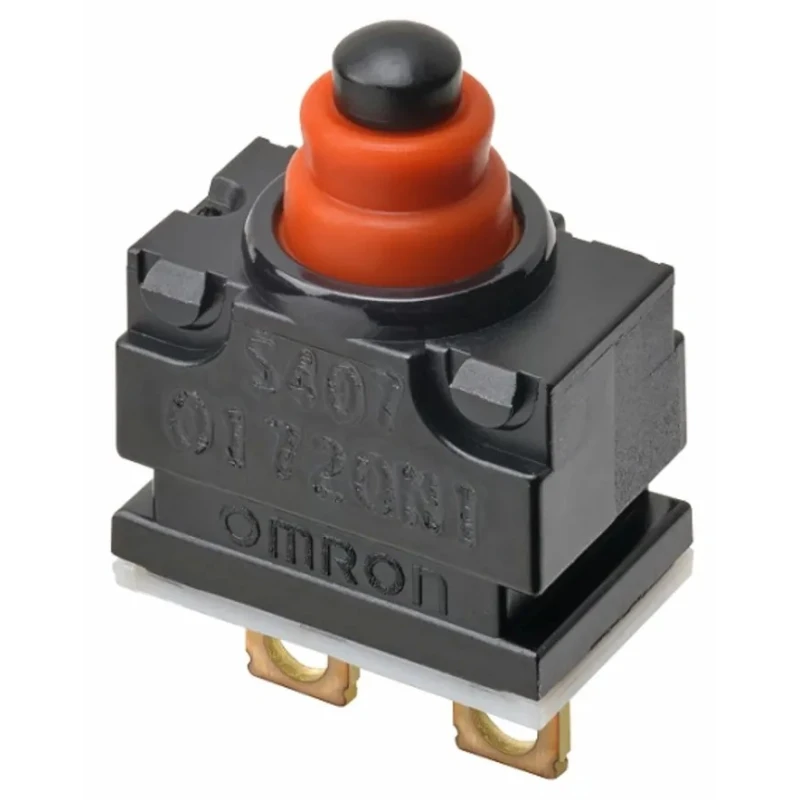

Omron Pin Plunger Subminiature Micro Switch Solder Terminal 1mA 13.5 V dc SPST-NC IP67 D2GW-A03F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-A03F |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- This subminiature switch has a pin plunger actuator for reliable operation.
- Designed with solder terminals for secure connectivity.
- Supports very low switching current down to 1mA and 13.5 V dc contact voltage.
- Configured as single-pole single-throw normally closed (SPST-NC) contact type.
- IP67 rated for dust-tight and waterproof protection.
- Operates reliably between -40°C and 85°C temperature range.
- Part of Omron's D2GW series known for compact size and quiet sliding operation.
- Complies with RoHS environmental standards.
Product Description
Omron D2GW-A03F is a durable, ultra subminiature micro switch featuring a pin plunger actuator type. It is engineered for applications requiring precise, reliable switching with very low current loads of 1mA at 13.5 V dc. This switch employs a single-pole single-throw normally closed (SPST-NC) contact configuration. Its solder terminal design ensures secure connections suitable for PCB assembly.
This model offers robust ingress protection rated at IP67, making it dust-tight and resistant to immersion in water, ideal for harsh environments and industrial applications. Operating over a temperature range from -40°C to 85°C, it maintains dependable operation under extreme conditions.
The switch’s symmetrical design simplifies integration into diverse products, while a sliding structure enables quiet, smooth actuation. Its compact sealed housing minimizes space usage, making it suitable for compact electronic devices, instrumentation, control panels, and automation systems.
Ultra subminiature size for space-saving installation. Pin plunger actuator suitable for versatile mechanical operation. Reliable SPST-NC contact system for normally closed circuits. High ingress protection with IP67 rating for dust and water resistance.
Wide operating temperature range from -40°C to 85°C. Solder terminals for easy PCB mounting and secure connections. Compliance with RoHS directives ensuring environmental safety. Compact symmetrical design simplifies product integration and supports various actuator types.
This micro switch is ideal for applications in industrial automation, instrumentation, automotive electronics, and other electrical equipment where space constraints and reliable micro-load switching are critical.
Discover more high-quality switches and electrical components in the Electronics & Electricals category at EnvMart for your professional requirements.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a single-pole single-throw normally closed (SPST-NC) contact configuration.
This model operates reliably within a temperature range of -40°C to 85°C.
It has an IP67 rating, making it dust-tight and resistant to immersion in water.
The switch is equipped with a pin plunger actuator for reliable operation.
The maximum contact voltage is 13.5 V dc.
It features solder terminals for secure connectivity suitable for PCB assembly.
It complies with RoHS environmental standards, ensuring safety and compliance.
This model supports very low switching currents down to 1mA.
This micro switch is ideal for applications in industrial automation, instrumentation, and automotive electronics.
The country of origin for this model is China.
The compact sealed housing minimizes space usage, making it suitable for compact electronic devices and control panels.
This model is part of Omron's D2GW series, known for its compact size and quiet sliding operation.
