Schneider Electric Acti9 Active iDT40 Series Residual Current Device 40A 1-Pole 30 mA Voltage Independent 230V ac A9TYA4640

Free Delivery in India | Lowest Global Shipping Charges

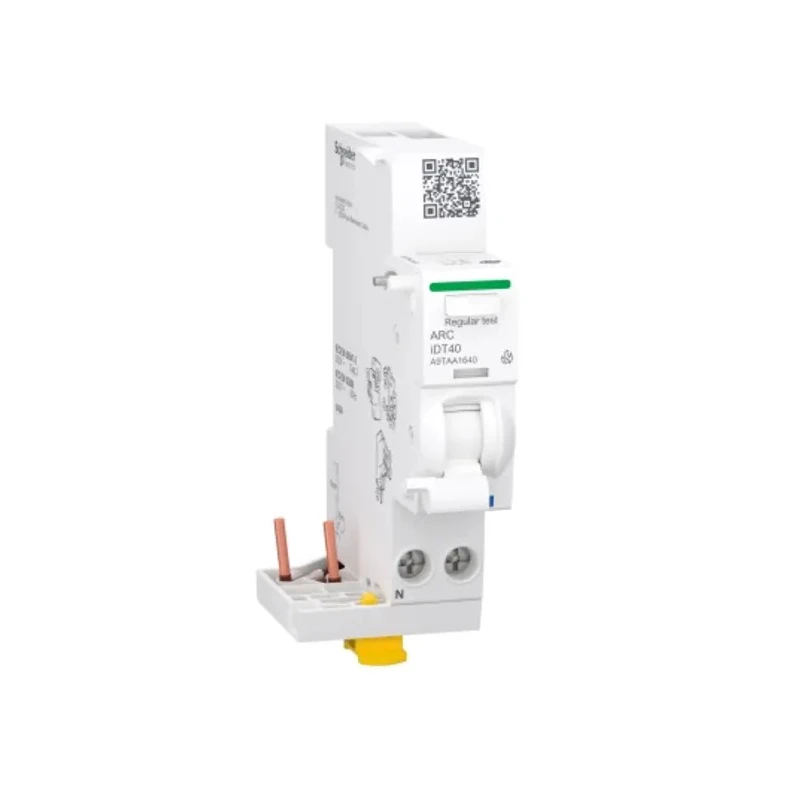

Schneider Electric Acti9 Active iDT40 Series Residual Current Device 40A 1-Pole 30 mA Voltage Independent 230V ac A9TYA4640

Name: Schneider Electric Acti9 Active iDT40 Series Residual Current Device 40A 1-Pole 30 mA Voltage Independent 230V ac A9TYA4640
Brand: Schneider Electric
SKU: 175989
Price: 784.88 USD
Availability: InStock



Category Residual Current Device Brand Schneider Electric Condition New

Specifications

Country of Origin	Spain
Voltage	Independent 230V ac RS Stock No
Range	Acti9 iDT40 AFDD
Brand	Schneider Electric
Height	91mm
Model	A9TYA4640
Depth	73mm
Width	36mm
Mount Type	DIN Rail
Current Rating	40A
Series	Acti9 Active iDT40
Number of Poles	1
Rated AC Voltage	230V ac
Tripping Characteristics	Voltage Independent
Trip Sensitivity	30mA
Earth Leakage Protection Type	A-SI

Key Features

Designed for DIN Rail mounting with compact dimensions of 91mm height, 36mm width, and 73mm depth.
Provides earth leakage protection type A-SI with a trip sensitivity of 30 mA for enhanced safety.
Complies with EN/IEC 61009-1, EN/IEC 61009-2-1, and EN/IEC 62606 standards for reliability and performance.
Features voltage independent tripping characteristics, ensuring consistent protection under various conditions.
Manufactured in Spain, ensuring high-quality European engineering standards.
Electrical durability of 10,000 cycles and ambient operation range from -25°C to 60°C.
Impulse withstand voltage rated at 4 kV, supporting demanding industrial and commercial installations.
Includes ON/OFF, fault trip, and LED arc fault diagnostic indicators for easy monitoring.

Product Description

Schneider Electric A9TYA4640 Residual Current Device (RCD) from the Acti9 Active iDT40 Series is a high-performance protective device designed for electrical installations requiring reliable earth leakage detection and interruption. This 40A rated, 1-Pole device provides sensitive protection with a 30 mA trip level, ensuring user safety by rapidly disconnecting faulty circuits.

The device operates independently of voltage variations at 230V ac and is suitable for DIN Rail mounting, enabling versatile integration into electrical panels. Its compact design, measuring 91mm height, 36mm width, and 73mm depth, fits efficiently in constrained spaces.

Compliant with international standards EN/IEC 61009-1, EN/IEC 61009-2-1, and EN/IEC 62606, this RCD ensures standardized safety and performance. The earth leakage protection type A-SI and voltage independent tripping characteristics allow it to respond reliably across a range of electrical environments.

Additional features include an electrical durability of 10,000 cycles and capability to operate in ambient temperatures from -25°C to 60°C, making it suitable for diverse industrial, commercial, and residential applications. An impulse withstand voltage of 4 kV ensures resilience against transient voltage spikes.

The device incorporates diagnostic LED indicators for ON/OFF status, fault trips, and arc fault detection, facilitating quick maintenance and fault analysis. Originating from Spain, Schneider Electric's quality manufacturing process guarantees robust and precise performance.

Designed for DIN Rail mounting with compact form factor for efficient panel installation. Provides reliable earth leakage protection with Trip Sensitivity of 30 mA. Complies with EN/IEC 61009 and 62606 standards for electrical safety.

Supports operation in ambient temperatures ranging from -25°C to 60°C with high electrical durability. Features LED diagnostics for fault trip and arc fault identification. Impulse withstand voltage rating of 4 kV for superior surge protection.

This Residual Current Device is ideal for electrical distribution systems in industrial, manufacturing, commercial, and residential environments where safety and compliance are critical. Browse more Schneider Electric Acti9 series products at EnvMart for comprehensive protection solutions.
