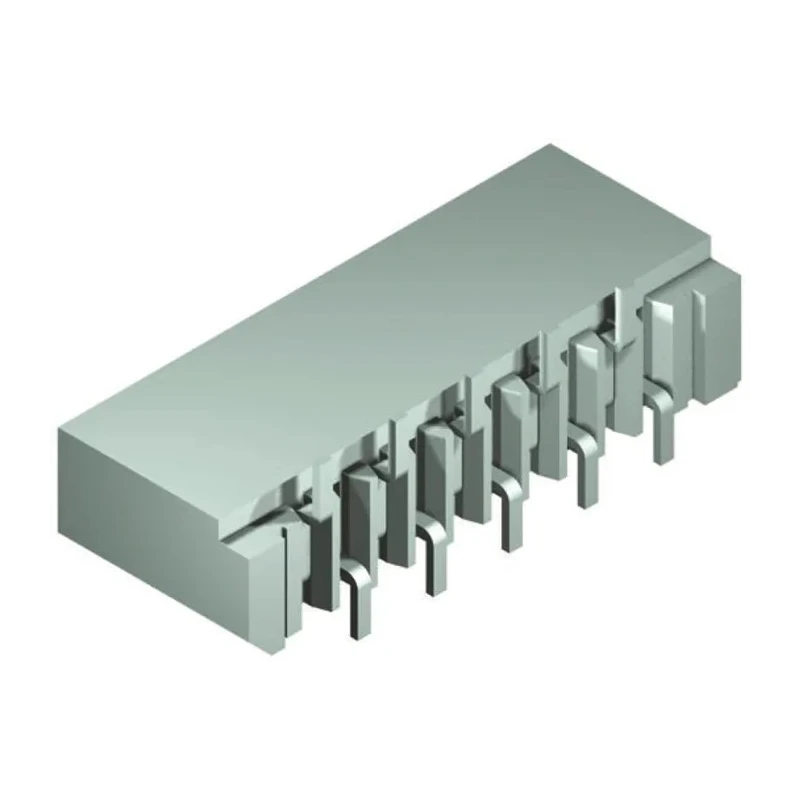

Molex 1 mm Pitch 10 Way Straight Female FPC Connector Solder 52808-1070
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- The connector features 10 contacts with 1 mm pitch and is female gender.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for excellent conductivity and durability.
- The housing material is polysulfone, providing good mechanical and thermal stability.
- It includes a locking mechanism and straight orientation with staggered contact design for secure connection and easy soldering.
- Supports a current of 500 mA and voltage of 125 V AC, suitable for various industrial electronics.
- Operating temperature range is from -20°C to 80°C, suitable for diverse environmental conditions.
- Features chamfered housings ensuring correct orientation and movable contacts that maintain electrical contact during cable movement.
- Ideal for automotive, consumer electronics, medical, and telecommunications applications such as GPS, digital cameras, and smartphones.
Product Description
Molex 52808-1070 is a 1 mm pitch, 10 way straight female FPC connector designed for surface mounting with solder termination. This non-ZIF connector provides reliable electrical connections with low insertion force and includes a locking mechanism to secure the cable.
The connector features phosphor bronze contacts plated with tin bismuth over nickel, housed in polysulfone material for enhanced durability and thermal resistance. Its staggered contact design facilitates easy soldering onto printed circuit boards, while the chamfered housing corner ensures proper mating orientation of the FPC cable.
Operating at a voltage of 125 V AC and a current rating of 500 mA, this connector operates reliably within temperatures ranging from -20°C to 80°C. The movable contacts allow for secure retention and continuous electrical contact even under cable movement.
This FPC connector is highly suitable for compact and complex wiring harness applications in diverse industries including automotive navigation and audio systems, consumer electronics like digital cameras and smartphones, medical devices such as patient monitors, and communications equipment including GPS systems and tablets.
The connector has 10 contacts with 1 mm pitch for high-density connection. Utilizes a non-ZIF insertion force mechanism with solder termination for robust mounting. Includes a locking mechanism and straight orientation to ensure reliable cable retention.
Contact plating of tin bismuth over nickel enhances corrosion resistance and conductivity. Polysulfone housing material provides mechanical strength and thermal stability. Suitable for current of 500 mA and voltage up to 125 V AC with operating temperature from -20°C to 80°C.
Applications include automotive, consumer electronics, medical, and telecommunications industries. The package is supplied on a reel, optimizing production efficiency. Explore the wide range of FPC Connectors available at EnvMart for your industrial and manufacturing needs.
