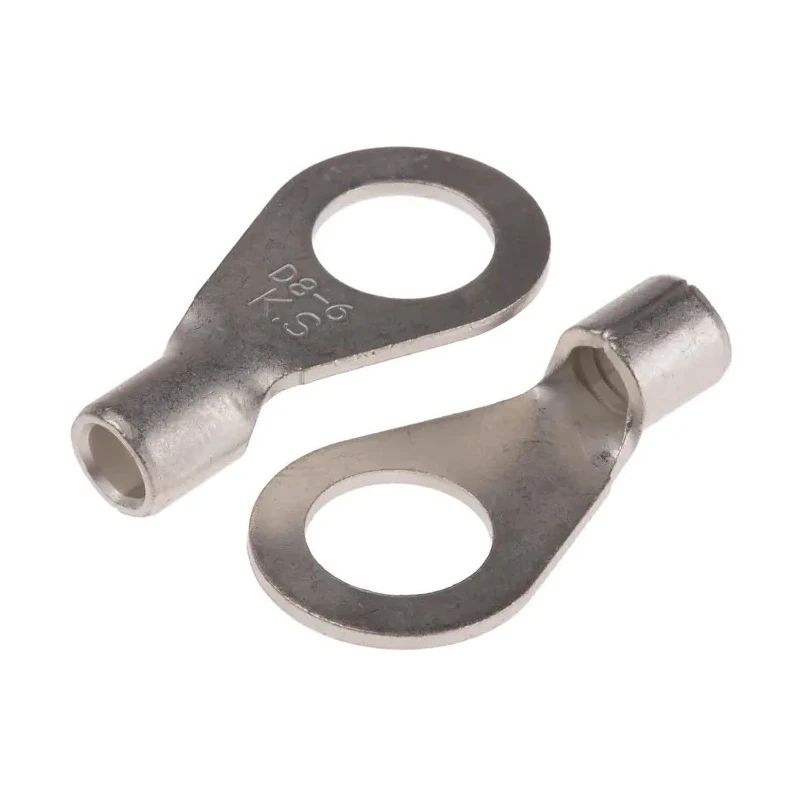

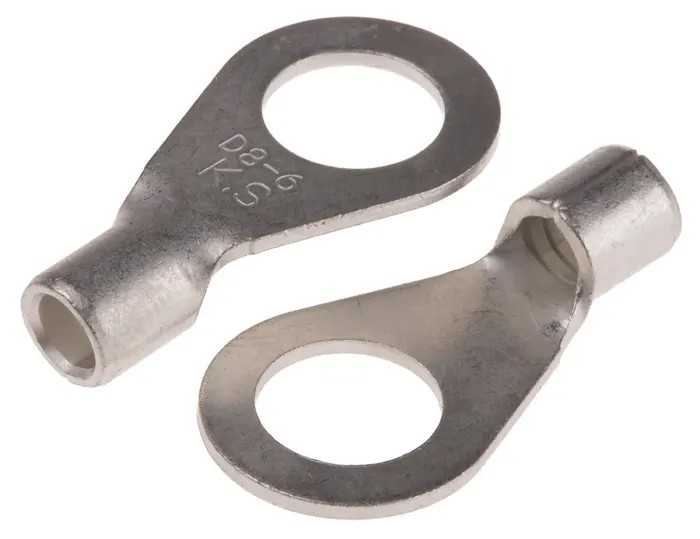

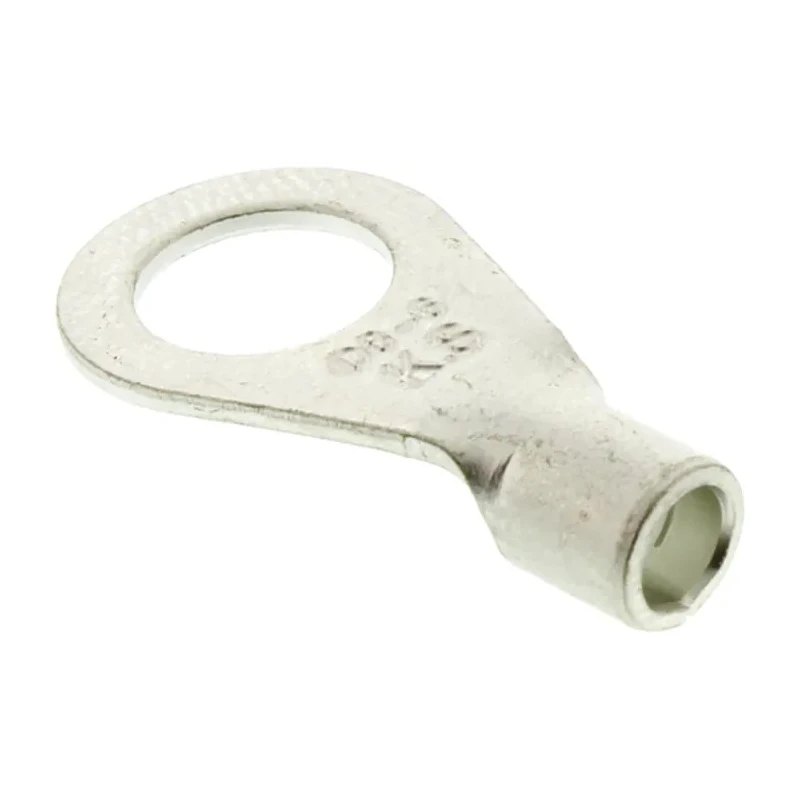

RS PRO Uninsulated Ring Terminal 8.4 mm Stud Size 12 AWG to 10 AWG Wire Size Grey 809-2268
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| THICKNESS | 1mm |
| Model | 809-2268 |
| Insulation | Uninsulated |
| Overall Length | 26mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 14mm |
| Inner Ring Diameter | 8.4mm |
| Stud Size | 8.4 mm |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- Constructed from high conductivity copper for excellent electrical performance.
- Uninsulated design allows for direct metal crimp connections.
- Features a tin-plated contact surface for corrosion resistance.
- Compatible with wire sizes 12 AWG (2.5 mm²) to 10 AWG (6 mm²).
- Overall length of 26 mm and 1 mm thickness provides structural integrity.
- Operates reliably between -40°C and 150°C temperature range.
- Suitable for electrical installations and cable connection applications.
Product Description
RS PRO 809-2268 uninsulated ring terminal is a high-quality electrical connector designed to terminate or connect wires without insulation. It is intended for use with 12 AWG to 10 AWG wire sizes and features a stud size of 8.4 mm, making it ideal for applications requiring reliable cable connections.
Manufactured from copper with a tin-plated contact surface and brazed seam, this ring terminal ensures maximum electrical conductivity and corrosion resistance. The grey-colored uninsulated ring terminal offers a robust and durable design with a 26 mm overall length and 1 mm thickness, suitable for industrial and commercial electrical uses.
This product complies with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and the Restriction of Hazardous Substances (RoHS) directive, ensuring both safety and environmental compliance. It is designed to operate in temperature extremes from -40°C to 150°C.
Due to its uninsulated nature, this Ring Terminal facilitates direct metal crimping, providing strong mechanical and electrical connections. Commonly used in electrical installations and cable connections, it is a versatile component for wire termination tasks across industrial, manufacturing, and electrical maintenance settings.
Constructed from copper for high conductivity. Tinned finish for improved corrosion resistance. Uninsulated design suited for crimping applications. Compatible with 12 AWG to 10 AWG wire sizes (2.5 mm² to 6 mm²). Durable 26 mm length and 1 mm thickness.
Meets ANSI/ESD S20.20:2021 and RoHS standards. Operates safely between -40°C and 150°C. Ideal for electrical installation and cable connections. Explore more high-quality RS PRO electrical connectors and wire terminals at EnvMart to meet diverse industrial and commercial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal is compatible with wire sizes ranging from 12 AWG (2.5 mm²) to 10 AWG (6 mm²).
The stud size for this model is 8.4 mm, making it suitable for various electrical connections.
It is constructed from high conductivity copper and features a tin-plated contact surface for improved corrosion resistance.
The overall length of this ring terminal is 26 mm, with a thickness of 1 mm and an inner ring diameter of 8.4 mm.
This model operates reliably between -40°C and 150°C, making it suitable for a variety of environments.
It complies with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and the Restriction of Hazardous Substances (RoHS) directive.
The ring terminal is grey in color, providing a neutral appearance for electrical installations.
The uninsulated design allows for direct metal crimp connections, facilitating strong mechanical and electrical connections.
The outer ring diameter of this model is 14 mm, which is relevant for compatibility with mounting hardware.
The thickness of this ring terminal is 1 mm, providing structural integrity for connections.
It is commonly used in electrical installations and cable connections across industrial, manufacturing, and electrical maintenance settings.
This product is manufactured in Taiwan, ensuring compliance with specified standards.
