Molex 1 mm Pitch 24 Way Right Angle Female FPC Connector, Solder Termination 52207-2460

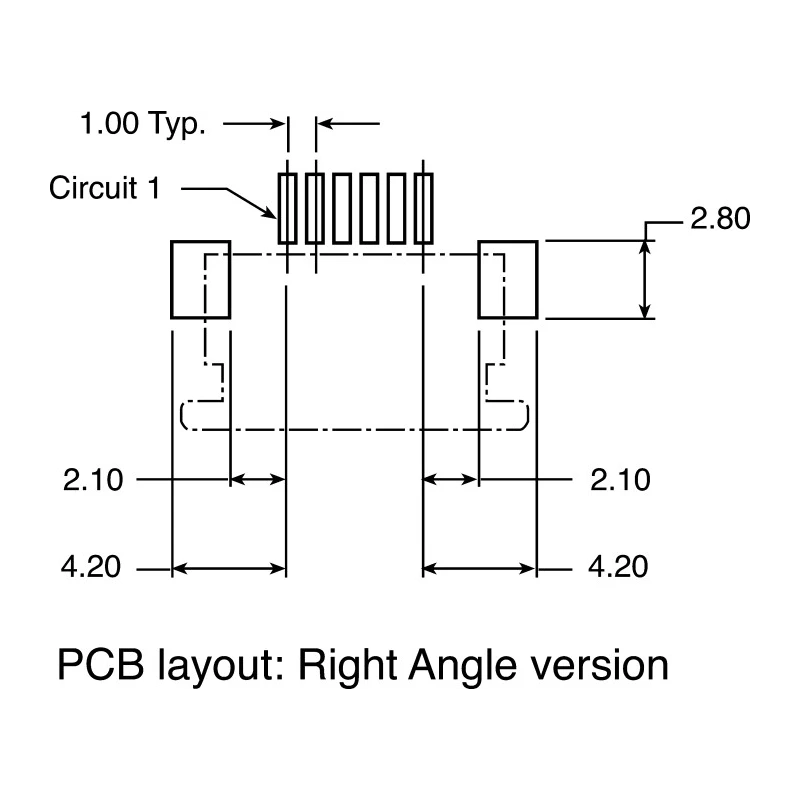

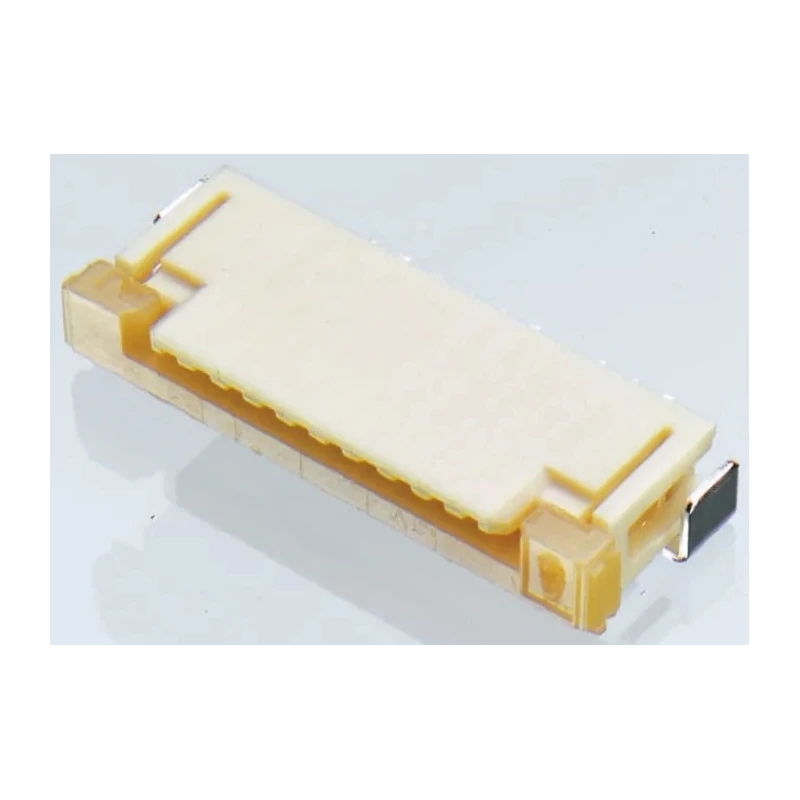

Molex 52207-2460 1 mm Pitch 24 Way Right Angle Female FPC Connector, designed for surface mount with solder termination, provides a reliable interconnection solution in electronics assemblies.

This FPC Connector features a compact 1 mm pitch spacing and 24 contacts, optimized for space-saving installations and secure electrical contact retention. Its right angle female design facilitates efficient PCB layout in space-constrained devices.

The connector utilizes phosphor bronze contacts plated with gold over nickel, ensuring excellent electrical conductivity and corrosion resistance. The slide-type actuator mechanism allows for zero insertion force (ZIF) while securing the flexible printed circuit firmly, enhancing connection reliability and allowing for repeat cycling with minimal wear.

The housing is made of durable nylon material, providing robust insulation and mechanical protection. This connector supports a current of 1 Amp and a voltage rating of 125 Volts, suitable for automotive, consumer electronics, datacommunications, medical devices, and mobile devices applications.

Operational temperature ranges from -30°C to 85°C accommodate varied industrial environments. The right angle surface mount configuration includes solder tabs that provide secure PCB retention and strain relief for solder tails, preventing damage and ensuring durability.

The locking mechanism further guarantees the integrity of the connection under mechanical stress. This connector is part of the Molex 52207 series, widely used in automotive navigation, digital cameras, home security systems, tablets, notebooks, patient monitors, GPS devices, smartphones, and tablets.

Features a 1 mm pitch with 24 contacts suitable for high-density applications. Right angle orientation with female connector gender ensures efficient PCB layout. Made with phosphor bronze contacts plated with gold over nickel for reliable conductivity.

Includes a slide type actuator for easy insertion and secure FPC connection. Constructed with nylon housing material for durability and insulation. Supports a current rating of 1 Amp and voltage rating of 125 Volts. Operates reliably between -30°C and 85°C for versatile industrial use.

Surface mount type with solder termination enhances PCB retention and strain relief. Locking mechanism incorporated to maintain secure connections during use.

This Molex connector provides an ideal solution for a wide range of industrial and commercial electronics applications requiring compact, secure, and reliable flexible PCB connections.
