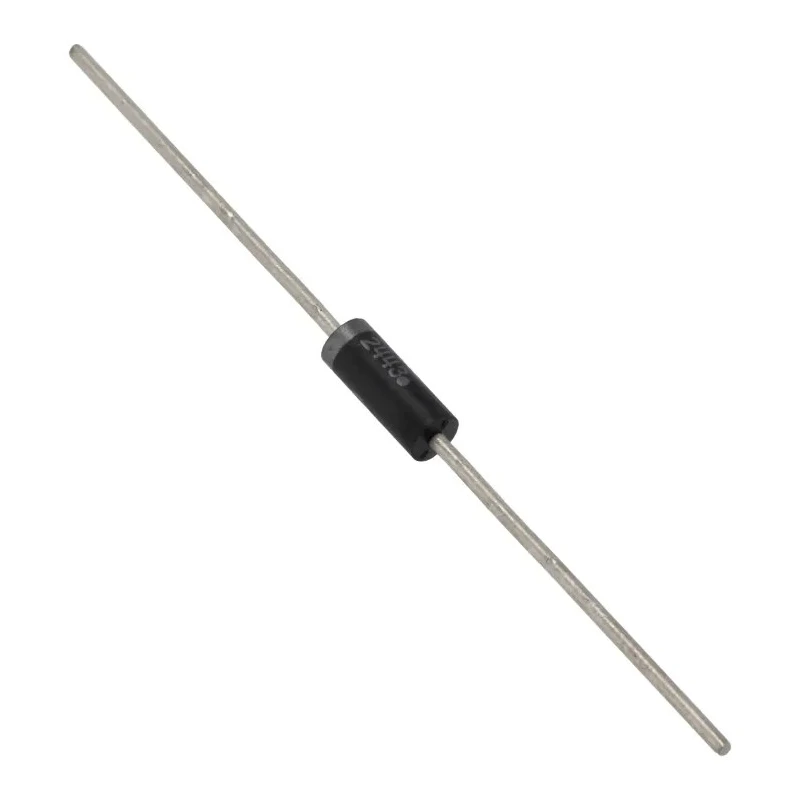

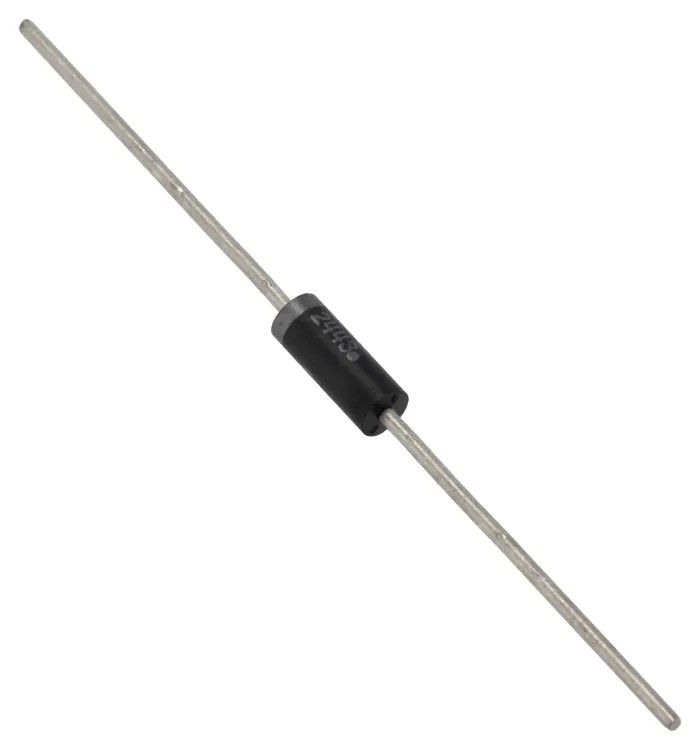

onsemi Zener Diode 25 V Nominal Voltage 5 W Power Dissipation Through Hole 2-Pin DO-15 1N5360BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5360BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 25V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |
Key Features
- Designed for voltage regulation applications with tight voltage tolerance.
- Features a molded, transfer-molded thermosetting plastic package for environmental protection.
- Axial leaded with 2 pins suitable for through-hole mounting.
- Maximum power dissipation of 5 watts for reliable performance.
- Test current is 50 mA, with a maximum zener impedance of 4 ohms.
- Operates in a temperature range from -65°C to 200°C.
- Maximum reverse leakage current is 500 nA ensuring minimal leakage losses.
- Compact dimensions with a length of 8.89 mm and height of 3.68 mm.
Product Description
onsemi 1N5360BG Zener Diode is a single-element, 25 V nominal voltage semiconductor device designed for precise voltage regulation. Encapsulated in a durable DO-15 through-hole package, this 5 W diode offers excellent reliability for industrial, commercial, and laboratory use.
The device features a thermosetting plastic molded package which is void-free and transfer-molded, ensuring protection in various common environmental conditions. Its axial leads are corrosion resistant and designed for easy soldering during circuit assembly.
This 2-pin device operates with a test current of 50 mA and maintains a maximum zener impedance of 4 ohms, providing stable voltage regulation within ±5% tolerance. It can operate in harsh temperature environments ranging from -65°C to 200°C without performance degradation.
The maximum reverse leakage current is limited to 500 nA, minimizing power loss in electronic circuits. Compact with a length of 8.89 mm and height of 3.68 mm, it is ideal for through-hole PCB mounting requirements.
Designed for industrial-grade voltage regulation applications. Encapsulated in a robust DO-15 package suitable for through-hole mount. Ensures stable operation with precise voltage tolerance and low leakage current. Can withstand wide operating temperature range from -65°C to 200°C.
Offers compact physical dimensions suitable for space-constrained assemblies. Axial leads provide reliable mechanical and electrical connections. Manufactured with quality materials for long-term durability. Commonly used in power supplies, voltage reference, and protection circuits.
Complies with standard semiconductor quality expectations. Package ensures protection against corrosive environments and mechanical stress.
This Zener Diode is widely applicable in semiconductor, electronics manufacturing, power management, and industrial automation sectors. With its combination of reliability, accuracy, and compact design, it is a key component for electronic circuit voltage stabilization.
Explore more onsemi components and advanced semiconductor devices at EnvMart for your industrial and commercial electronics needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal voltage of this Zener diode is 25 V.
The maximum power dissipation for the 1N5360BG is 5 W.
It operates within a temperature range from -65°C to 200°C.
The test current for this model is 50 mA.
The maximum zener impedance is 4 ohms.
It is encapsulated in a DO-15 through-hole package.
The diode has compact dimensions with a length of 8.89 mm and a height of 3.68 mm.
This model has a single diode configuration.
It is commonly used in power supplies, voltage reference, and protection circuits.
It features axial leads designed for easy soldering during circuit assembly.
The country of origin for this Zener diode is India.
