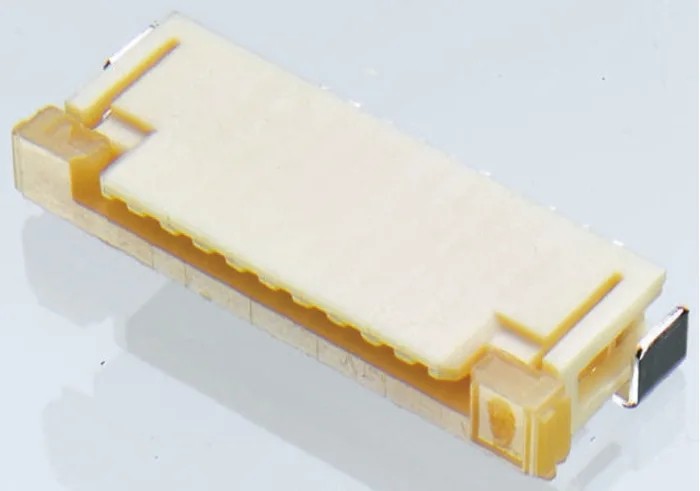

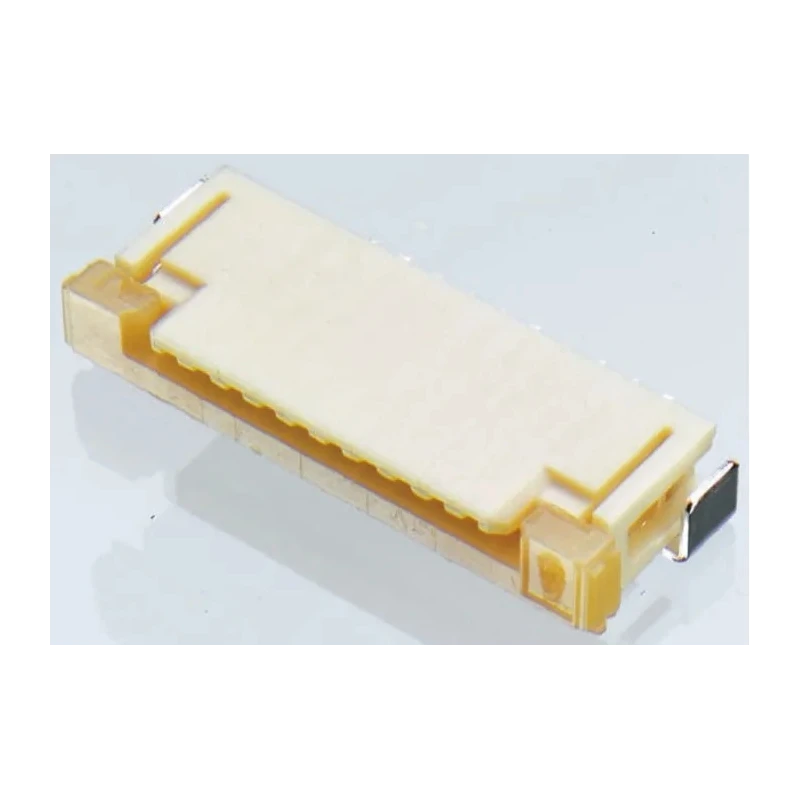

Molex 24 Way 1 mm Pitch Right Angle Female FPC Connector, Solder Termination 52207-2460

Molex 52207-2460 is a 24 Way Right Angle Female FPC (Flexible Printed Circuit) Connector featuring a 1 mm pitch and solder termination suitable for surface mount applications. Designed as part of Molex's 52207 series, this connector offers a space-saving solution ideal for tight packaging environments in industries such as automotive, consumer electronics, medical devices, and communications.

This connector incorporates a slide type actuator that ensures zero insertion force (ZIF) with easy FPC insertion and a secure mechanical connection. The contacts are made of phosphor bronze with a gold over nickel plating, delivering high conductivity and corrosion resistance, which ensures long operational life under repeated connection cycles.

The nylon housing provides excellent insulation and mechanical protection, coupled with locking mechanisms and solder tabs for strain relief and robust PCB retention. The connector supports a maximum current of 1 amp and voltage rating of 125 volts, suitable for many electronic circuit applications. Operating temperatures range from -30°C to 85°C, allowing use in diverse environments.

The right angle contact position facilitates optimized PCB layout by reducing vertical space usage. Its single-row contact arrangement and 24 contacts make it suitable for complex signal or power routing in compact electronic assemblies.

1 mm pitch enables precise contact alignment for FPC cables. Right angle female connector designed for SMT PCB mounting. Phosphor bronze contacts with gold over nickel plating for reliable electrical performance. Slide type actuator offers ease of use with zero insertion force.

Nylon housing ensures durability and electrical insulation. Supports operating temperatures from -30°C to 85°C. Solder termination with secure PCB retention via solder tabs. Locking mechanism guarantees connection stability.

Current rating of 1 amp and voltage rating of 125 volts provide broad application capability.

This connector is ideal for use in automotive navigation and audio devices, digital cameras, home security systems, tablet and notebook PCs, medical patient monitors, GPS units and smartphones. Its robust design and precision make it suitable for industrial, laboratory, medical, communications, and consumer electronics manufacturing sectors.
