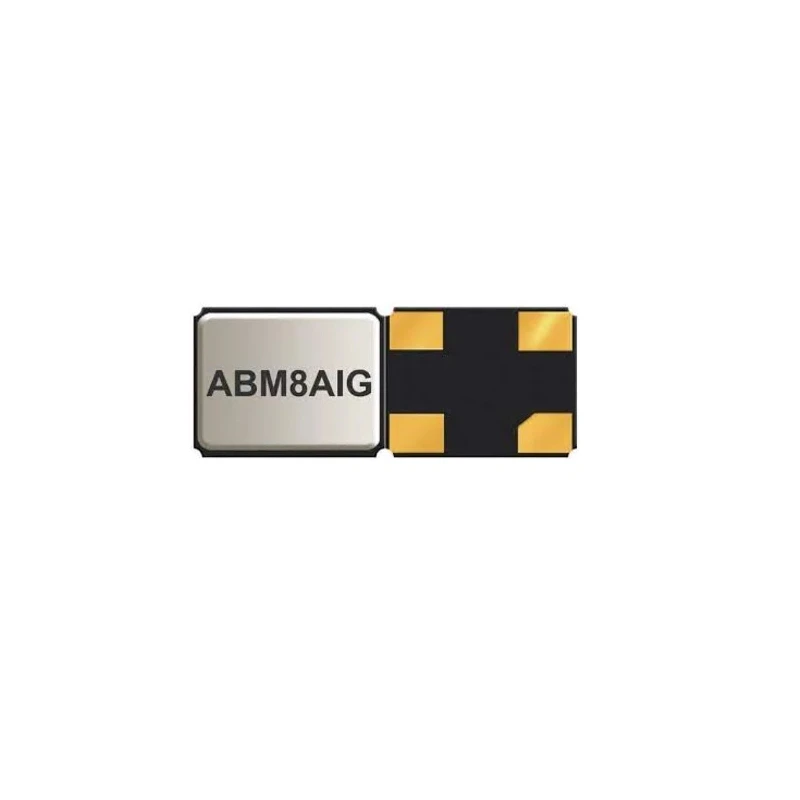

Abracon 24 MHz Surface Mount Ceramic Package 4-Pin Crystal ±50 ppm ABM8AIG-24.000MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-24.000MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 24MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Automotive and industrial grade ceramic base SMD crystal for reliable operation.
- Hermetically seam sealed ceramic package ensures durability and stability.
- Suitable for infotainment systems, GPS, navigation, ADAS, and LiDAR applications.
- Compliant with AEC-Q200 automotive standard and TS16949 production line certified.
- RoHS and RoHS II compliant and lead-free for environmentally safe use.
- Operating temperature range from -40°C to +85°C (grade 1 up to +125°C).
- Supports surface mount with tape and reel packaging for automated assembly.
- Precise frequency stability with ±50 ppm tolerance and 12 pF load capacitance.
Product Description
Abracon ABM8AIG-24.000MHZ-12-2Z-T3 is a 24 MHz surface mount crystal featuring a hermetically sealed ceramic package with 4 pins. Designed for high reliability, it offers a frequency tolerance and stability of ±50 ppm, making it suitable for demanding automotive and industrial applications.
This crystal is manufactured to automotive grade 1 specifications covering a temperature range from -40°C to +125°C, and it complies with AEC-Q200 standards to ensure quality and longevity in harsh environments. Applications include infotainment systems, GPS navigation, advanced driver assistance systems (ADAS), and LiDAR technologies.
The product comes in a compact ceramic package measuring 3.2 mm by 2.5 mm by 0.8 mm, with a series resistance of 50 Ω and a load capacitance of 12 pF. It uses surface mount technology allowing efficient automated PCB assembly and comes supplied in tape and reel packaging.
Additional benefits include RoHS and RoHS II compliance, ensuring the crystal is lead-free and environmentally responsible. The hermetically sealed design protects against moisture and contaminants, enhancing performance stability.
This crystal's precise parameters and robustness make it ideal for industrial, automotive, and commercial electronics requiring accurate timing and frequency control. Automotive-grade hermetically sealed ceramic package for durability.
Frequency tolerance and stability of ±50 ppm ensures consistent performance. Compact 4-pin surface mount design for space-efficient PCB layouts. Operates reliably from -40°C to +85°C with automotive grade options to +125°C.
RoHS compliant and lead-free for environmental safety. Tape and reel packaging supports automated manufacturing processes. Series resistance of 50 Ω suitable for precision oscillator circuits. Load capacitance of 12 pF tailored for standard oscillator requirements.
Ideal for automotive, industrial, GPS, navigation, ADAS, and LiDAR applications. Explore more Crystal Units and electronic components suited for precision timing across various industrial sectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal has a frequency stability of ±50 ppm, ensuring consistent performance in various applications.
It operates within a temperature range of -40°C to +85°C, with automotive grade options available up to +125°C.
The ceramic package measures 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
It is supplied in tape and reel packaging, which supports automated assembly processes.
The load capacitance is 12 pF, tailored for standard oscillator requirements.
Yes, it complies with the AEC-Q200 automotive standard, ensuring quality for automotive applications.
The series resistance is 50 Ω, suitable for precision oscillator circuits.
It is suitable for use in infotainment systems, GPS navigation, advanced driver assistance systems (ADAS), and LiDAR technologies.
This model is RoHS and RoHS II compliant, ensuring it is lead-free and environmentally safe.
It features a 4-pin configuration, designed for surface mount technology.
The maximum operating temperature is 85°C, with automotive grade options allowing operation up to +125°C.
The model number is ABM8AIG-24.000MHZ-12-2Z-T3, which identifies its specific characteristics and specifications.
