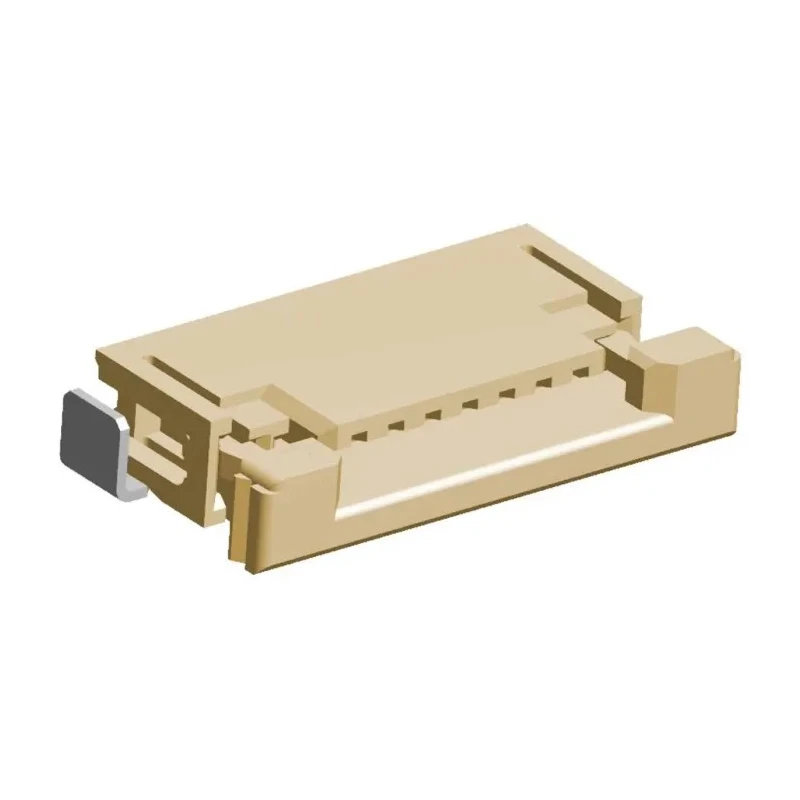

Molex 1 mm Pitch 7 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination 52207-0760
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52207 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Easy-On FFC/FPC connector subtype with slide type actuator ensures secure cable connection and alignment.
- Right angle orientation with top contact position aids space-saving mounting on PCB.
- Rated for 1 amp current and 125 volts operating voltage within -20°C to 85°C temperature range.
- Constructed using durable nylon housing and includes solder tabs for strain relief on PCB.
- Locking mechanism enhances retention and connector stability during operation.
- Ideal for automotive, consumer electronics, medical devices, datacommunications, and mobile phones.
Product Description
Molex 52207-0760 is a 7 Way Right Angle Female Zero Insertion Force (ZIF) FPC connector with a 1.00 mm pitch designed for surface mount PCB applications. This connector features a slide type actuator that provides an easy and secure connection experience while allowing for reliable signal transmission in tight packaging constraints.
The contacts are made from phosphor bronze with gold over nickel plating, ensuring excellent conductivity and long-term corrosion resistance. The right angle orientation with top-mounted contacts saves space and facilitates neat PCB layouts. The connector is equipped with solder tabs that provide strong retention on the PCB and strain relief for soldered tails, enhancing durability and mechanical stability.
Operating within -20°C to 85°C, and rated for 125V and 1A, this Molex connector offers robust electrical performance suitable for demanding industrial and commercial applications.
This connector series is widely used in automotive navigation and audio systems, digital imaging equipment, home security devices, tablet and notebook PCs, patient monitors, GPS units, smartphones, and other portable electronics.
Phosphor bronze contacts with gold over nickel plating ensure reliable electrical connectivity. Slide type actuator design facilitates easy insertion and secure locking of FPC cables. Right angle orientation with top contacts optimizes space utilization on PCBs.
Includes solder tabs for secure PCB retention and strain relief. Rated for 1 amp current and 125 volts operating voltage. Durable nylon housing provides mechanical strength and insulation. Wide operating temperature range of -20°C to 85°C suits varied environments.
Choose this Molex 52207-0760 FPC connector for high-quality, space-saving electrical connections in electronic manufacturing, automotive systems, telecommunications, and medical instrumentation. Explore the Electronics Components category on EnvMart for similar high-performance FPC Connectors and related items.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector is 1.00 mm.
The maximum operating temperature for the Molex 52207-0760 is 85°C.
This connector is rated for 1 amp current and 125 volts operating voltage.
The housing is made of durable nylon, and the contacts are constructed from phosphor bronze with gold over nickel plating.
The Molex 52207-0760 features a slide type actuator that ensures secure cable connection and alignment, enhancing retention during operation.
This connector has a right angle orientation with top-mounted contacts, which aids in space-saving mounting on PCBs.
The Molex 52207-0760 utilizes solder termination for secure connections.
This connector is suitable for applications in automotive systems, consumer electronics, medical devices, and telecommunications.
The Molex 52207-0760 has 7 contacts.
The minimum operating temperature for this model is -20°C.
Yes, it includes solder tabs that provide strain relief on the PCB, enhancing mechanical stability.
The contact gender of the Molex 52207-0760 is female.
