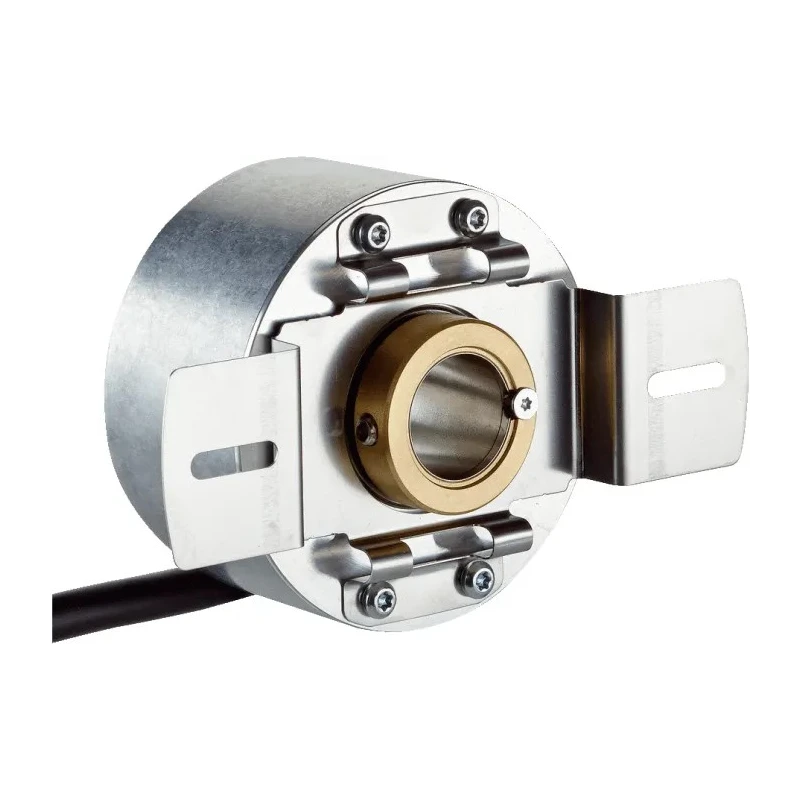

SICK DBS60 Core Series Incremental Encoder 27V 1000 PPR HTL Signal Hollow Shaft 8 mm DBS60

The SICK DBS60 Core Series Incremental Encoder model DBS60 is a robust, high-performance incremental encoder suitable for precise measurement of position, speed, and distance in industrial and automation applications. Operating at a supply voltage of 27V, this encoder features a hollow shaft design with an 8 mm diameter, enabling secure mounting on shafts without compromising space.

The encoder's construction includes a rugged housing with a diameter of 58 mm and installation depth of 41.8 mm, providing a compact footprint ideal for constrained spaces. It is IP65 rated for dust and water resistance, making it suitable for demanding environments found in manufacturing, logistics, and factory automation sectors.

With a maximum rotational speed of 9000 rpm and a switching frequency of 300 kHz, the DBS60 supports high-speed applications with reliable HTL incremental output signals. The encoder supports 1000 pulses per revolution, delivering accurate and repeatable feedback for motion control systems.

The device is designed for ease of integration with cable terminal connection ensuring flexible wiring options. It meets international standards EN 61000-6-2 and EN 61000-6-3, ensuring electromagnetic compatibility and operational reliability in various industrial settings.

Applications for the DBS60 Core Series Incremental Encoder include asynchronous motor control, elevator speed and position monitoring, packaging machine automation, warehousing conveyor speed measurement, board height detection, transfer system positioning, and elevator acceleration control, among others. This encoder is ideal for factory automation and logistics applications that demand dependable and precise encoder feedback.

Robust design for demanding industrial environments. Hollow shaft mount with 8 mm diameter for easy shaft integration. High-speed capability with 9000 rpm maximum revolutions. High switching frequency of 300 kHz for precise signal output.

IP65 protection rating, suitable for dusty and moist conditions. Compliant with EN electromagnetic compatibility standards. Wide operating temperature range from -20°C to 85°C. Cable terminal connection for flexible installation.

1000 pulses per revolution for accurate measurement. Compact housing dimensions for space-saving installation.

The SICK DBS60 Core Series Incremental Encoder is designed for integration into various industrial, manufacturing, and logistic applications, delivering precise and reliable feedback essential for motion control and automation. It combines advanced technology with rugged construction for optimized performance and longevity.
