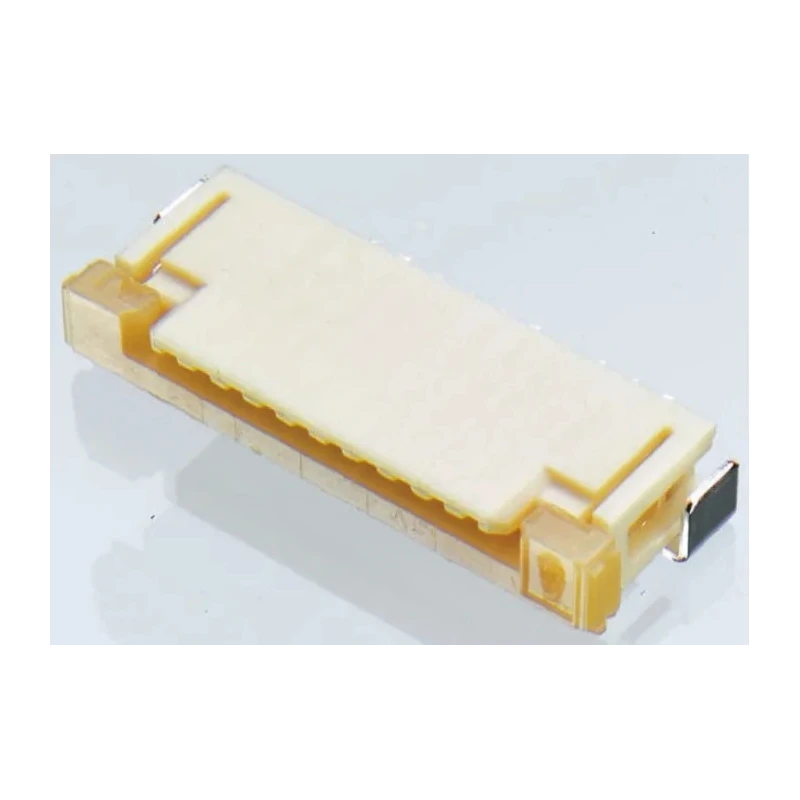

Molex 1 mm Pitch 8 Way Right Angle Female FPC Connector, Solder 52207-0860

Molex 52207-0860 is a 1 mm pitch, 8 way right angle female FPC connector with solder termination designed for robust electronic connections in compact spaces.

This surface mount connector features phosphor bronze contacts plated with gold over nickel ensuring excellent electrical performance and corrosion resistance. The nylon housing provides mechanical strength and stability.

Equipped with a slide type actuator locking mechanism, this Easy-On connector allows for zero insertion force (ZIF) during cable insertion, minimizing wear and ensuring secure retention of flexible printed circuits (FPCs).

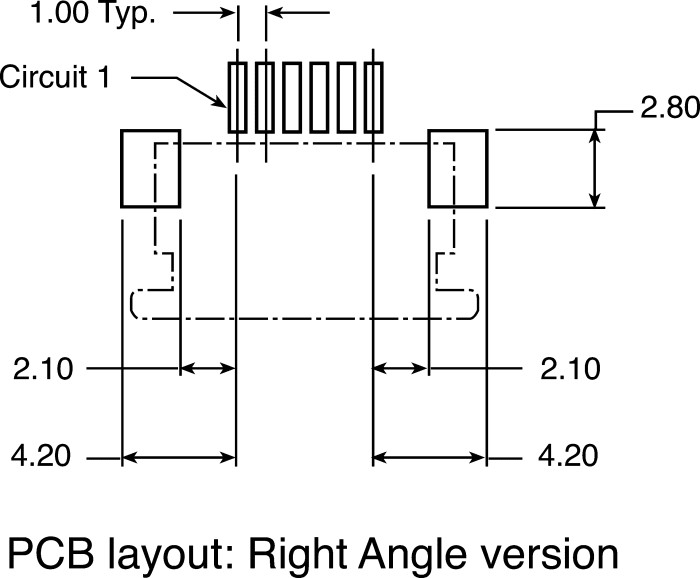

Operating at a current rating of 1A and voltage of 125V, it supports a temperature range from -20°C to 85°C, making it suitable for a wide range of environments. The right angle orientation with top contact position facilitates space-saving PCB layouts, and solder tabs provide mechanical strain relief and secure PCB retention.

This connector series is widely used in various industrial sectors including automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitors, GPS devices, smartphones, and other mobile devices.

Space-saving design ideal for compact electronic packaging. Phosphor bronze contacts with gold over nickel plating for durability. Slide type actuator enables easy and secure FPC connection. Operating voltage of 125V and current rating of 1A.

Durable nylon housing for mechanical stability. Right angle orientation with solder termination for PCB surface mount. Locking mechanism ensures reliable electrical contact under mechanical stress. Suitable for automotive, consumer electronics, medical, and communications applications.
