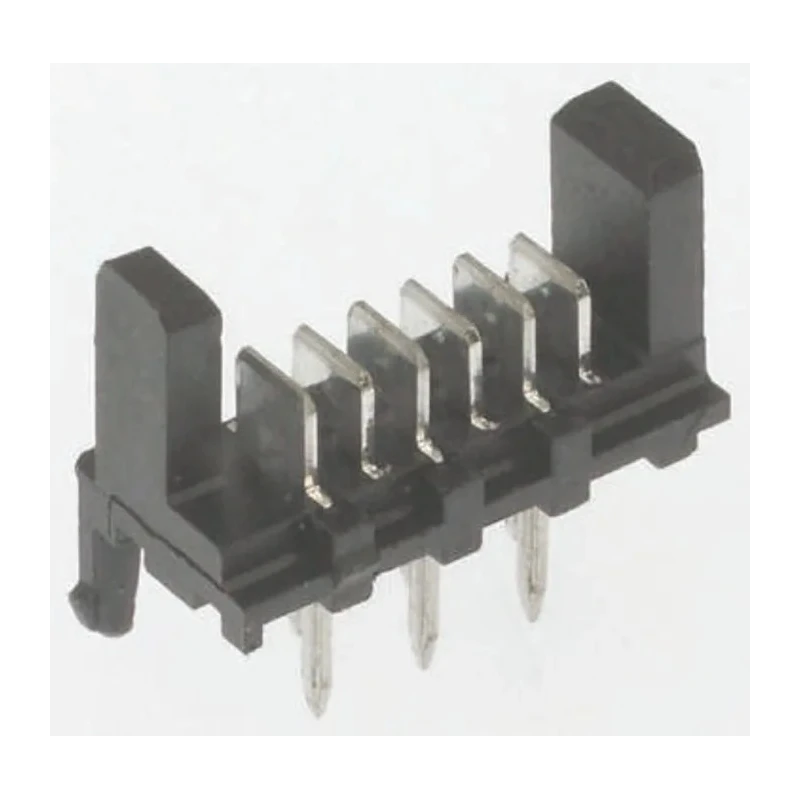

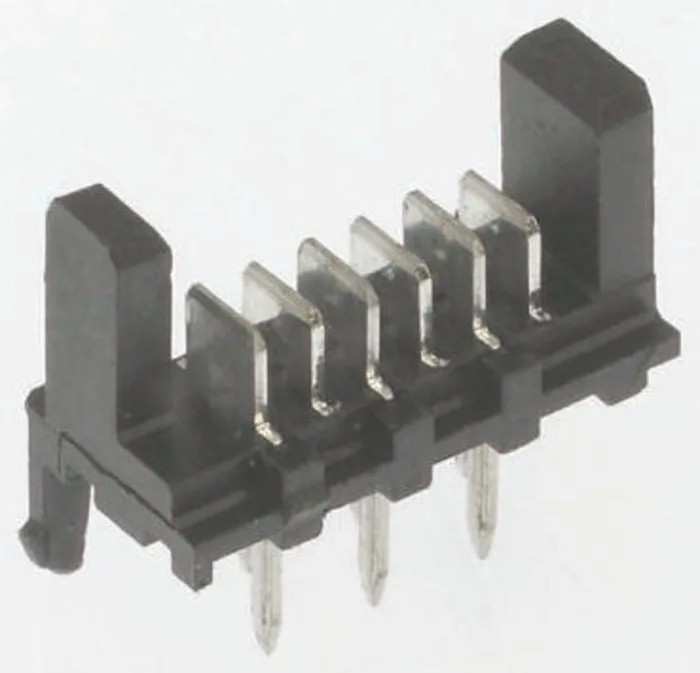

Molex 16-Way IDC Connector Male for Surface Mount, 1 Row, 1.27mm Pitch, 1.2A Current, Gold over Nickel Contact 90814-3816
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250, 250V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.2A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Picoflex |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| 90814-00xx | SMT, Tin, with PCB pegs |
| 90814-06xx | SMT, Tin, no PCB pegs |
| 90814-07xx | SMT, Tin, no PCB pegs |
| 90814-08xx | SMT, Tin, with PCB pegs |
| 90814-09xx | SMT, Tin, with PCB pegs |
| 90814-38xx | SMT, Gold flash, with PCB pegs |
| 90814-39xx | SMT, Gold flash, with PCB pegs |
| 90325-00xx | Through hole, Tin, with PCB pegs |
| 90325-90xx | Through hole, Tin, with PCB pegs |
| 93405-05xx | Reverse footprint, SMT, Tin, no PCB pegs |
Key Features
- Features 16 contact points arranged in a single straight row for compact installation.
- Supports a maximum current of 1.2 amps and operates up to 250V AC voltage.
- Contacts plated with gold over nickel to ensure corrosion resistance and optimal conductivity.
- Constructed with brass contacts and housed in nylon for mechanical strength and heat resistance.
- Designed for surface mount applications with a 1.27 mm pitch and IDC termination type.
- Operates reliably in temperatures ranging from -40°C to 105°C, suitable for demanding environments.
- Unshrouded male connector configured with friction lock and polarization features for secure mating.
- Ideal for automotive and consumer electronics requiring compact, vibration-resistant connectors.
Product Description
Molex 90814-3816 16-Way IDC Connector Male for Surface Mount, 1 Row offers a robust solution for high-density electronic connections in industrial, automotive, and consumer electronics applications. Featuring 16 contacts in a single row with a precise 1.27 mm pitch, this connector supports currents up to 1.2A and voltages up to 250V AC.
Its brass contacts are plated with gold over nickel to provide excellent electrical performance and resistance to corrosion, while the nylon housing ensures durability and tolerance to operating temperatures ranging from -40°C to 105°C. The unshrouded male IDC Connector is designed for surface mounting and termination via insulation displacement connection (IDC), simplifying installation and improving reliability.
The Picoflex Series design prioritizes compactness with a low profile and integral features such as friction lock and polarization to prevent connection errors. Its mechanical design provides resistance to vibration and shock, making it suitable for automotive electronics and complex consumer devices where space is at a premium.
This connector range is commonly used in environments requiring secure, reliable wire-to-board connections with reduced assembly time. Compact 1.27mm pitch, 16 contacts in one row. Gold over nickel plated brass contacts for durability.
Nylon housing for mechanical robustness and thermal stability. Supports 1.2A current and 250V AC voltage ratings. Operating temperature range from -40°C to 105°C. Surface-mounted IDC termination with friction lock and polarization.
Ideal for automotive, consumer electronics, and industrial applications. Low profile design saves space and enhances reliability. Part of the Picoflex series for wire-to-board connections. Explore Molex connectors and related electronics components in the Electronics & Electricals category at EnvMart for reliable, high-quality connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 16-Way IDC Connector supports a maximum current of 1.2A.
It operates at a maximum voltage of 250V AC.
The contacts are made of brass and are plated with gold over nickel, while the housing is constructed from nylon.
This model features a pitch size of 1.27mm.
It operates reliably in temperatures ranging from -40°C to 105°C.
Yes, it is designed for surface mount applications with an IDC termination type.
The Molex 16-Way IDC Connector has 16 contact points arranged in a single row.
It includes friction lock and polarization features to prevent connection errors.
This connector is a male connector.
It is ideal for automotive and consumer electronics that require compact, vibration-resistant connectors.
The connector has a straight orientation.
The country of origin for this connector is India.
