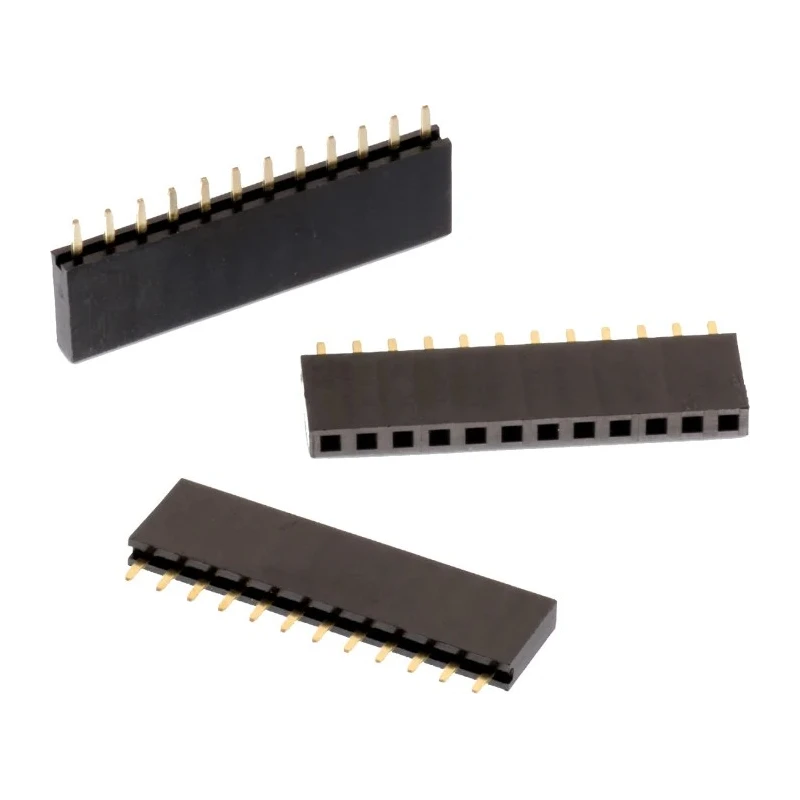

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Socket, 18-Contact, 1 Row, 2.54 mm Pitch, Solder, 500V 61301811821

Wurth Elektronik 61301811821 WR-PHD Series Straight Through Hole PCB Socket offers a high-quality solution for board-to-board connections in various electronic applications. Designed with precision, this socket features 18 contacts organized in a single row with a standard 2.54 mm pitch, allowing straightforward integration into PCB layouts.

Constructed from copper alloy with gold plating, the contacts deliver both excellent electrical conductivity and long-term reliability. The socket is capable of handling up to 3A current and 500V voltage, making it suitable for demanding circuit conditions. With solder termination and straight orientation, installation is simple and secure, supporting efficient PCB manufacturing processes.

Provides reliable straight through hole mounting on PCB boards. Features 18 copper alloy contacts with gold plating for optimal conductivity. Supports up to 3A current and 500V voltage for robust board-to-board connections.

Suitable for single row configurations with a 2.54 mm pitch. Operates within a wide temperature range of -40°C to 105°C. Termination via solder for secure PCB attachment. Compliant with RoHS standards for environmental safety.

Engineered for frequent mating, rated for 500 cycles. Country of origin: Taiwan, Province Of China.

The WR-PHD series is UL approved (E323964) and engineered for durability, with up to 500 mating cycles. Its RoHS compliance ensures environmental responsibility, and the product’s robust temperature tolerance enables use from -40°C to 105°C. Applications include industrial controls, instrumentation, consumer electronics, and laboratory equipment.

This PCB socket is part of Wurth Elektronik's renowned WR-PHD series, trusted for quality and performance in electronics manufacturing. Its straight through hole design facilitates effective integration in mechanical assemblies and supports multiple rework cycles.

Ideal for industrial, laboratory, commercial, and electronic manufacturing environments, the socket’s board-to-board system and secure solder mount make it essential for reliable PCB connectivity. Browse more PCB Sockets or explore Wurth Elektronik products in the Electronics & Electricals category on EnvMart.
