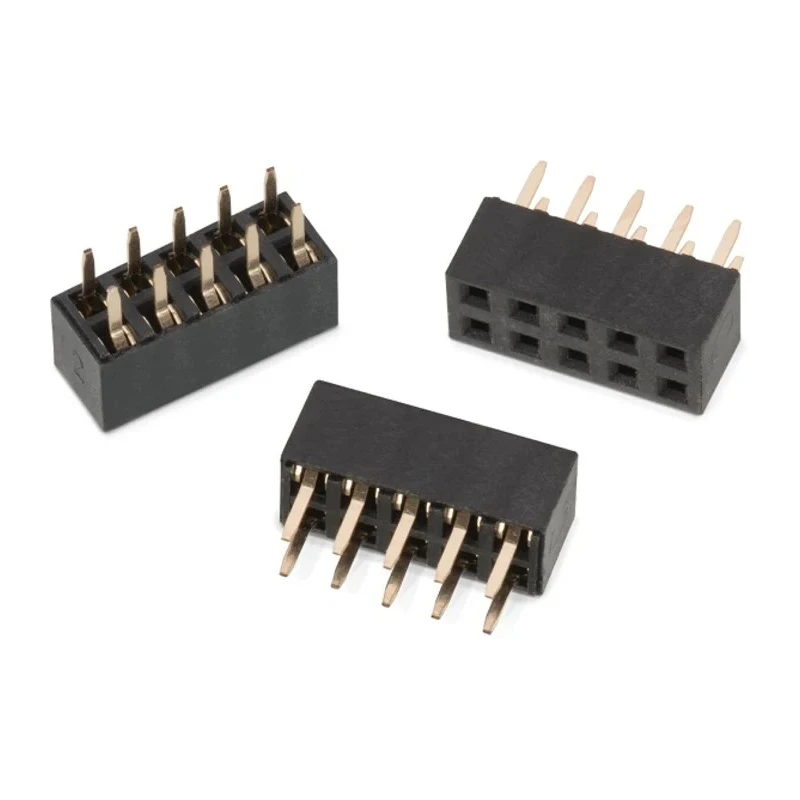

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 2A, 200V, Solder 62001021821

Wurth Elektronik 62001021821 WR-PHD Series Straight Through Hole PCB Socket is a robust connector solution designed for electronic circuit boards requiring high reliability and precision. This socket features 10 female contacts arranged in 2 rows with a 2 mm pitch, perfect for through-hole mounting techniques.

The housing is made from polyamide 9T (PA9T), a high-performance material offering excellent electrical insulation and mechanical strength. The contacts are manufactured from copper alloy and plated with gold to provide superior conductivity and resistance to corrosion, thereby ensuring signal integrity in demanding applications.

This PCB socket supports a current rating of 2 amperes and a voltage rating of 200 volts, making it suitable for a wide range of electronic devices and modules. It operates reliably within a temperature range from -40°C up to 105°C, allowing usage in various industrial, laboratory, and commercial environments.

The connector meets stringent standards including DIN ISO 2768, DIN EN 61760-2, and is UL approved under E323964. It has a rated durability of 500 mating cycles, indicating its capability to endure repeated connection cycles without performance degradation. Additionally, it complies with RoHS and REACh regulations, confirming its environmental safety and minimization of hazardous substances.

This product is manufactured in China and designed to facilitate easy and secure solder termination for PCB connections. Its straight orientation allows for efficient PCB layout and assembly.

Features a straight through-hole design for reliable circuit board connections. Constructed with polyamide 9T housing material ensuring durable insulation. Gold-plated copper alloy female contacts provide optimal conductivity and corrosion resistance.

Supports up to 2A current and 200V voltage, suitable for standard electronic applications. Rated for operating temperatures from -40°C to 105°C for harsh environment durability. Complies with international standards including DIN ISO 2768 and UL Approval E323964.

Durability validated for 500 mating cycles to ensure long-term reliability. RoHS and REACh compliant, meeting environmental and safety regulations.

This Wurth Elektronik PCB Socket is ideal for use in industrial electronics, manufacturing equipment, telecommunications, and other applications requiring reliable through-hole PCB interconnection solutions. Explore further components and connectors in the Electronics Components category on EnvMart.
