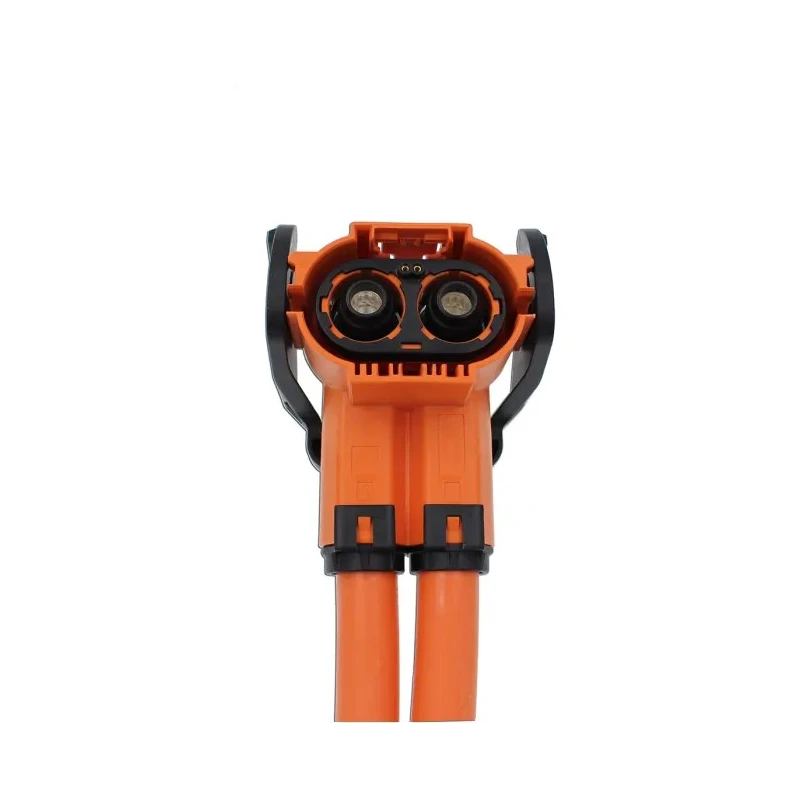

Amphenol Industrial HVSL800 Type EV Electric Vehicle Connector Female 180A 1000V Crimp Termination

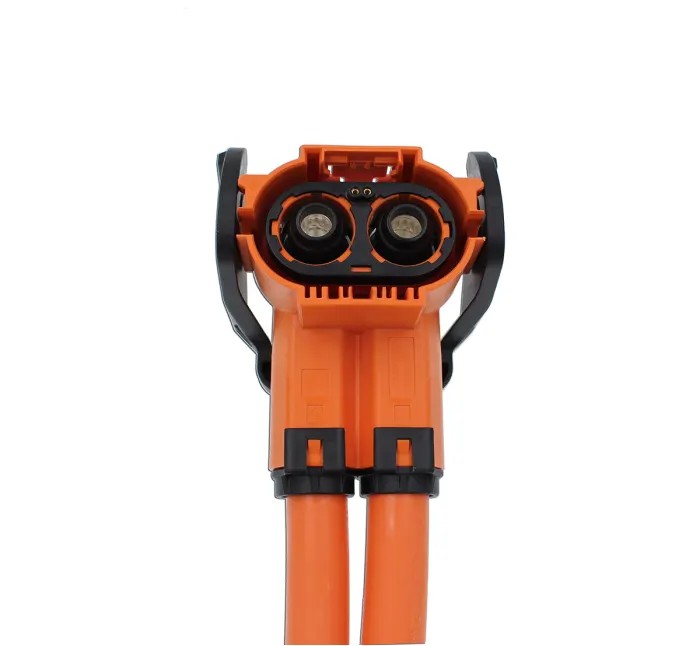

Amphenol Industrial HVSL800 Type EV Electric Vehicle Connector Female HVSL800082A135 is engineered for various electric vehicle (xEV) applications including batteries, inverters, junction boxes, and power distribution systems. It offers a high current carrying capacity of up to 180A at an operating voltage of 1000V, making it suitable for demanding power delivery tasks in automotive and industrial environments.

The connector features a robust thermoplastic housing paired with copper alloy contacts that are silver plated to ensure reliable electrical performance and corrosion resistance. Its right angle orientation optimizes cable management in tight spaces. The design includes integrated internal High Voltage Interlock Loop (HVIL) for enhanced user safety.

Rated to IP69K and IP67 standards, the connector ensures excellent ingress protection against water and dust, suitable for harsh environments. The connector supports wire sizes around 35 mm² with crimp termination and includes a male contact gender with female connector gender to suit system requirements.

Operating reliably over a temperature range from -40°C to 125°C, this connector meets EN 60664-1 standards and is classified as a Type A key to prevent incorrect mating. The high durability, along with multiple coding positions and touch-proof design, makes it a versatile choice for high-power electric vehicle connections.

The bright orange color and cable mount type allow easy identification and installation within power connector systems. This product is categorized as a renewable energy solution in line with sustainability goals.

Current rating up to 180 amps for high power applications. Operating voltage of 1000 volts suitable for electric vehicles. Right angle orientation for convenient cable routing. Thermoplastic housing with copper alloy contacts plated with silver for durability.

IP69K and IP67 rated for superior water and dust resistance. Compatible with 35 mm² wire size with crimp termination. Operating temperature range from -40°C to 125°C. Incorporates integrated internal HVIL for enhanced safety.

Available in orange color with Type A keying to prevent misconnection. Dimensions: Height 94.6 mm, Width 80.9 mm, Depth 59.7 mm.

Amphenol Industrial EV connectors such as this model are widely used in industrial, automotive, manufacturing, and electric vehicle industries. Browse EnvMart for more industrial-grade power connectors and EV Connector solutions from trusted manufacturers.
