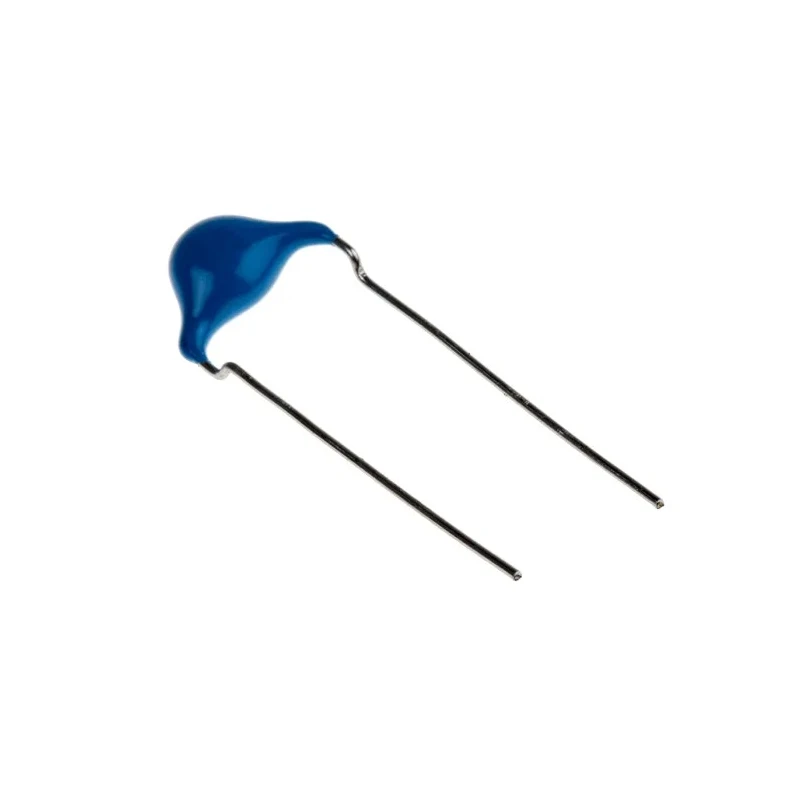

Murata Single Layer Ceramic Capacitor 100 pF 1.5 kV dc, 500 V ac ±10% Tolerance B Dielectric, DE1 Series DE1B3RA101KA4BQ01F

Free Delivery in India | Lowest Global Shipping Charges

Murata Single Layer Ceramic Capacitor 100 pF 1.5 kV dc, 500 V ac ±10% Tolerance B Dielectric, DE1 Series DE1B3RA101KA4BQ01F

Name: Murata Single Layer Ceramic Capacitor 100 pF 1.5 kV dc, 500 V ac ±10% Tolerance B Dielectric, DE1 Series DE1B3RA101KA4BQ01F
Brand: Murata
SKU: 151112
Price: 0.28 USD
Availability: InStock



Category Single Layer Ceramic Capacitors Brand Murata Condition New

Specifications

Country of Origin	Thailand
Voltage	1.5, 500kV dc
Diameter	6mm
Brand	Murata
Model	DE1B3RA101KA4BQ01F
Packaging	Bulk
Width	5mm
Mount Type	Through Hole
Series	DE1
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	100pF
Minimum Operating Temperature	-40°C
Terminal type	Axial
Dissipation Factor	2.5%
Standards/Approvals	RoHS, REACH
Pin Count	2
Dielectric	B

Key Features

Designed for through hole axial mounting applications.
Offers a maximum operating temperature of 125 °C for robust durability.
Constructed with B dielectric material for enhanced reliability.
Pin count of 2 and 5 mm width with a 6 mm diameter ensures compact size.
Complies with RoHS and REACH standards ensuring environmental safety.
Suitable for high voltage electronic circuits requiring 1.5 kV dc and 500 V ac capability.
Dissipation factor of 2.5% contributes to efficient energy handling.
Minimum operating temperature down to -40 °C enables use in harsh environments.

Product Description

Murata DE1B3RA101KA4BQ01F is a single layer ceramic capacitor engineered for high voltage applications requiring a capacitance of 100 pF combined with a maximum voltage rating of 1.5 kV dc and 500 V ac. This capacitor employs a B dielectric that provides excellent stability and reliability in various electronic designs.

Its through hole axial mount configuration with 2 pins allows secure and stable connection in printed circuit boards, making it suitable for industrial, laboratory, and manufacturing electronics assemblies. The device operates reliably within a temperature range of -40 °C to 125 °C, accommodating demanding operating environments.

With a compact form factor of 5 mm width and 6 mm diameter, this capacitor fits tight spaces without compromising performance. It features a dissipation factor of 2.5%, contributing to minimized energy loss during high frequency operation.

Compliant with RoHS and REACH environmental standards, this component is an ideal choice for eco-conscious electronic manufacturing. Its packaging in bulk quantities supports high volume production and assembly lines.

Designed for through hole axial mounting applications. B dielectric material ensures excellent performance stability. Rated for both 1.5 kV dc and 500 V ac voltages. Wide temperature operating range from -40 °C to 125 °C.

Compact size with 5 mm width and 6 mm diameter. Dissipation factor at 2.5% for efficient energy use. Compliant with RoHS and REACH standards. Packaged in bulk for manufacturing scalability.

This Murata single layer ceramic capacitor is widely used in electronics manufacturing, test and measurement equipment, industrial controls, and power supply filtering circuits. Its stable electrical characteristics make it invaluable for reliable circuit operation in power and signal conditioning applications.
