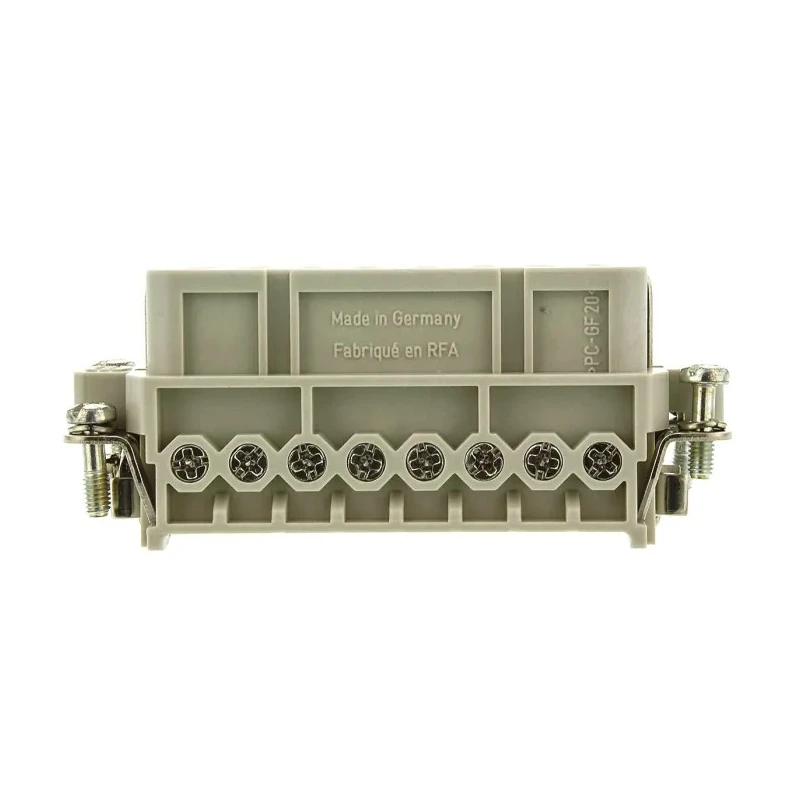

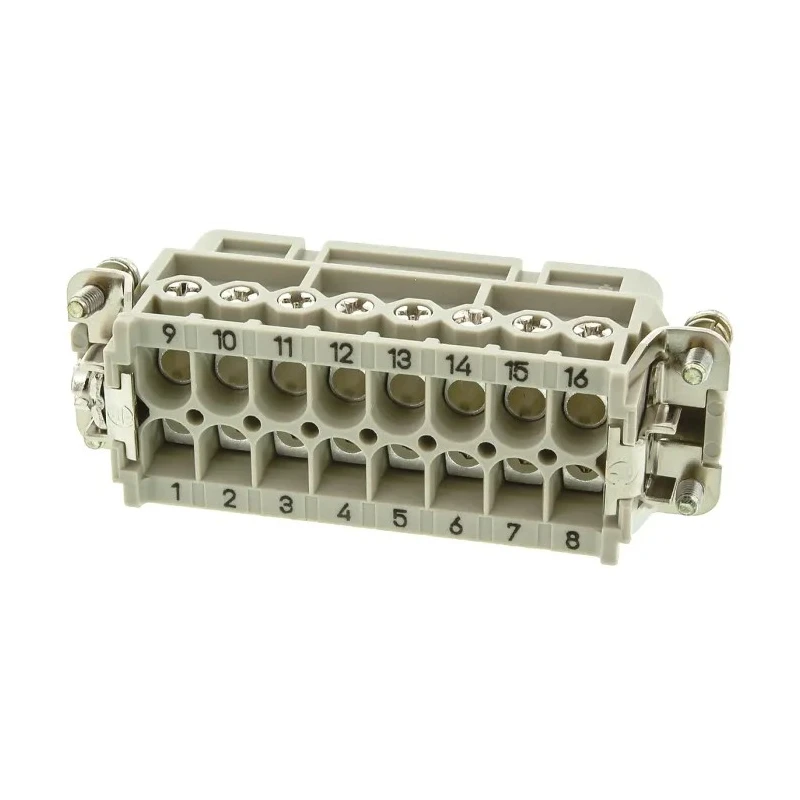

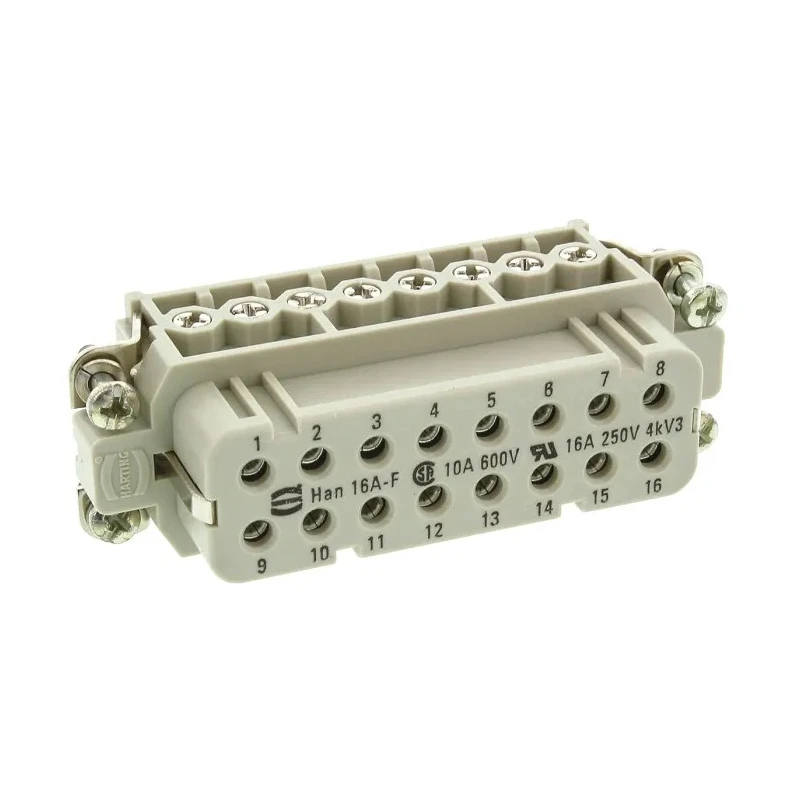

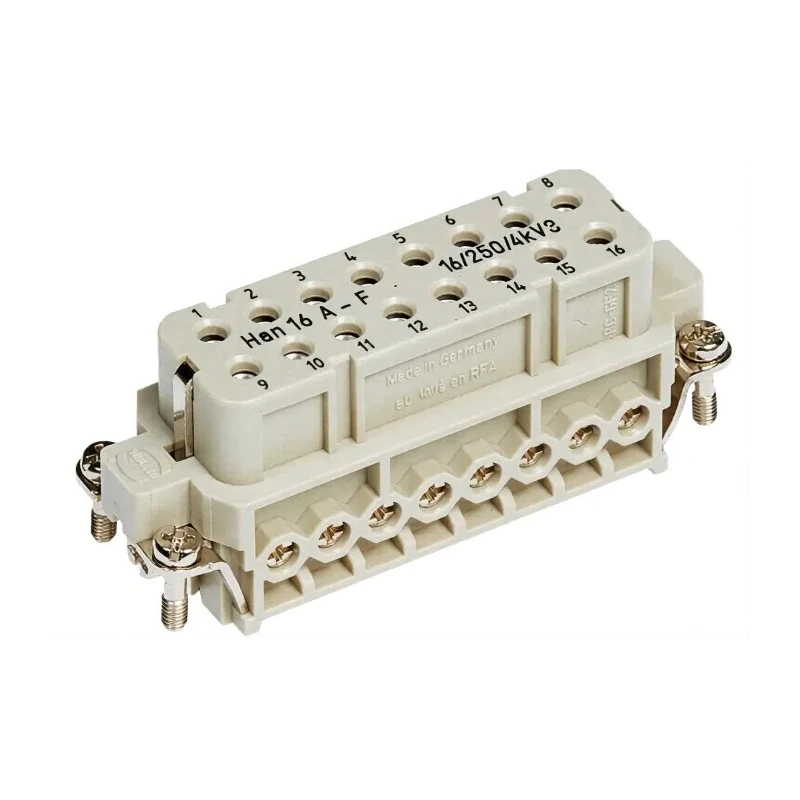

HARTING Heavy Duty Power Connector Insert 16A 600V Han A Series Female 16 Contacts 09200162812
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 600V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han A |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |

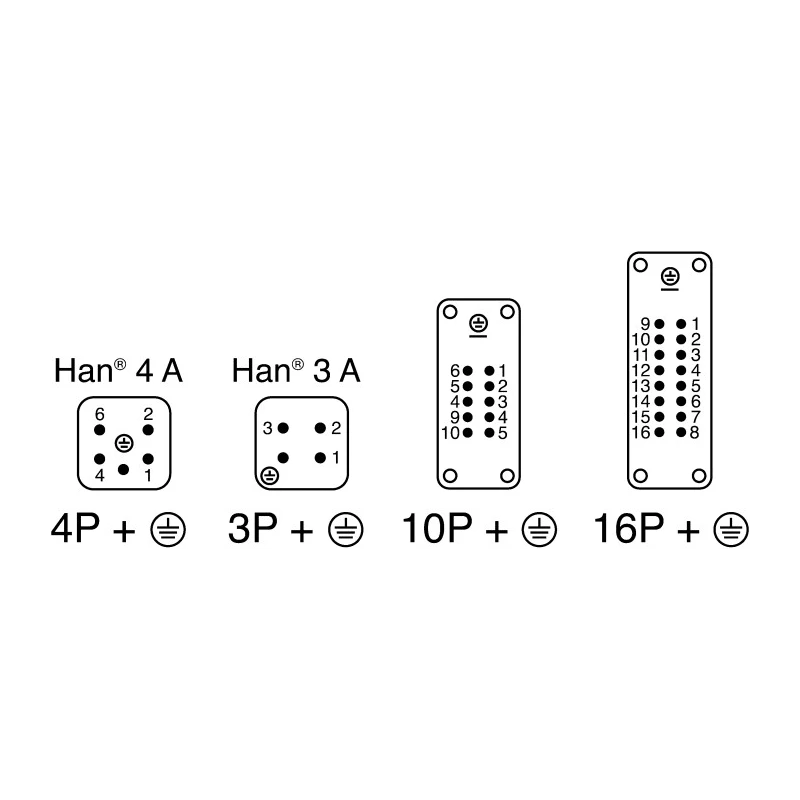

| Pole Format | 16+E |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2.5mm² |
| TE Connectivity Contact Insert, HA Series, 16 ContactsBrand | TE Connectivity |
Key Features
- Supports medium-power industrial circuits with 16A rated current.
- Panel-mounted connector with straight female orientation and 16+E pole format.
- Silver-plated copper alloy contacts enhance conductivity and reliability.
- Accommodates conductor cross-sections from 0.75mm² to 2.5mm² using screw termination.
- Polycarbonate insert withstands temperatures from −40 to +125 °C for harsh environments.
- Includes protective earth contact for secure grounding.
- Rated for a minimum of 500 mating cycles ensuring durability.
- Designed for use in automation, industrial machinery, manufacturing lines, mobile equipment, and electrical assembly systems.
Product Description
HARTING 09200162812 Heavy Duty Power Connector Insert is engineered for medium-power industrial applications requiring reliable electrical continuity. This Han A Series Female connector insert features 16 silver-plated copper alloy contacts and is rated for a 16 amp current and 600 volts, suitable for various AC and DC power distribution scenarios.
The connector provides a compact panel-mounted solution with straight orientation and includes a protective earth (PE) contact to ensure grounding safety. Its polycarbonate insulating body offers robust performance in harsh conditions with an operating temperature range from −40 °C to +125 °C. Screw termination supports wire sizes ranging from 0.75mm² to 2.5mm², enabling secure and easy installation.
This insert is ideal for automation control cabinets, industrial machinery, fixed heavy-duty connector housings on manufacturing lines, mobile equipment, vehicles, and electrical assembly systems. It withstands a minimum of 500 mating cycles and is designed with a V-0 flammability classification polycarbonate body and silver-plated contact surfaces for wear resistance and excellent conductivity.
Supports 16A current rating for medium-power applications. 600V voltage rating suitable for higher-voltage industrial installations. Silver-plated copper alloy contacts improve electrical conductivity and reliability. Screw termination accommodates 0.75 to 2.5 mm² wire sizes.
Protective earth contact included for grounding security. Polycarbonate insert material withstands extreme temperatures. Minimum 500 mating cycles under normal service conditions. Suitable for automation, manufacturing, mobile equipment, and assembly systems.
Please note, use M3 contact screws tightened to 0.5 Nm and an M3.5 PE screw at 0.8 Nm using recommended drivers for reliable electrical connections. The connector should not be mated or unmated under electrical load, and polarisation is essential to prevent incorrect connections. The product is manufactured in Romania and offers a dependable solution for harsh industrial environments.
Explore more high-quality industrial power connector solutions at EnvMart for your automation, manufacturing, and electrical distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This heavy duty power connector insert is rated for a current of 16A and a voltage of 600V, making it suitable for medium-power industrial applications.
It features 16 silver-plated copper alloy contacts, which enhance electrical conductivity and reliability.
This connector accommodates conductor cross-sections ranging from 0.75mm² to 2.5mm² using screw termination.
The polycarbonate insert can withstand temperatures from −40 °C to +125 °C, suitable for harsh environments.
It is rated for a minimum of 500 mating cycles, ensuring durability under normal service conditions.
This model has a straight orientation and is designed for panel mounting.
Yes, it includes a protective earth (PE) contact to ensure secure grounding.
The polycarbonate body of the insert has a V-0 flammability classification, indicating good resistance to ignition.
This connector insert is manufactured in Romania.
It is suitable for use in automation control cabinets, industrial machinery, mobile equipment, and electrical assembly systems.
The connector has a pole format of 16+E, which includes 16 contacts plus an earth contact.
Use M3 contact screws tightened to 0.5 Nm and an M3.5 PE screw at 0.8 Nm using recommended drivers for reliable electrical connections.
