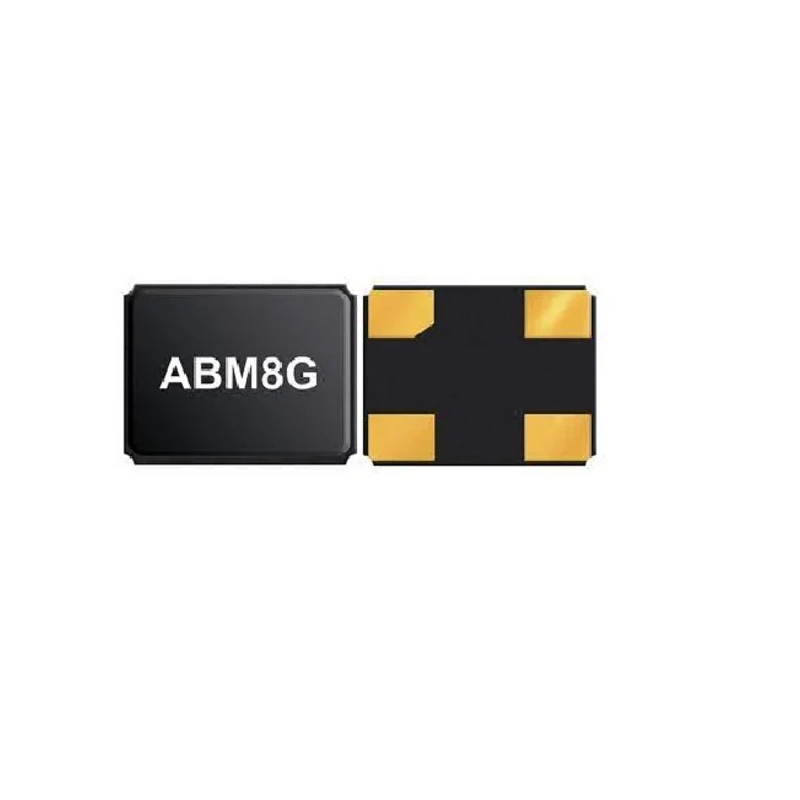

Abracon 27 MHz Surface Mount Crystal ±50 ppm Frequency Tolerance 4-Pin 3.2x2.5x1 mm ABM8G-27.000MHZ-4Y-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | ABM8G-27.000MHZ-4Y-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8G |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 27MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
Key Features
- Operates with a standard frequency of 27 MHz ensuring stable oscillations.
- Compact surface mount package with dimensions 3.2 mm length, 2.5 mm width, and 1 mm height.
- Load capacitance is specified at 10 pF for precise tuning.
- Features a series resistance of 60 Ω suitable for communication and test equipment.
- Temperature range from -10°C to +60°C supports various operating environments.
- Glass sealed ceramic construction ensures high reliability and moisture resistance.
- RoHS compliant, suitable for environmentally conscious electronic designs.
- Ideal for modems, wireless applications, PMCIA cards, and dense circuit board layouts.
Product Description
Abracon ABM8G-27.000MHZ-4Y-T3 is a high-quality 27 MHz surface mount crystal designed for precision frequency stability with a tolerance of ±50 ppm and stability of ±30 ppm.
This ultra-miniature ceramic glass sealed SMD crystal comes in a compact 4-pin package measuring 3.2 mm by 2.5 mm with a height of just 1 mm, making it ideal for thin and high-density electronic equipment.
The crystal supports a load capacitance of 10 pF and features a series resistance of 60 Ω, optimizing performance for modems, communication devices, wireless systems, and test equipment.
It operates reliably within a wide temperature range of -10°C to 60°C and carries RoHS certification ensuring compliance with environmental standards.
This ABM8G series device features glass sealing for enhanced moisture resistance and thermal stability, suitable for many industrial, communication, and electronic manufacturing applications.
Operates with a 27 MHz standard frequency for stable signal generation. Compact surface mount design enables space-saving PCB layouts. Low profile height of 1 mm supports slim device designs. Glass sealed ceramic package assures durability and high performance.
RoHS compliant for eco-friendly electronic manufacturing. Wide operating temperature range for diverse environments. Ideal for use in automotive, industrial, and consumer electronic products. Tape and reel packaging facilitates automated assembly processes.
Choose Abracon ABM8G-27.000MHZ-4Y-T3 for reliable precision timing components in your electronic designs. Explore more in the Crystal Units category at EnvMart for related components and solutions.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 27 MHz, ensuring stable oscillations for various applications.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and 1 mm in height, making it suitable for compact designs.
The load capacitance is specified at 10 pF, which is important for precise tuning in electronic circuits.
It features a series resistance of 60 Ω, optimizing its performance for communication and test equipment.
The operating temperature range is from -10°C to 60°C, allowing it to function in various environments.
It is packaged in tape and reel format, which facilitates automated assembly processes.
This crystal has a pin count of 4, suitable for various electronic applications.
The crystal features a glass sealed ceramic construction, ensuring high reliability and moisture resistance.
Yes, it is RoHS compliant, making it suitable for environmentally conscious electronic designs.
It is ideal for use in modems, wireless applications, and dense circuit board layouts.
This model belongs to the ABM8G series, known for its precision frequency stability.
The country of origin for this crystal is India.
