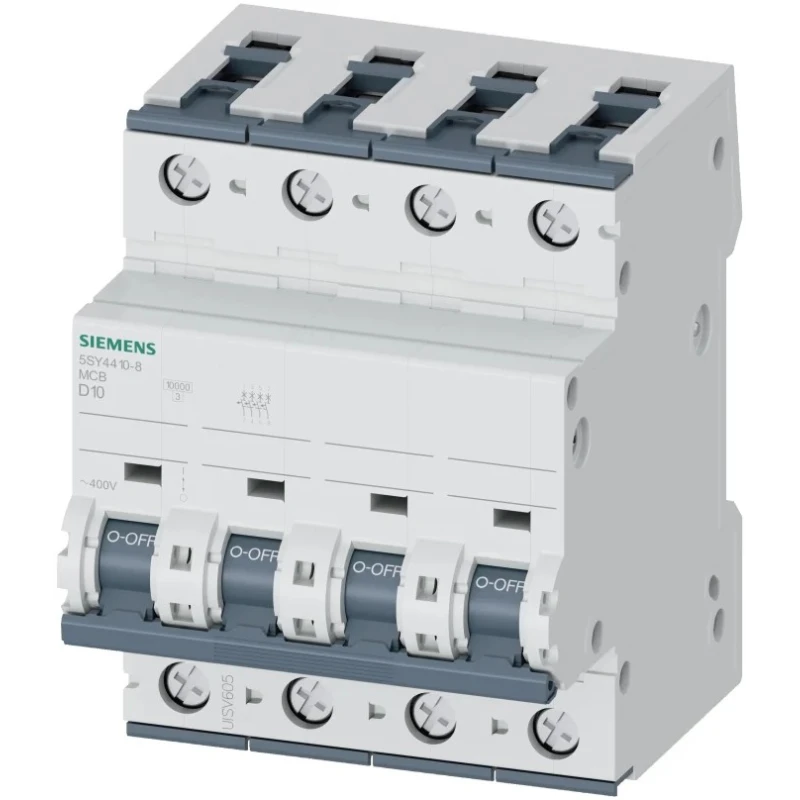

Siemens SENTRON 5SY4 Miniature Circuit Breaker, 4-Pole, 10A, Type D, 400V AC, 60V DC, 10kA Breaking Capacity 5SY4410-8
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4410-8 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 76mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | 5SY4 |
| Breaking Capacity | 10kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-2/UL1077, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Extended Product Life |
| Reset Actuator Type | Toggle Switch |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Designed for industrial, residential, and commercial installations.
- Type D tripping offers protection for high surge circuits such as motors and transformers.
- Rated breaking capacity of 10kA ensures performance in demanding environments.
- DIN rail mounting for quick, easy installation and removal.
- Reset actuator is a robust toggle switch for convenient operation.
- Complies with IEC/EN 60947-2/UL1077 and IEC/EN 60898-1 standards.
- IP20 rated enclosure prevents accidental contact and improves safety.
- Suitable for extension with supplementary control and signal modules.
Product Description
Siemens 5SY4410-8 SENTRON Miniature Circuit Breaker is engineered to deliver advanced circuit protection in complex electrical networks. This four-pole MCB supports a 10A current rating and operates with both AC (400V) and DC (60V) voltages, meeting the needs of critical industrial, construction, and infrastructure electrical systems.
Featuring a Type D tripping characteristic, the device reliably protects circuits subject to high inrush currents, including motors, transformers, welders, and other equipment with significant surge demands. Its high breaking capacity of 10kA ensures safety and stability during fault conditions.
This circuit breaker is optimized for industrial, laboratory, and commercial environments. The robust DIN rail mount facilitates secure, fast installation and removal. The reset actuator operates via a durable toggle switch, allowing quick restoration after tripping or testing.
The IP20 rating provides enhanced safety for operators and prevents unintentional contact with live parts. Its extended product life and proven Siemens quality contribute to reliable operation and reduced maintenance over time.
Designed for use in power distribution panels, manufacturing plants, machine shops, laboratories, and residential complexes. Expandable with supplementary modules such as shunt releases, remote operating mechanisms, and RCCBs for person and fire protection.
Compact and space-saving dimensions allow easy integration within crowded panels: 90mm height, 76mm width, and 90mm depth. Complies with global standards including IEC/EN 60947-2/UL1077 and IEC/EN 60898-1. Special tripping curves enable precise protection: Curve D triggers between 10 - 14 times the rated current for high-surge protection.
For more Miniature Circuit Breakers and premium Siemens electrical products, browse related categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A, making it suitable for various applications in industrial and commercial settings.
The Siemens 5SY4410-8 features a breaking capacity of 10kA, ensuring effective performance in fault conditions.
It operates at a rated AC voltage of 400V and a rated DC voltage of 60V, making it versatile for different electrical systems.
Type D tripping is designed to protect circuits with high inrush currents, triggering between 10 to 14 times the rated current, which is ideal for motors and transformers.
This unit has a height of 90mm, a width of 76mm, and a depth of 90mm, allowing for compact installation in electrical panels.
The Siemens 5SY4410-8 is designed for DIN rail mounting, facilitating quick and easy installation and removal.
It has an IP20 rating, which helps prevent accidental contact with live parts, enhancing safety during operation.
This model complies with IEC/EN 60947-2/UL1077 and IEC/EN 60898-1 standards, ensuring it meets international safety and performance requirements.
The reset actuator is a toggle switch, providing convenient operation for resetting after tripping or testing.
Yes, it is suitable for use in residential, industrial, and commercial installations, making it versatile for various environments.
It is expandable with supplementary control and signal modules, such as shunt releases and remote operating mechanisms, for enhanced functionality.
The country of origin for this model is Germany, reflecting its engineering and manufacturing standards.
