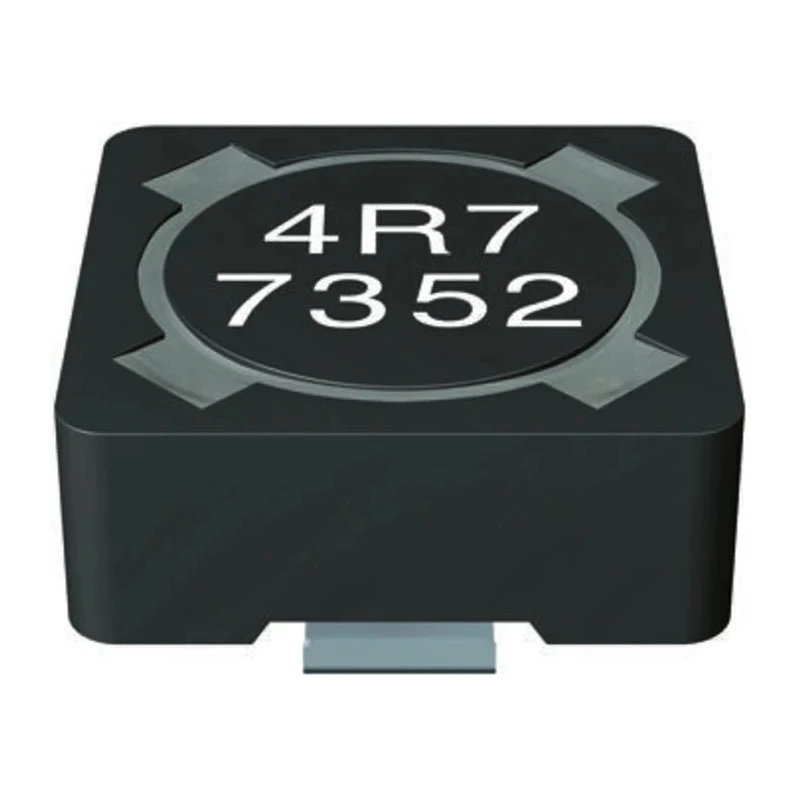

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20% 560 mA Idc B82472G4104M000

TDK B82472G4104M000 is a shielded wirewound surface mount inductor featuring a ferrite core, providing an inductance of 100 μH with a tolerance of ±20% and a maximum DC current rating of 560 mA. Designed for electronic circuit applications including supply voltage filtering, DC-DC converters, and automotive electronics, this component ensures reliable performance in demanding environments.

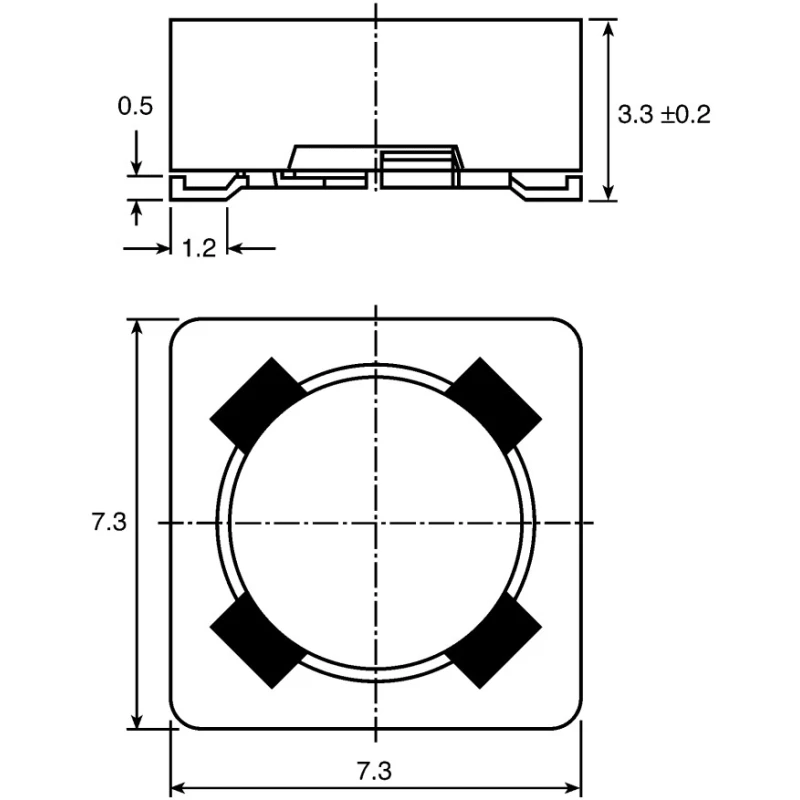

The inductor's magnetically shielded ferrite core with enamel copper wire winding effectively minimizes electromagnetic interference. It has a compact form factor with a length of 7.3 mm, height of 3.3 mm, and depth of 7.3 mm, facilitating space-saving PCB designs. It withstands an operating temperature range from -55°C up to 125°C, supporting use in various climatic conditions.

This component features solder termination style and is packaged in tape and reel for efficient handling in surface mount technology processes. The maximum DC resistance is 700 mΩ, allowing stable operation under rated current conditions. Suitable for industrial electronics, laboratory equipment, and automotive systems, this inductor complies with RoHS standards ensuring environmental and health safety.

Magnetically shielded wirewound design with ferrite core for reduced interference. Maximum DC current rating of 560 mA to ensure effective power handling. Compact dimensions: length 7.3 mm, height 3.3 mm, and depth 7.3 mm.

Wirewound construction with solder termination for durable surface mounting. Operating temperature range from -55°C to 125°C for versatile environmental use. RoHS compliant with lead-free tinned terminals for environmental safety.

Packaging in tape and reel format ready for automated assembly. Explore the extensive range of Surface Mount Inductors at EnvMart to find the ideal component for your electronic design needs.
