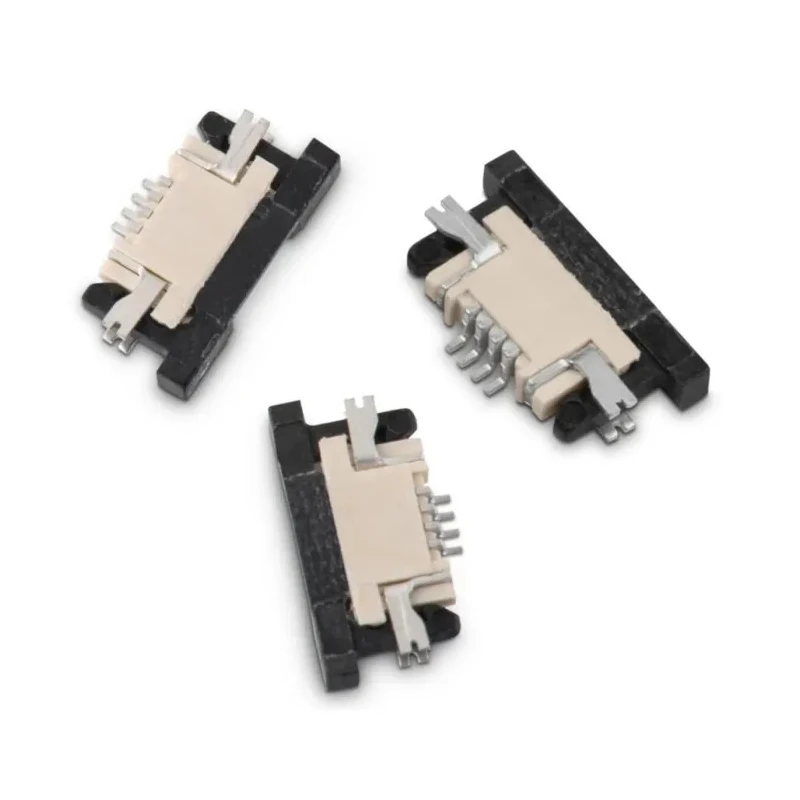

Wurth Elektronik WR-FPC 0.5 mm Pitch 12 Way Horizontal Female FPC Connector Surface Mount 687112183722

Wurth Elektronik 687112183722 is a 0.5 mm pitch, 12 way horizontal female Flexible Printed Circuit (FPC) Connector designed for surface mount applications. This connector is part of the WR-FPC series, featuring a low profile height of 1.2 mm, making it ideal for compact and high-density electronic designs in industrial, consumer, and medical equipment sectors.

The ZIF (Zero Insertion Force) flip lock actuator facilitates easy insertion of the flexible printed circuit while providing strong retention to ensure reliable electrical and mechanical connections. Made with phosphor bronze contacts plated with tin over nickel, it ensures excellent conductivity and durability. The housing is crafted from liquid crystal polymer, which offers robustness and thermal stability.

This 12-contact connector operates at a voltage of 50V AC and can handle current up to 400mA. It supports a wide operating temperature range from -25°C to 85°C, ensuring functionality in various environmental conditions. The connector's solder tabs enhance secure mounting on PCBs, further supporting mechanical stability.

Wurth's WR-FPC Connectors are well-suited for miniaturized high-density applications such as displays, touch panels, screens, and numerous consumer electronics including tablets, mobile phones, and cameras. Additionally, they find applications in business, industrial, and medical equipment where reliable, compact, and efficient PCB connections are critical.

Equipped with a low profile of 1.2 mm suitable for space-saving designs. Features a flip lock actuator for easy zero insertion force (ZIF) FPC insertion and secure retention. Constructed with phosphor bronze contacts and tin over nickel plating for reliable conductivity.

Supports 12 contacts with a horizontal orientation and bottom contact position. Capable of carrying up to 400mA current with operating voltage of 50V AC. Housing made of liquid crystal polymer ensuring durability and heat resistance.

Operational temperature range from -25°C to 85°C for diverse environments. Includes solder tabs for secure surface mount retention on printed circuit boards. Designed for miniaturized high density applications including displays, touch panels, and consumer electronics.

Locking mechanism ensures reliable electrical and mechanical connection during use. Explore EnvMart's wide selection of electronic components and connectors to find compatible parts and accessories for your design needs.
