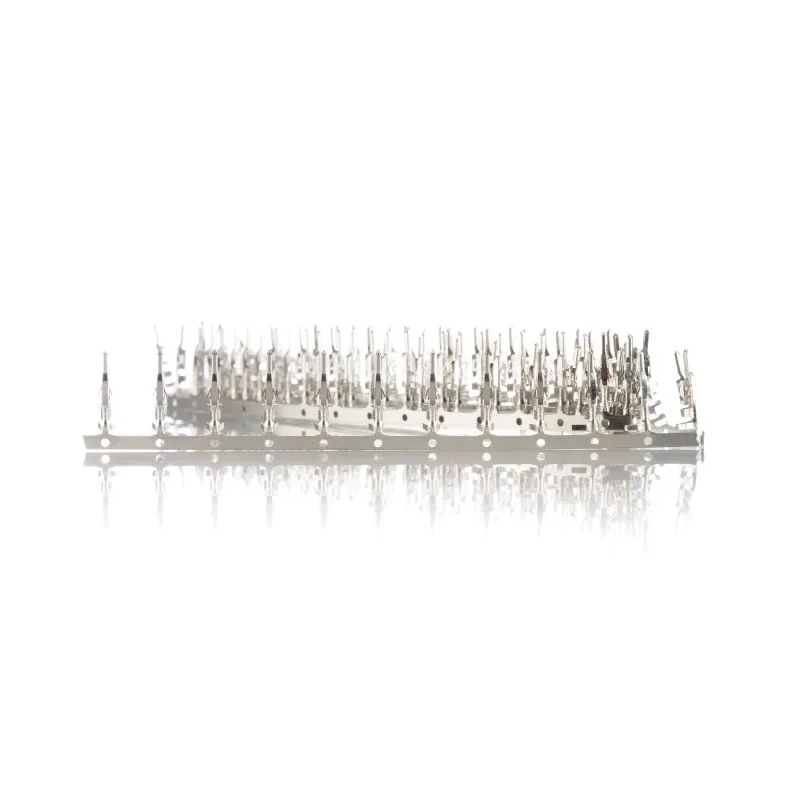

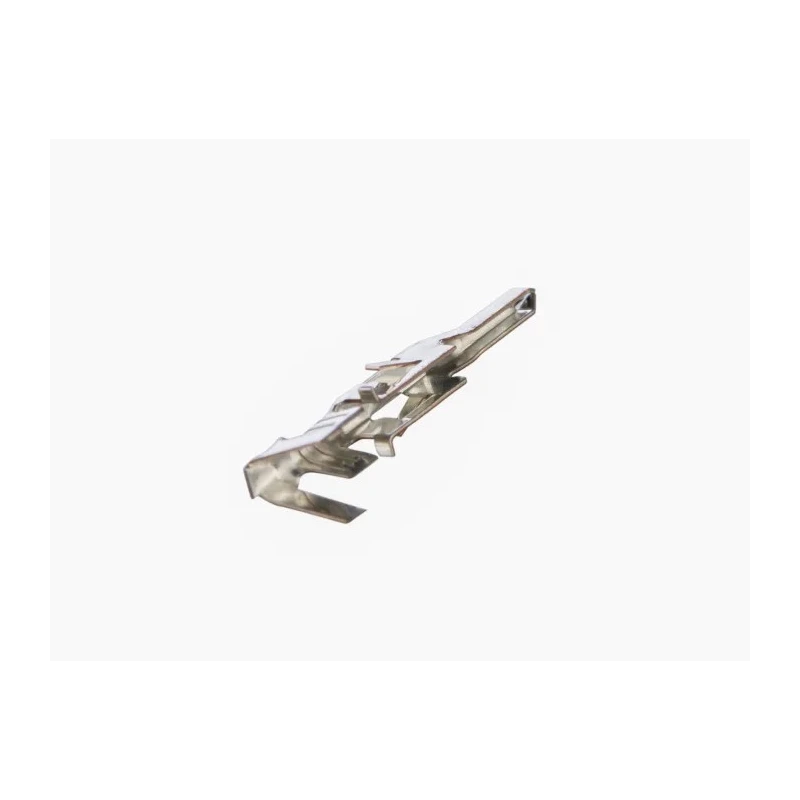

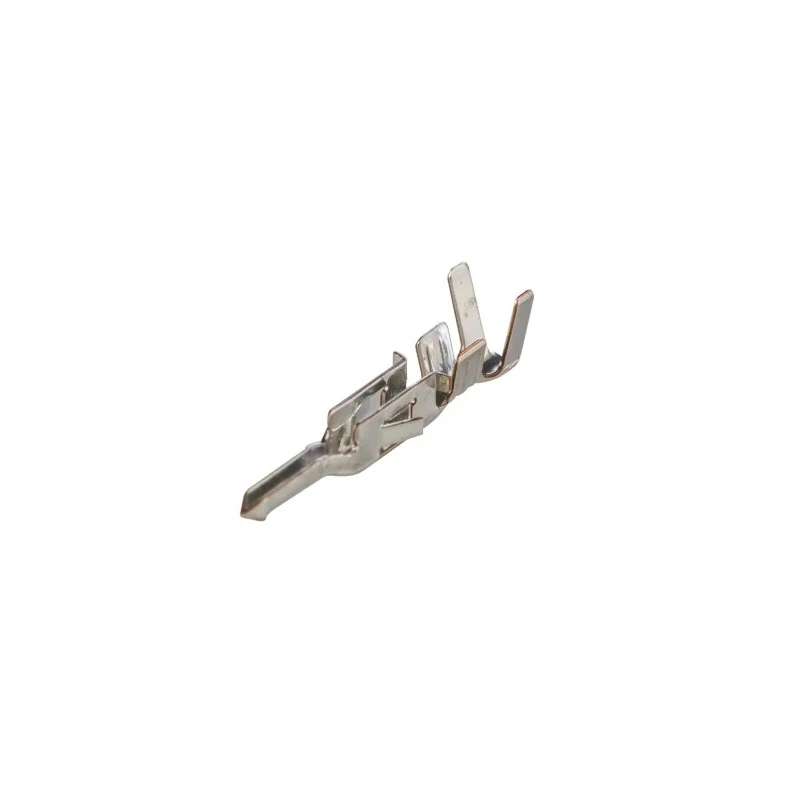

Molex 5558 Series Male Crimp Terminal 22 AWG Min, 16 AWG Max, Tin Plated Phosphor Bronze Contacts 39-00-0083

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal 22 AWG Min, 16 AWG Max, Tin Plated Phosphor Bronze Contacts 39-00-0083

Name: Molex 5558 Series Male Crimp Terminal 22 AWG Min, 16 AWG Max, Tin Plated Phosphor Bronze Contacts 39-00-0083
Brand: Molex
SKU: 207252
Price: 0.17 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Male
Contact Material	Phosphor Bronze
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr Connector Housing
Contact Plating	Tin
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	10mΩ

Key Features

This crimp terminal features tin plating over phosphor bronze for enhanced durability and conductivity.
Rated for 9 amps current and 600 volts maximum voltage for stable electrical performance.
The terminal supports operating temperatures from -40°C to 105°C, ensuring reliable use in extreme environments.
Designed with a crimp termination for secure and reliable wire connections.
Compatible with Mini-Fit Jr connector housings, ideal for wire-to-wire and power distribution applications.
Low contact resistance of 10 milliohms reduces energy loss and increases connection efficiency.
Supports a variety of wire insulation diameters from 1.80mm to 3.10mm for flexible installation.
Ideal for use with extraction and crimp tools specific to Mini-Fit Jr terminals.

Product Description

The Molex 39-00-0083 Male Crimp Terminal from the 5558 Series is engineered for precise and reliable electrical connections, accommodating wire sizes from 22 AWG minimum to 16 AWG maximum. Featuring tin-plated phosphor bronze contacts, the terminal provides superior corrosion resistance and excellent conductivity, essential for maintaining signal integrity and power reliability.

Rated for a maximum current of 9 amps and a voltage of up to 600 volts, this crimp terminal is suitable for demanding power distribution tasks within electronic systems. It operates reliably across a wide temperature range from -40°C to 105°C, making it ideal for harsh environments and industrial applications.

The crimp termination method ensures secure termination and robust mechanical stability. Compatible exclusively with Mini-Fit Jr connector housings, it supports wire-to-wire connections commonly found in automation, mechanical assemblies, and power circuitry.

This product features a low contact resistance of 10 milliohms to minimize power loss and heat generation, improving overall system efficiency. The terminal accommodates wire insulation diameters ranging between 1.80mm and 3.10mm, allowing versatility in application.

Installation is facilitated using extraction tools or hand crimp tools designed specifically for Mini-Fit Jr terminals, ensuring ease of use and consistent connection quality. Tin-plated phosphor bronze contacts ensure enhanced durability and conductivity.

Supports up to 9 amp current carrying capacity with 600V maximum voltage rating. Wide operating temperature range from -40°C to 105°C for reliable performance under extreme conditions. Crimp termination provides firm and secure wire connections.

Compatible with Mini-Fit Jr connector housings for versatile electrical assemblies. Low contact resistance of 10mΩ enhances electrical efficiency. Suitable for wire insulation diameters between 1.80mm and 3.10mm. Installation supported by Mini-Fit Jr extraction and crimping tools.

This Male Crimp Terminal is widely used in electronic, industrial automation, and mechanical assembly applications where robust, reliable wire connections are necessary. Its compatibility with Mini-Fit Jr housings makes it an integral component in modular connector systems employed in manufacturing, power distribution, and control equipment.

Browse the Electronics & Electricals category on EnvMart for high-quality connectors and Crimp Terminals from trusted brands like Molex.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal is rated for a maximum current of 9 amps.

It can handle a maximum voltage of 600 volts.

The terminal operates reliably within a temperature range of -40°C to 105°C.

It accommodates wire sizes from 22 AWG minimum to 16 AWG maximum, with a maximum wire size of 1.3 mm².

This model uses a crimp termination method for secure and reliable wire connections.

The contacts are made of phosphor bronze and are tin plated for enhanced durability and conductivity.

It is designed for use with Mini-Fit Jr connector housings.

The terminal features a low contact resistance of 10 milliohms, which helps reduce energy loss.

Installation should be performed using extraction tools or hand crimp tools designed specifically for Mini-Fit Jr terminals.

It is widely used in electronic, industrial automation, and mechanical assembly applications where reliable wire connections are necessary.

This crimp terminal is manufactured in India.

The tin plating on the phosphor bronze contacts provides superior corrosion resistance and excellent conductivity, essential for maintaining signal integrity.
