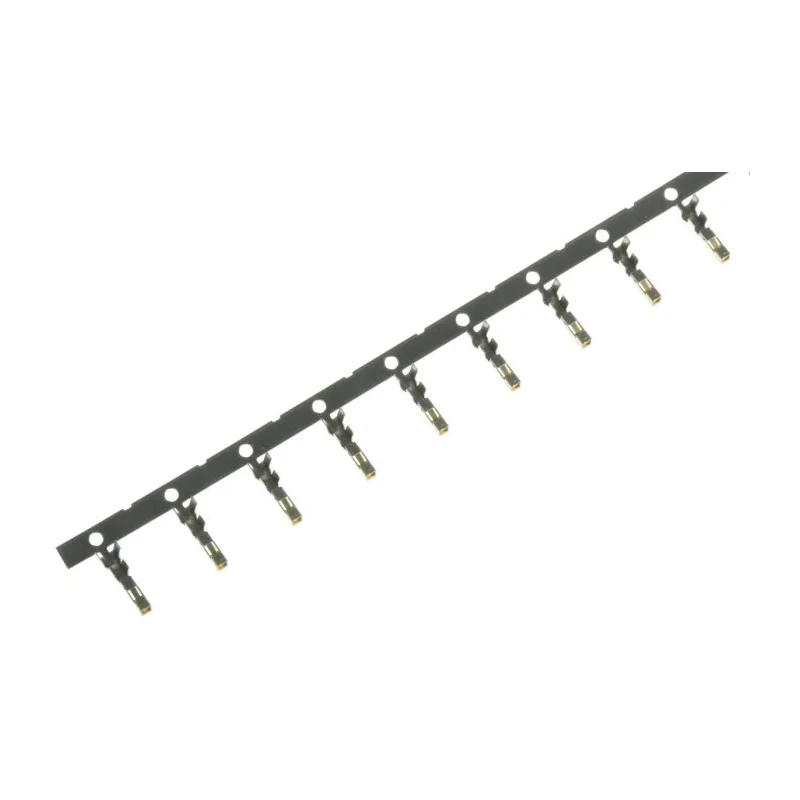

TE Connectivity Dynamic 1000 Series Female Crimp Terminal 22 AWG Min Crimp 18 AWG Max 5A Current Gold Plated 1827572-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 8.6mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 1000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 1000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for use with Dynamic 1000 connector housings.
- Gold plated copper alloy contact ensures high conductivity and corrosion resistance.
- Rated for a current capacity of 5A.
- Features a twist resistant box shape design for robust mechanical strength.
- Supports operating temperature range from -55°C to 105°C.
- Low insertion force for ease of mating and unmating.
- Constructed to prevent contact beam damage ensuring longevity.
- Three points of contact provide excellent electrical reliability.
Product Description
TE Connectivity 1827572-2 Dynamic 1000 Series Female Crimp Terminal is engineered to provide dependable and robust electrical connections for industrial and electronic applications. This female crimp terminal is designed to be used with Dynamic 1000 connector housings and supports wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.9 mm²) maximum. Its copper alloy contacts are gold plated to ensure high conductivity and excellent corrosion resistance, suitable for demanding environments.
The contact incorporates an anti-overstress structure that maintains a reliable and firm contact spring, while its twist resistant box shape design prevents damage to the contact beam. The three points of contact enhance electrical reliability by ensuring a secure connection. Low insertion force feature facilitates easy mating and unmating, reducing wear over repetitive cycles.
Rated for a continuous current of 5 amperes and designed to operate in harsh conditions with a temperature range of -55°C to 105°C, these crimp terminals are well suited to power and control board applications. Typical industrial uses include factory automation equipment, process computers, servo drives, servo motors, inverters, and switching power supplies where secure and durable wire connections are critical.
Gold plated copper alloy for enhanced conductivity and corrosion resistance. Compatible with all Dynamic 1000 connector housing ranges. Low insertion force design for ease of assembly and maintenance. Designed for high electrical reliability with three contact points.
Twist resistant box shape structure prevents mechanical damage. Wide operating temperature ensures functionality under diverse conditions. Reliable contact spring maintains consistent electrical performance. Length of 8.6mm ensures secure mechanical and electrical connection.
This product is a key component in electronics manufacturing, laboratory equipment, industrial automation, and HVAC control systems. TE Connectivity's Dynamic 1000 series offers engineers a dependable Crimp Terminal solution that balances performance, durability, and ease of use. Browse more from the TE Connectivity range or explore related items in the Crimp Contacts category at EnvMart to meet your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 5 amperes.
It supports wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.9 mm²) maximum.
The maximum operating temperature for this terminal is 105°C.
The contact material is a copper alloy, which is gold plated for enhanced conductivity and corrosion resistance.
The length of this terminal is 8.6 mm.
It features three points of contact that enhance electrical reliability by ensuring a secure connection.
Yes, it is designed for use with Dynamic 1000 connector housings.
The minimum operating temperature is -55°C.
This terminal uses a crimp termination type.
The twist resistant box shape design prevents mechanical damage to the contact beam.
It is suitable for industrial and electronic applications such as factory automation equipment, process computers, and HVAC control systems.
The maximum contact resistance is 20 mΩ.
