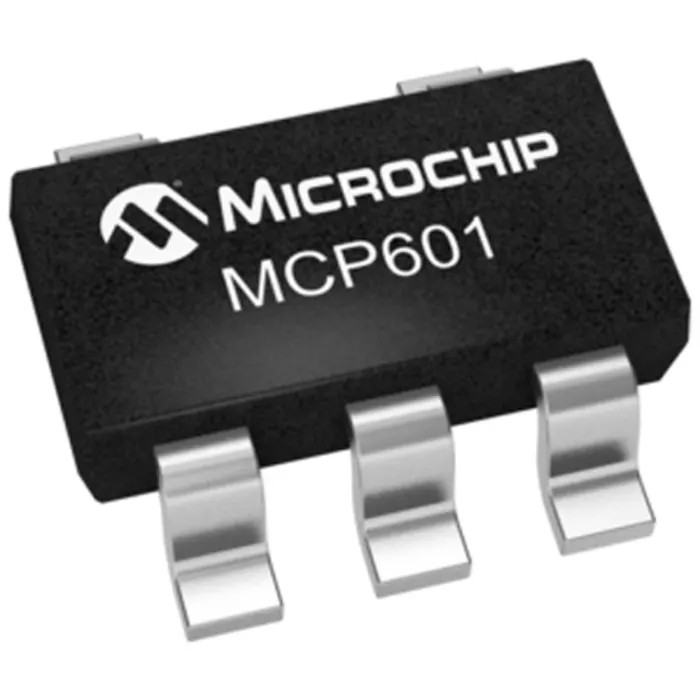

Microchip Operational Amplifier MCP601T-I/OT Surface Mount 5-Pin SOT-23 3V to 5V 2.8 MHz Gain Bandwidth Product MCP601T-I/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP601T-I/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP601 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- Single channel operational amplifier suitable for low voltage applications.
- Gain bandwidth product of 2.8 MHz ensures moderate frequency response.
- Minimal input bias current of 1 picoampere enhances precision.
- Package is compact SOT-23 with 5 pins for surface mounting.
- Operating temperature range from -40°C to 85°C permits industrial usage.
- Low input offset voltage of 2 millivolts ensures signal accuracy.
- Slew rate of 2.3 volts per microsecond supports fast signal changes.
- Output current capability of up to 30 milliamps for driving loads.
Product Description
Microchip MCP601T-I/OT is a precision single-channel operational amplifier designed for medium frequency applications with a 2.8 MHz gain bandwidth product. Packaged in a compact 5-pin SOT-23 surface mount package, it operates from a low supply voltage range of 3 to 5 volts, making it ideal for portable and low-power electronic devices. The device has a minimal input bias current of 1 picoampere and a low input offset voltage of 2 millivolts, enabling highly accurate analog signal amplification.
Its slew rate of 2.3 V/µs supports fast signal transitions, while the output current capacity of 30 mA is sufficient for driving moderate loads in various circuits. With an operating temperature range of -40°C to 85°C, this amplifier is suitable for industrial, consumer electronics, and automotive control systems (non-automotive standard compliant). The small package dimensions (3.1 mm x 1.8 mm x 1.3 mm) allow for dense PCB layouts.
The MCP601 series emphasizes low voltage and low current consumption operation, RoHS compliance for environmental safety, and durability across standard industrial temperatures. It is widely used in industrial instrumentation, consumer electronics, testing equipment, and embedded system signal conditioning.
Single channel operational amplifier designed for precision amplification. Gain bandwidth product of 2.8 MHz ensures stability and performance. Operating supply voltage range from 3V to 5V for low power operation. Extremely low input bias current and offset voltage for accurate signal processing.
Compact 5-pin SOT-23 surface mount package for space-saving PCB design. Wide operating temperature range from -40°C to +85°C for industrial use. Slew rate of 2.3 V/µs for fast response to signal changes. Maximum output current of 30 mA suitable for driving small loads.
RoHS compliant, meeting environmental regulations. Dimensions: Length 3.1mm, Width 1.8mm, Height 1.3mm.
This Microchip operational amplifier MCP601T-I/OT is ideal for use in precision analog signal conditioning in industrial, laboratory, and electronics manufacturing sectors. It is also suitable for integration in consumer electronics, instrumentation, and low power embedded applications.
Explore the wide range of semiconductor amplifiers and Operational Amplifiers available at EnvMart to find the right component for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP601T-I/OT has a gain bandwidth product of 2.8 MHz, which ensures stability and performance in medium frequency applications.
This model operates within a supply voltage range of 3V to 5V, making it suitable for low power applications.
The maximum output current capability of this operational amplifier is 30 mA, which allows it to drive moderate loads in various circuits.
It features a minimal input bias current of 1 picoampere, enhancing the precision of analog signal amplification.
The input offset voltage for the MCP601T-I/OT is 2 millivolts, ensuring accuracy in signal processing.
The slew rate of this operational amplifier is 2.3 volts per microsecond, supporting fast signal transitions.
This operational amplifier has dimensions of 3.1 mm in length, 1.8 mm in width, and 1.3 mm in height, packaged in a compact SOT-23 format.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for industrial applications.
It is packaged in a compact 5-pin SOT-23 surface mount package, which is ideal for space-saving PCB designs.
Yes, this operational amplifier is RoHS compliant, meeting environmental safety regulations.
This operational amplifier is a single channel device, designed for precision amplification.
It is widely used in industrial instrumentation, consumer electronics, testing equipment, and embedded system signal conditioning.
