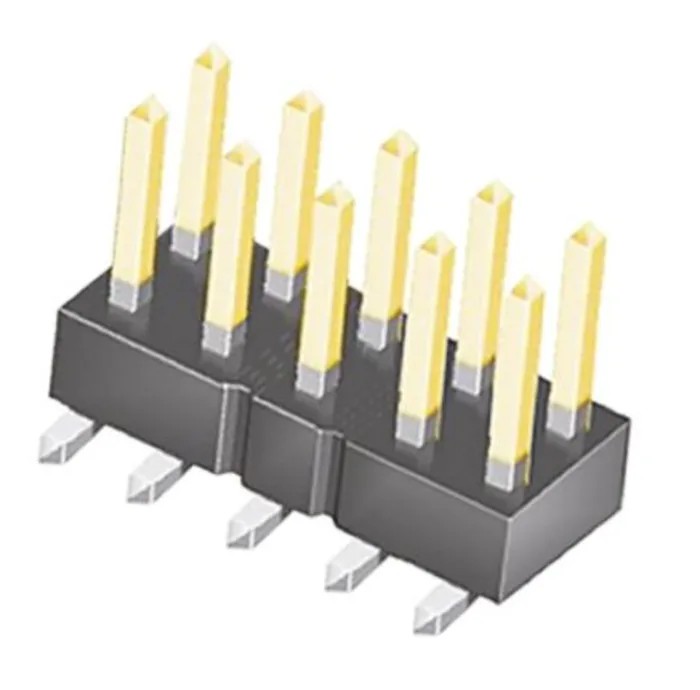

Samtec TSM-105-03-L-DV Vertical Surface Mount Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded, Gold-Plated
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.4A |
| Model | TSM-105-03-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS Compliant |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Plating used | Au or Sn over 50 μ" (1.27 μm) Ni |
Key Features
- Vertical surface mount pin header with 10 contacts for board-to-board PCB connections.
- Features a dual-row configuration with a 2.54 mm pitch for easy PCB layout integration.
- Contacts are made from phosphor bronze and gold-plated to ensure optimal conductivity and corrosion resistance.
- Black liquid crystal polymer housing offers robust mechanical stability and thermal resistance.
- Suitable for up to 5.4 A current and 475 V voltage, supporting both signal and moderate power lines.
- Unshrouded design allows simple assembly, inspection, and troubleshooting.
- Designed for industrial, automation, and embedded system applications.
Product Description
The Samtec TSM-105-03-L-DV is a high-reliability vertical surface mount pin header engineered for demanding board-to-board PCB connection applications. It is part of Samtec’s TSM Series, known for robust performance in industrial, commercial, and automation environments.
This header features 10 male contact pins, organized across 2 parallel rows with a precise 2.54 mm pitch, making it suitable for standard PCB layouts. The contacts are constructed from phosphor bronze and plated with gold, providing excellent electrical conductivity, reduced contact resistance, and superior resistance to environmental stress such as oxidation and corrosion.
The housing is made from black liquid crystal polymer, selected for its dimensional accuracy, mechanical strength, and ability to withstand high temperatures encountered during surface mount solder reflow processes. The unshrouded, open frame design also facilitates visual inspection and probe access during system-level debugging and assembly.
These headers are designed to mount directly on the PCB surface using standard surface mount technology (SMT). The connector supports a maximum current rating of 5.4 A, accommodating both signal and moderate power applications, with a working voltage up to 475 V. Plating is specified as gold (Au), or tin (Sn), applied over a 50 microinch (1.27 micrometer) nickel barrier, extending service life and contact reliability.
Typical operating temperature range is -55°C to +105°C when using tin-plated contacts, and up to +125°C for gold-plated versions, supporting use in both standard and moderately harsh industrial environments. The dual-row, 2.54 mm matrix allows for modular, stackable PCB arrangements in various electronics, test systems, and embedded control platforms.
Common application areas include industrial automation equipment, control panels, measurement instrumentation, embedded computing boards, and signal harnessing within complex assemblies.
Browse more Samtec PCB connectors and headers from the EnvMart Electronics Components category to match your project requirements.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 5.4 A, making it suitable for both signal and moderate power applications.
This pin header supports a maximum voltage of 475 V.
The contacts in this header are spaced at a pitch of 2.54 mm, allowing for standard PCB layout integration.
This model features 10 male contacts organized in a dual-row configuration.
The contacts are made from phosphor bronze and are gold-plated to enhance conductivity and corrosion resistance.
The housing is constructed from black liquid crystal polymer, which provides mechanical stability and thermal resistance.
The typical operating temperature range is -55°C to +105°C for tin-plated contacts, and up to +125°C for gold-plated contacts.
Yes, this pin header is RoHS compliant, meeting environmental standards for hazardous substances.
This model uses solder termination for mounting onto the PCB.
The TSM-105-03-L-DV is designed for vertical orientation, suitable for surface mount applications.
It is designed for use in industrial automation equipment, control panels, measurement instrumentation, and embedded computing boards.
The unshrouded design allows for simple assembly, inspection, and troubleshooting during system-level debugging.
