| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |

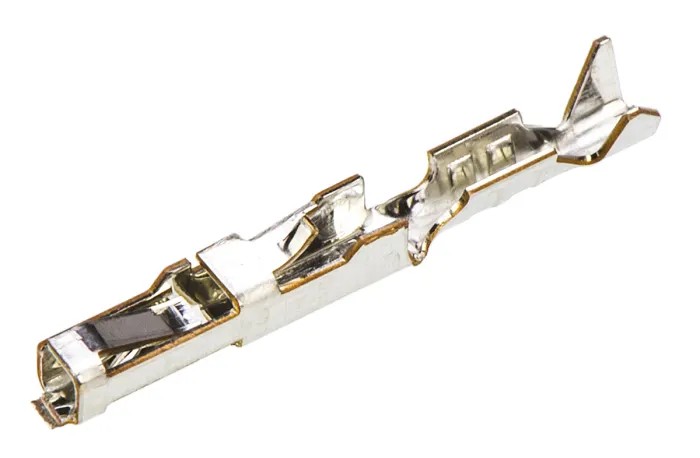

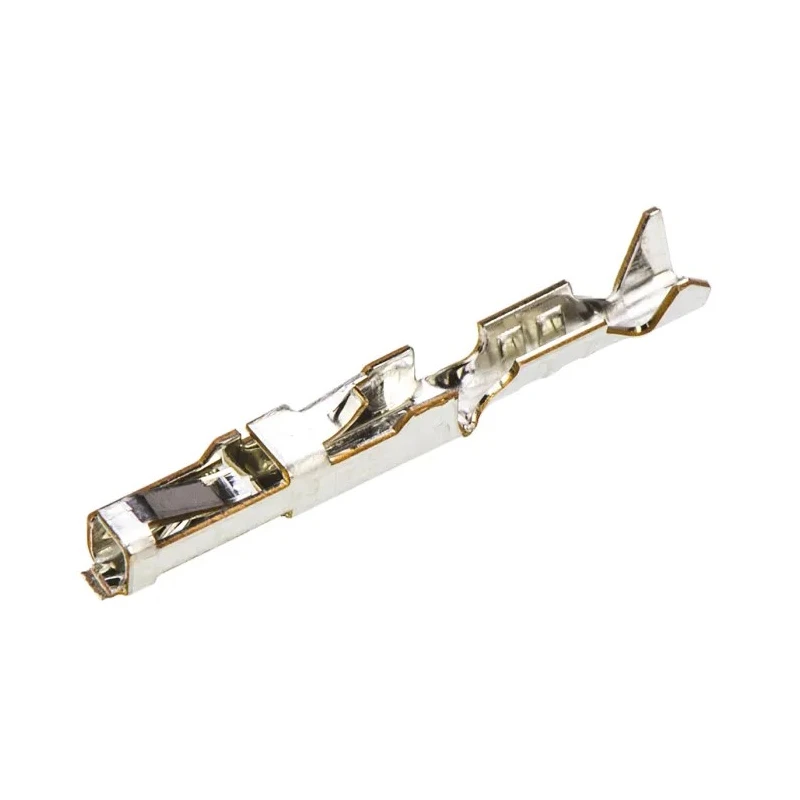

Molex 90119-0120 Female Crimp Terminal is engineered for secure and efficient signal transmission in electronics and automation applications. The terminal supports wire sizes from 28 to 26 AWG, making it suitable for a range of wire-to-board connection needs. Its phosphor bronze construction combined with tin plating provides excellent conductivity and resistance to environmental degradation, thereby increasing longevity and reliability.
Specifically designed for use with C-Grid III connector housings, this crimp terminal enables effective and durable mechanical crimp terminations, resulting in reliable electrical connections that reduce the risk of disconnection or signal loss. The terminal supports insulation diameters from 0.76 to 1.22 mm, ensuring compatibility with diverse wire types. Rated for a current of 3 amperes, this terminal performs well in signal and low-power electrical circuits.
It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding environmental conditions often encountered in industrial and electronic equipment. The high-quality materials and crimp method make this terminal a preferred choice for electrical, mechanical, and automation device manufacturers requiring consistent performance and environmental resistance.
Applications include electronic signal transmission, wire-to-board connections in automated machinery, and various electrical and mechanical system interfaces. Compatibility with C-Grid III connector housings ensures seamless integration.
Phosphor bronze contact material provides durability and conductivity. Tin plating offers corrosion resistance for longer service life. Supports a current of up to 3 amperes for stable electrical performance. Accommodates wire sizes from 28 to 26 AWG with insulation diameter of 0.76 to 1.22 mm.
Designed for use in industrial, commercial, and electronic applications.
This product is part of the Molex 90119 series of Crimp Terminals and is an ideal solution in electronics component assemblies requiring reliable wire connections. EnvMart customers can browse additional Molex products and connectors for comprehensive solutions.
