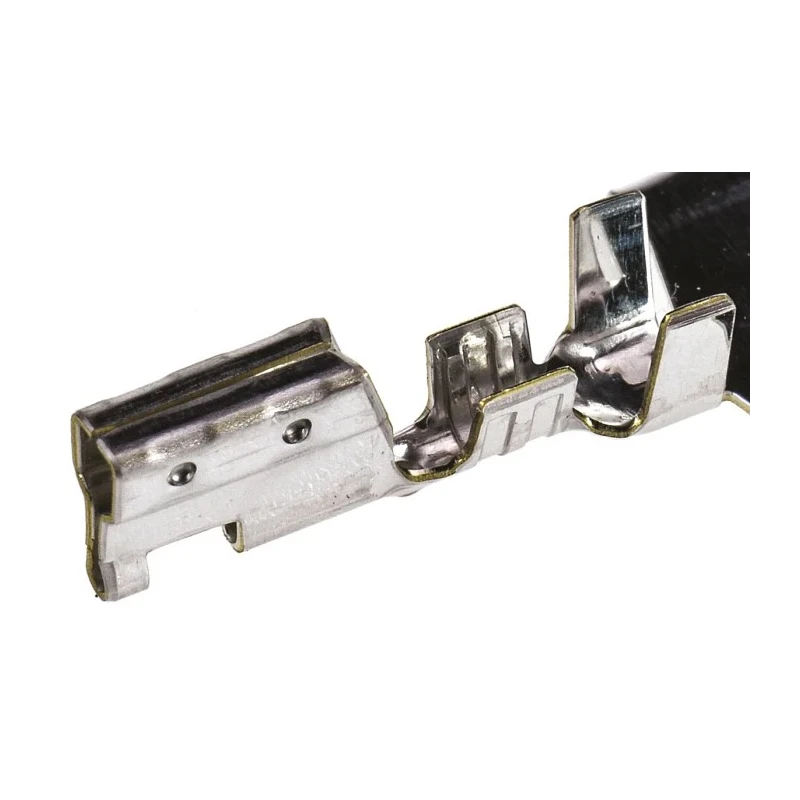

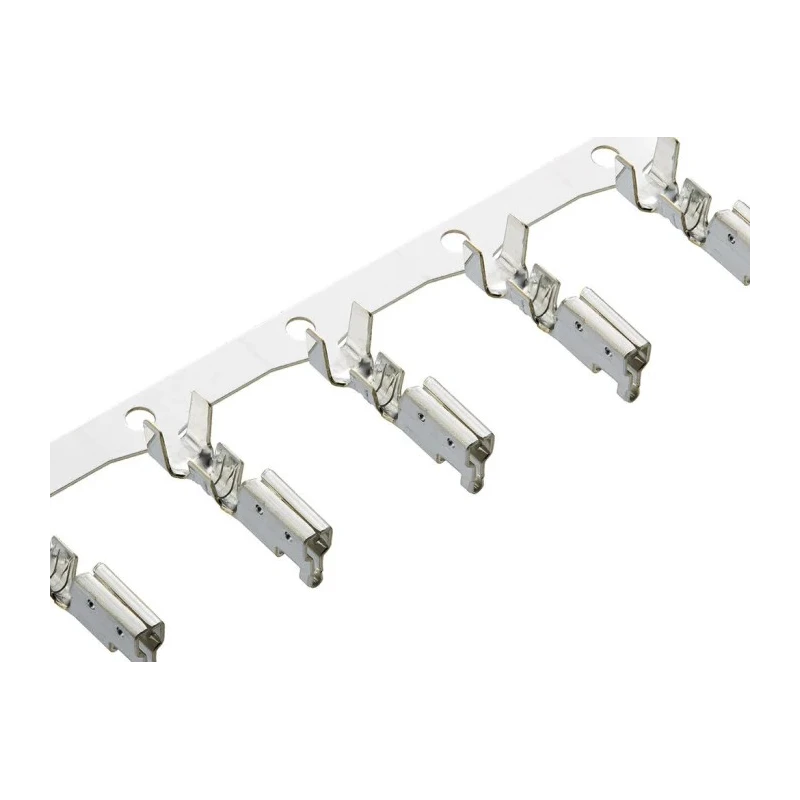

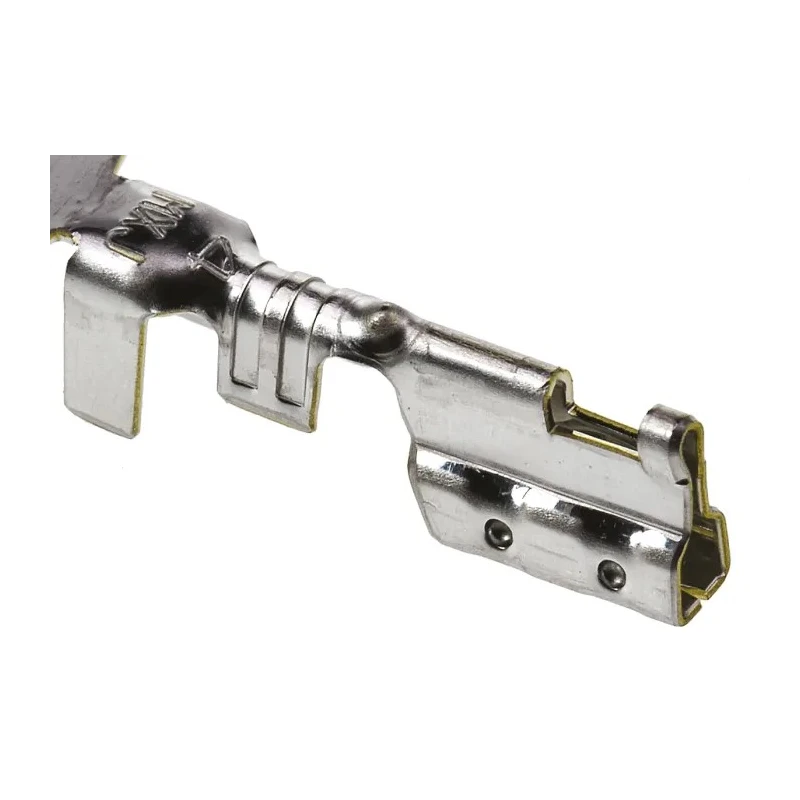

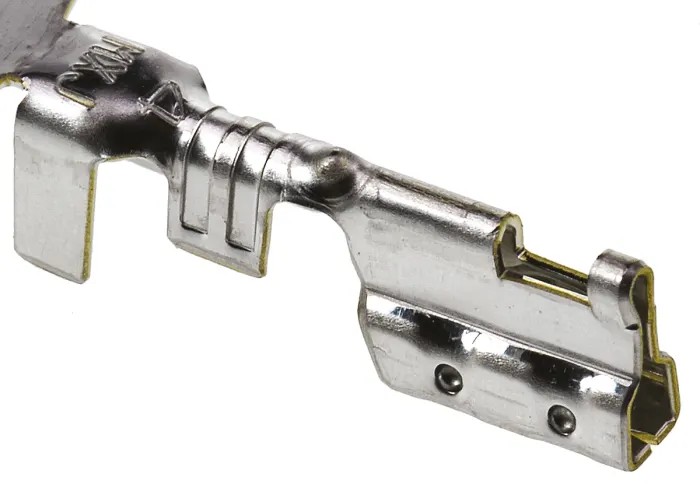

Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin-Plated Brass, 7A Current, Crimp 08-70-1031

Name: Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin-Plated Brass, 7A Current, Crimp 08-70-1031
Brand: Molex
SKU: 207220
Price: 0.11 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	Japan
Brand	Molex
Current	7A
Gender	Female
Contact Material	Brass
Series	5194
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SPOX Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed with tin-plated brass for superior conductivity and corrosion resistance.
Spring box style design ensures multiple points of contact for strong signal integrity.
Compatible with SPOX connector housings for secure crimp termination.
Wide operating temperature range from -40°C to 105°C for industrial applications.
Low contact resistance of 10 milliohms enhances signal performance.
Low-halogen design reduces harmful fumes when heated.
Lightweight design weighing approximately 0.185 grams to minimize strain.
Ideal for computer networking, factory automation, and robotics systems.

Product Description

Molex 08-70-1031 female crimp terminal is a high-quality electronic component designed for secure and reliable wire-to-circuit board connections. This terminal is part of the 5194 series and features a spring box style construction providing multiple points of contact, enhancing electrical performance and signal reliability.

Manufactured from brass with a tin plating, it offers excellent conductivity and resistance to corrosion and oxidation, making it suitable for demanding environments. It accommodates wire sizes from 24 AWG minimum to 18 AWG maximum, allowing broad compatibility for various wiring configurations. The terminal supports a current rating of 7 amperes and delivers low contact resistance of 10 milliohms ensuring efficient electrical flow.

Designed to work with SPOX connector housings, the 08-70-1031 ensures firm crimp termination to prevent air and moisture ingress, protecting the connection. The product operates reliably within a temperature range from -40°C to 105°C, supporting applications in industrial automation, robotics, and computer networking systems.

The terminal's low-halogen materials reduce the emission of harmful gases under heat, aligning with safety and environmental standards. Weighing only 0.185 grams, it minimizes mechanical strain on circuits.

Tin-plated brass contact material for corrosion resistance. Spring box style design for strong, multiple contact points. Compatible with SPOX connector housings for secure crimping. Supports wire sizes from 24 AWG to 18 AWG.

Operates at temperatures from -40°C to 105°C. 7A current rating with low 10mΩ contact resistance. Low-halogen design for reduced hazardous fumes. Lightweight 0.185g for minimal mechanical stress.

This female Crimp Terminal is essential for reliable electrical connections in electronics manufacturing, communications, and automation industries. Discover more related crimp contacts and connectors on EnvMart to optimize your projects and designs.
