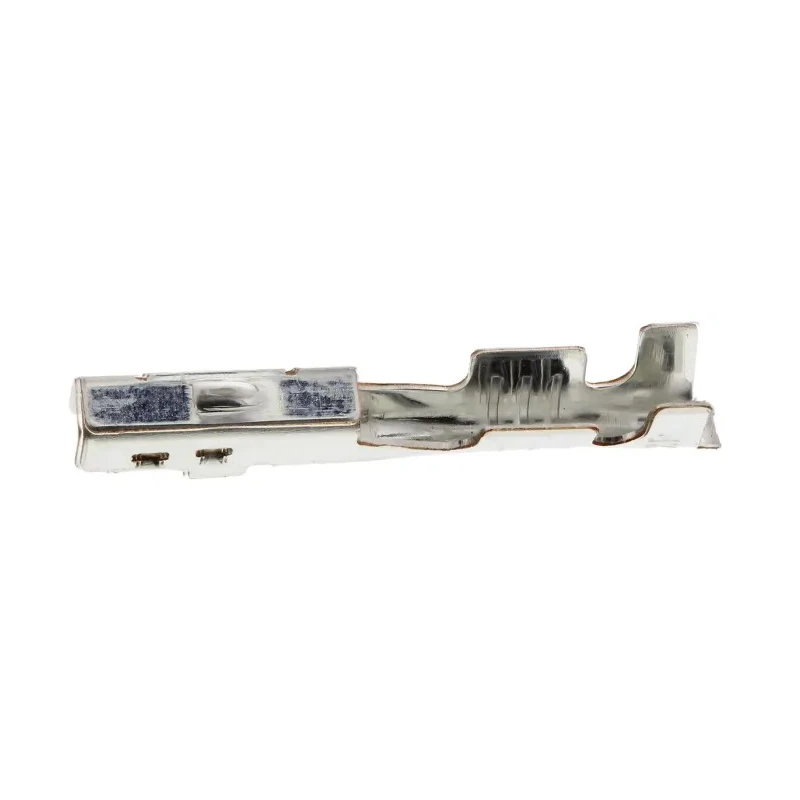

TE Connectivity MULTILOCK 040 III Series Female Crimp Terminal, 21 AWG Min Crimp, 18 AWG Max, Tin Plated Copper 316836-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 13.4mm |
| Model | 316836-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.85mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 18AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from copper alloy with tin plating for corrosion resistance.
- Designed for MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing compatibility.
- Supports current rating of 15A for various electrical applications.
- Operating temperature ranges from -30°C to 105°C for versatile environments.
- Crimp termination type with a length of 13.4mm for precise connections.
- Low initial contact resistance of 10 mΩ and maximum 20 mΩ final resistance.
- Snap-in fixing design ensures secure connector cavity engagement.
- Ideal for automation and automotive industry signal and power transfer.
Product Description
TE Connectivity 316836-1 MULTILOCK 040 III Series Female Crimp Terminal is a high-quality electrical connector designed for durable and reliable crimp connections. It supports wire sizes ranging from 21 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum, equipped with a tin-plated copper alloy contact material to ensure excellent conductivity and resistance to corrosion. The terminal features a crimp-style termination with a length of 13.4 mm, suitable for insertion into MULTILOCK 0.025/0.04 Hybrid I/O Connector Housings.
Operating temperature ranges from -30°C up to 105°C, making it suitable for use in challenging industrial and automotive environments. It has a current rating of 15A and can withstand a voltage of 1kVac for 1 minute, meeting rigorous electrical performance standards. Its low contact resistance, with an initial maximum of 10 milliohms and a final maximum of 20 milliohms, contributes to efficient electrical connections.
The snap-in fixing design facilitates easy and secure assembly into connector cavities, optimizing application in automation systems and signal transfer setups. This connector terminal series is part of TE Connectivity’s MULTILOCK family, known for high-density and reliable wire-to-wire and wire-to-board interconnect solutions widely used in automotive and industrial fields.
Constructed of tin-plated copper alloy for durability and conductivity. Crimp termination provides secure wire attachment. Supports wire sizes of 21 AWG minimum and 18 AWG maximum. Designed for use with MULTILOCK Hybrid I/O Connector Housings.
Offers current rating of 15A and withstands 1 kVac voltage. Operates in temperature range from -30°C to 105°C. Low contact resistance ensuring efficient electrical performance.
This product is ideal for industrial automation, automotive electrical systems, and other electronics applications requiring compact and reliable crimp contacts. It is a critical component for building robust wiring harnesses and connectors.
Explore more precision connector solutions in the electronics components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -30°C to 105°C, making it suitable for various environments.
It supports a current rating of 15A for various electrical applications.
This terminal is designed for wire sizes ranging from 21 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum.
The crimp termination length is 13.4 mm, allowing for precise connections.
The contact material is a copper alloy with tin plating, which provides corrosion resistance and excellent conductivity.
It is designed for use with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housings.
The initial contact resistance is a maximum of 10 mΩ, and the final maximum resistance is 20 mΩ.
The snap-in fixing design ensures secure engagement within the connector cavity, facilitating easy assembly.
This model is commonly used in industrial automation and automotive electrical systems for signal and power transfer.
It can withstand a voltage of 1 kVac for 1 minute, meeting rigorous electrical performance standards.
This terminal is part of the MULTILOCK 040 III Series, known for high-density interconnect solutions.
The country of origin for this product is India.
