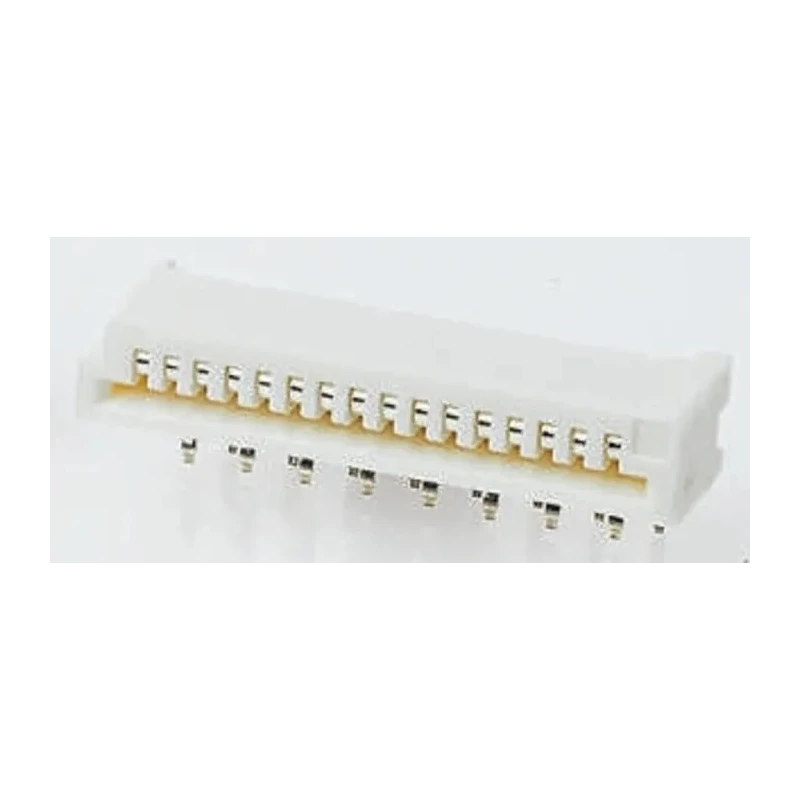

TE Connectivity FPC 1 mm Pitch 18 Way Right Angle Female FPC Connector, Solder Termination 200V AC, 1A 1-84953-8
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Features 18 contact positions with 1.0 mm pitch for precise connections.
- Constructed with phosphor bronze contact material plated with tin over nickel for durability.
- Supports a current rating of 1A and voltage rating of 200V AC for robust performance.
- Right angle, top contact orientation with a slide lock ZIF insertion force mechanism.
- Surface mount type with solder termination for secure PCB attachment.
- Housing made of liquid crystal polymer to withstand temperatures from -40°C to 85°C.
- Includes a locking mechanism for enhanced retention and reliability.
- Single row design suitable for compact electronics requiring flexible printed circuit connections.
Product Description
TE Connectivity 1-84953-8 FPC Connector is a female type flexible printed circuit (FPC) connector featuring an 18-way contact configuration with 1 mm pitch. Engineered for electronic applications requiring compact and reliable interconnections, this connector supports up to 1 Amp current and 200 Volt AC voltage ratings.
The connector utilizes phosphor bronze contacts plated with tin over nickel for excellent conductivity and corrosion resistance. It employs a Zero Insertion Force (ZIF) slide lock actuator mechanism which simplifies cable insertion and ensures reliable retention, minimizing contact wear and increasing durability in high vibration environments.
This right angle connector is intended for surface mount solder termination on PCBs, providing mechanical stability through solder tabs and a locking mechanism. The housing material is a high-performance liquid crystal polymer, able to operate within -40°C to 85°C, making it suitable for various demanding industrial, business, and medical equipment applications.
Applications include handheld scanners, set-top boxes, PCs and peripherals, industrial machinery, and medical devices. The connector’s compact design enables efficient space usage in dense electronic assemblies.
Features 18 contact positions with 1.0 mm pitch for precise connections. Constructed with phosphor bronze contact material plated with tin over nickel for durability. Supports a current rating of 1A and voltage rating of 200V AC for robust performance.
Right angle, top contact orientation with a slide lock ZIF insertion force mechanism. Surface mount type with solder termination for secure PCB attachment. Housing made of liquid crystal polymer to withstand temperatures from -40°C to 85°C.
Includes a locking mechanism for enhanced retention and reliability. Single row design suitable for compact electronics requiring flexible printed circuit connections.
This TE Connectivity FPC Connector is a reliable choice for industrial and commercial electronic assemblies needing durable, space-saving flexible circuit connections. Explore EnvMart for other high-quality electronic components and connectors to complement your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 200V AC and a current rating of 1A.
This model features an 18-way contact configuration with a 1 mm pitch.
It utilizes a solder termination type for secure PCB attachment.
The housing is made of liquid crystal polymer, which allows it to withstand temperatures from -40°C to 85°C.
It has a right angle orientation with top contact positioning.
It employs a Zero Insertion Force (ZIF) slide lock actuator mechanism for easier cable insertion and reliable retention.
It is suitable for applications in handheld scanners, set-top boxes, PCs and peripherals, industrial machinery, and medical devices.
This connector has a single row design.
The contacts are made of phosphor bronze and are plated with tin over nickel for enhanced conductivity and corrosion resistance.
The locking mechanism enhances retention and reliability, minimizing contact wear in high vibration environments.
The country of origin for this connector is Singapore.
The maximum operating temperature is 85°C.
