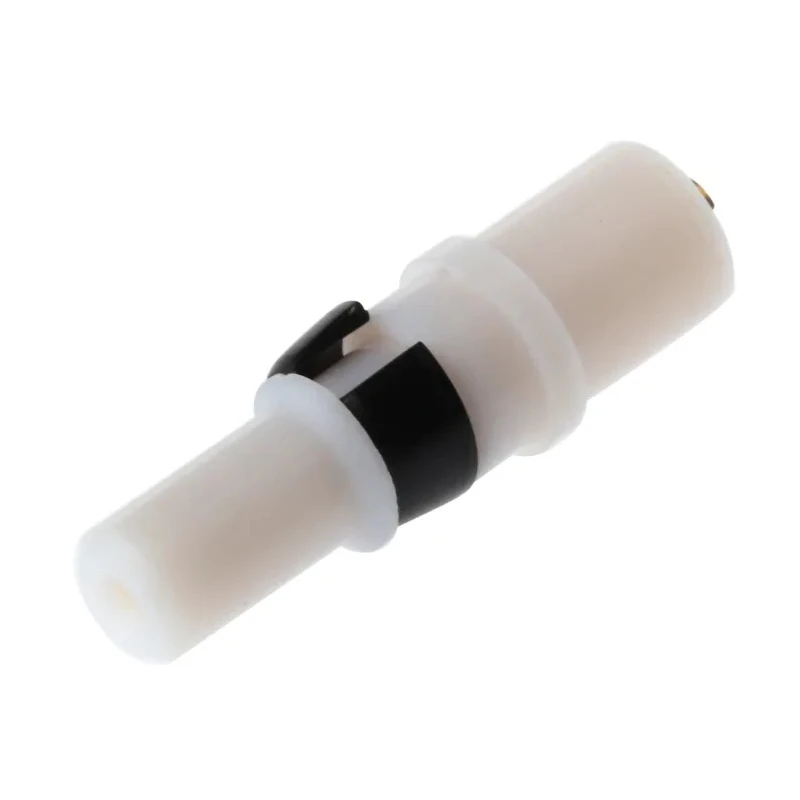

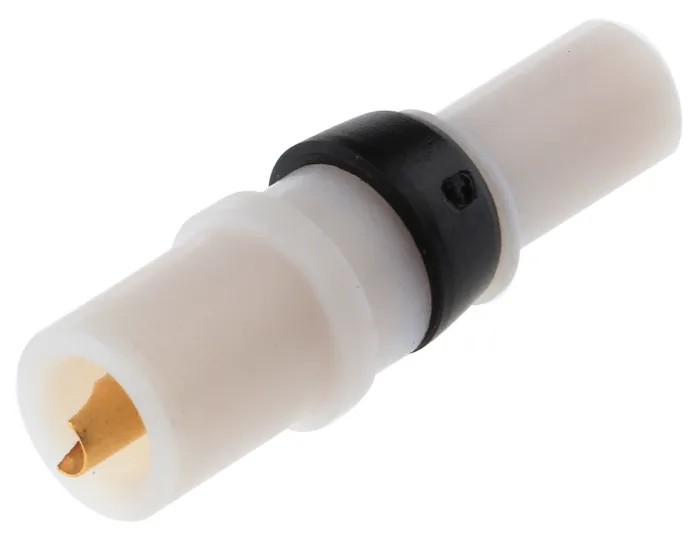

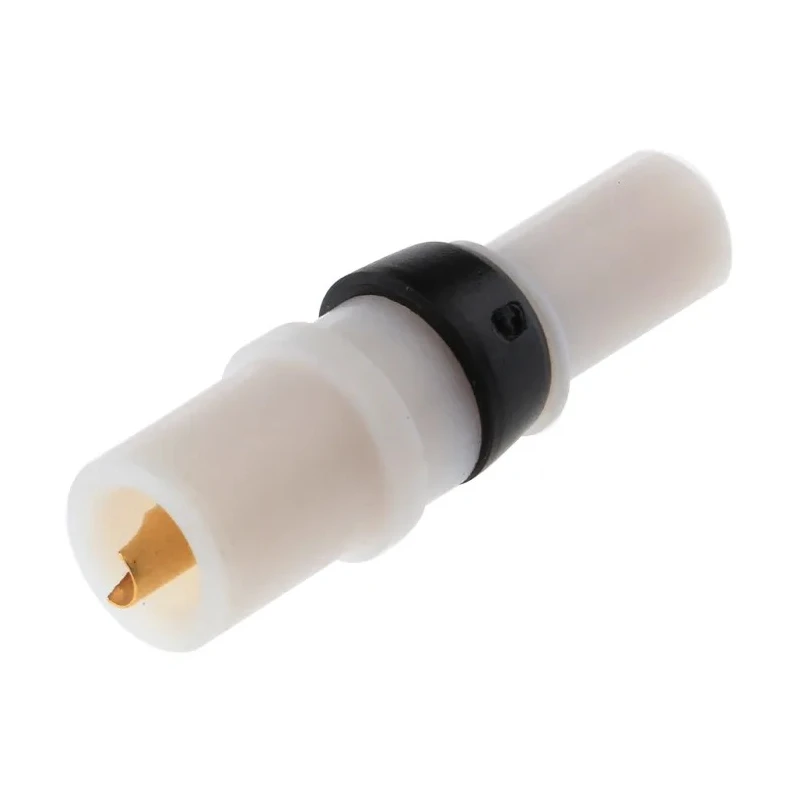

Harting D-Sub Mixed Series Male Solder D-Sub Connector Power Contact Gold High Voltage 20 AWG 09692812550
Specifications
| Country of Origin | India |
|---|---|
| Brand | Harting |
| Current | 2A |
| Length | 18.6mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Solder |
| Contact Type | High Voltage |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 1mΩ |
Key Features
- Constructed with copper alloy contact material for excellent conductivity.
- Gold plating ensures low contact resistance of 1 milliohm.
- Rated current of 2 amperes suitable for power connectivity.
- Supports wire sizes from AWG 24 to AWG 20 (0.25 mm² to 0.5 mm²).
- Measures 18.6 mm in length with a straight version contact design.
- Designed to meet DIN 41 652 T1 standards for D-Sub mixed connectors.
- Termination type is solder, ideal for cable applications.
- Plating thickness of 1.3 micrometers gold provides corrosion resistance.
Product Description
Harting 09692812550 D-Sub Mixed Series male solder D-Sub Connector power contact is a high voltage, high quality electronic component designed to ensure effective power transmission in industrial and electronic applications.
Made from copper alloy, this male connector features gold plating with a thickness of 1.3 micrometers, which guarantees minimal contact resistance of 1 milliohm and enhances durability and corrosion resistance.
It is suitable for wires sized between AWG 24 and AWG 20 (0.25 mm² to 0.5 mm²), supporting a current rating of 2 amperes, making it ideal for reliable cable connections in power and signal transmission environments.
The connector length is precisely 18.6 mm, with a straight version designed for solder termination, ensuring secure and lasting cable attachment in various electronic assemblies.
This product complies with the DIN 41 652 T1 standards specific to D-Sub mixed connectors, ensuring compatibility and quality for industrial, laboratory, manufacturing, telecommunications, and electronic equipment applications.
Constructed with copper alloy contact material for excellent conductivity. Gold plating ensures low contact resistance of 1 milliohm. Rated current of 2 amperes suitable for power connectivity. Supports wire sizes from AWG 24 to AWG 20 (0.25 mm² to 0.5 mm²).
Measures 18.6 mm in length with a straight version contact design. Designed to meet DIN 41 652 T1 standards for D-Sub mixed connectors. Termination type is solder, ideal for cable applications. Plating thickness of 1.3 micrometers gold provides corrosion resistance.
This D-Sub power contact connector is essential for secure, high voltage cable applications in electronics manufacturing, power distribution systems, and precision industrial equipment.
Explore and source a wide range of reliable connectors and electronic components for your projects through EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 2 amperes, making it suitable for power connectivity applications.
It supports wire sizes from AWG 24 to AWG 20, corresponding to cross-sectional areas of 0.25 mm² to 0.5 mm².
The maximum contact resistance for this connector is 1 milliohm, ensuring effective power transmission.
This model measures 18.6 mm in length, designed for a straight version contact configuration.
It uses a solder termination type, which is ideal for secure cable applications.
The contacts are made from copper alloy, which provides excellent conductivity.
The gold plating thickness is 1.3 micrometers, which enhances corrosion resistance.
It is designed to meet DIN 41 652 T1 standards for D-Sub mixed connectors, ensuring compatibility and quality.
This connector is male, suitable for various electronic applications.
It is suitable for industrial, laboratory, manufacturing, telecommunications, and electronic equipment applications.
The country of origin for this connector is India.
This model is part of the D-Sub Mixed Series, which includes various D-Sub connectors.
