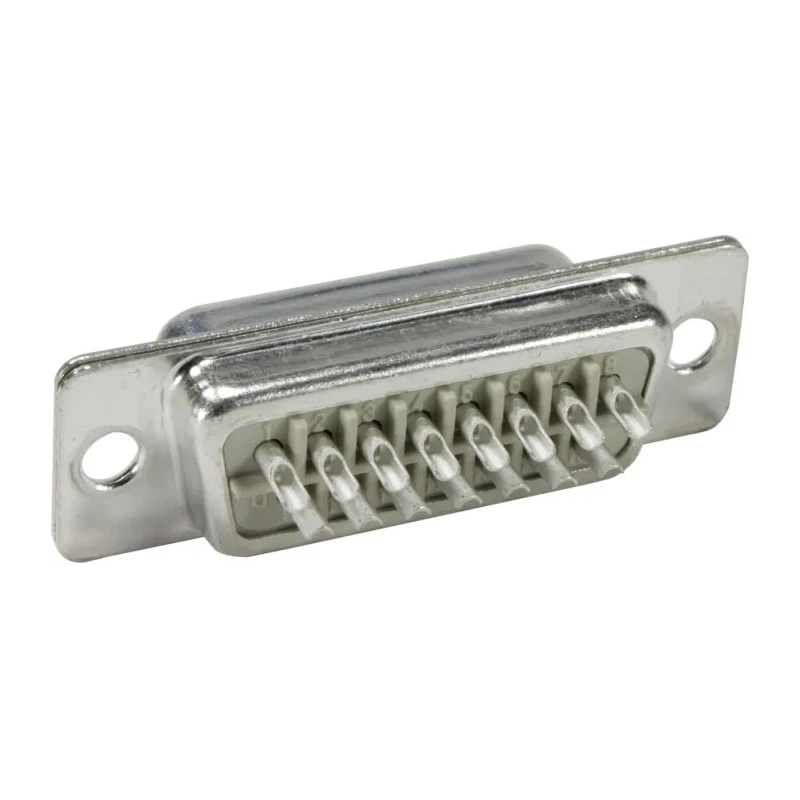

HARTING SV TSDC 15 Way Straight Panel Mount D-Sub Connector Male 1.0kV 7.5A Fibreglass Reinforced Thermoplastic 09670155615

Free Delivery in India | Lowest Global Shipping Charges

HARTING SV TSDC 15 Way Straight Panel Mount D-Sub Connector Male 1.0kV 7.5A Fibreglass Reinforced Thermoplastic 09670155615

Name: HARTING SV TSDC 15 Way Straight Panel Mount D-Sub Connector Male 1.0kV 7.5A Fibreglass Reinforced Thermoplastic 09670155615
Brand: HARTING
SKU: 94476
Price: 9.53 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	1.0kV
Brand	HARTING
Orientation	Straight
Current	7.5A
Mount Type	Panel Mount
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	SV TSDC
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub

Key Features

Features a sturdy fibreglass reinforced thermoplastic housing for durability.
Rated for 7.5A current and 1.0kV voltage for reliable electrical performance.
Designed with 15 male contacts and solder cup terminations for secure connections.
Operates effectively within a temperature range of -55°C to 125°C.
Includes copper alloy turned contacts for excellent conductivity and corrosion resistance.
Panel mount style with straight orientation allows easy installation.
Manufactured in Germany ensuring high quality standards.

Product Description

HARTING 09670155615 SV TSDC 15 Way Straight Panel Mount D-Sub Connector Male is engineered for demanding industrial, electronic, and electrical environments requiring stable, high-quality connections. Rated for 7.5 amperes and capable of handling voltages up to 1.0kV, this connector is built with a fibreglass reinforced thermoplastic housing that provides excellent durability and resistance to environmental stress.

Its solder cup termination and copper alloy turned male contacts ensure reliable, low-resistance electrical contacts suited for high-frequency signals and power applications. The connector supports operation in extreme temperature ranges from -55°C to 125°C, making it suitable for harsh environments.

This panel mount connector affixes securely using 3.1 mm mounting holes with a fixing flange, facilitating stable and easy installation on equipment panels or enclosures. It belongs to the SV TSDC series of miniature D-Sub connectors, available in 15, 25, and 37-way configurations to support diverse application needs.

Typical uses include industrial automation, telecommunications equipment, computing devices, and test instrumentation where compact, robust connectors are essential. The construction from premium materials and manufacturing in Germany guarantees consistent quality and long service life.

Sturdy fibreglass reinforced thermoplastic housing offers protection against mechanical and environmental hazards. Copper alloy turned contacts ensure superior conductivity and corrosion resistance for dependable signal integrity.

Supports 7.5A current and 1.0kV voltage, suitable for a wide range of industrial electrical connections. Operates within extended temperature range from -55°C to 125°C for versatile deployment. Solder cup termination facilitates high-quality, durable electrical connections.

Straight male panel mount style with fixing flange ensures secure mounting and easy installation. Series SV TSDC by HARTING is a recognized solution for miniature D-Sub connectors in various configurations.

For professionals requiring top-tier connectors for construction, automation, industrial control, and electronic assembly, the HARTING SV TSDC 15 Way Straight Panel Mount D-Sub Connector Male is an ideal choice. Explore more quality connectors and components in the Electronics Components section at EnvMart for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current of 7.5A and a voltage of 1.0kV, making it suitable for various industrial electrical connections.

The connector features a fibreglass reinforced thermoplastic housing and copper alloy turned contacts, providing durability and excellent conductivity.

It operates effectively within a temperature range of -55°C to 125°C, allowing for use in harsh environments.

This model is designed for panel mount installation and includes a fixing flange with 3.1 mm mounting holes for secure affixation.

It utilizes a solder cup termination type, which facilitates high-quality and durable electrical connections.

This connector features 15 male contacts, suitable for various applications requiring multiple connections.

It belongs to the SV TSDC series of miniature D-Sub connectors, which are available in various configurations.

The connector has a straight orientation, which aids in installation and connection to equipment.

This model is manufactured in Germany, ensuring adherence to high quality standards.

Typical applications include industrial automation, telecommunications equipment, computing devices, and test instrumentation.

The connector features male contacts, which are designed for secure connections with compatible female connectors.

Yes, the copper alloy turned contacts ensure reliable, low-resistance electrical contacts suitable for high-frequency signals and power applications.
