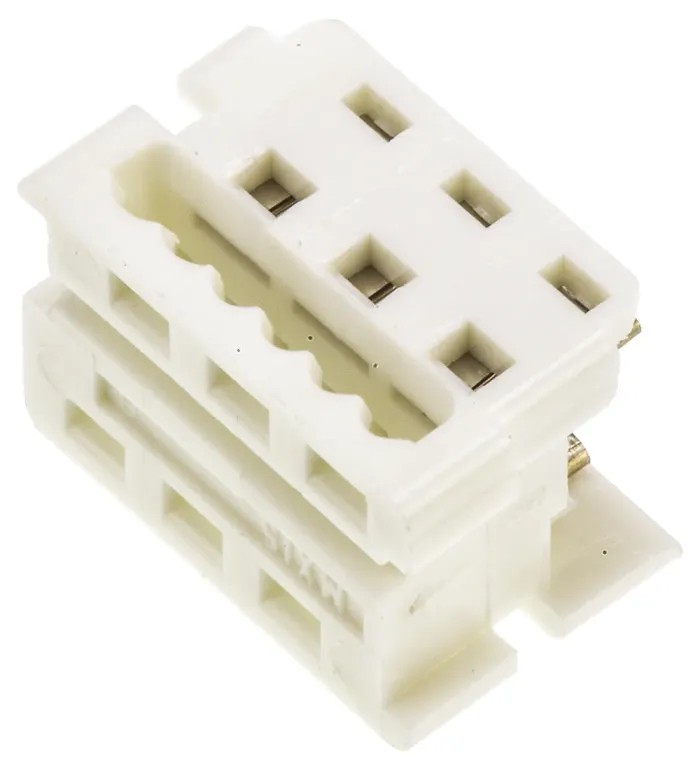

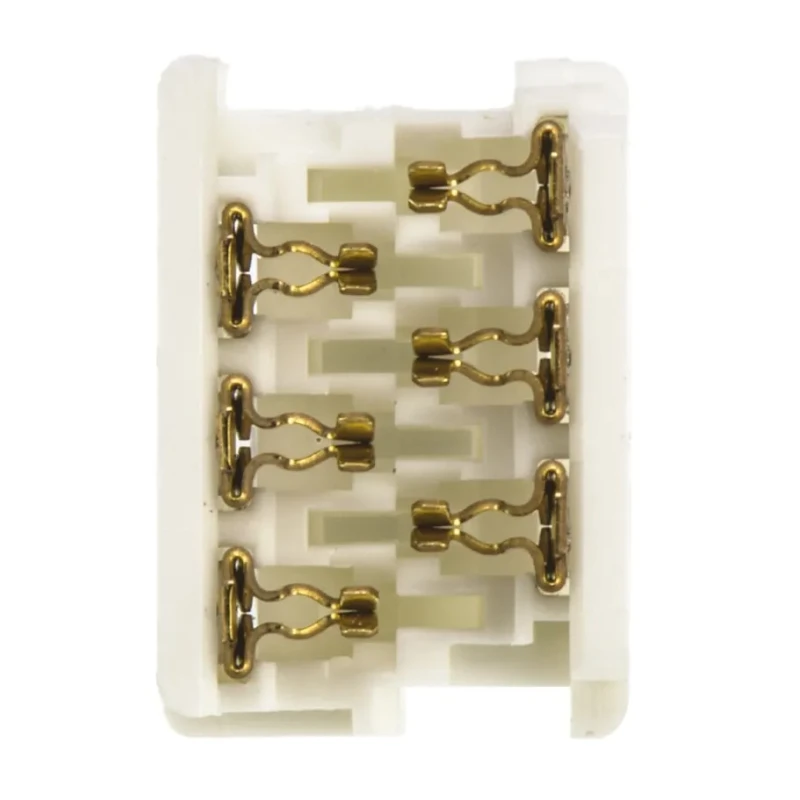

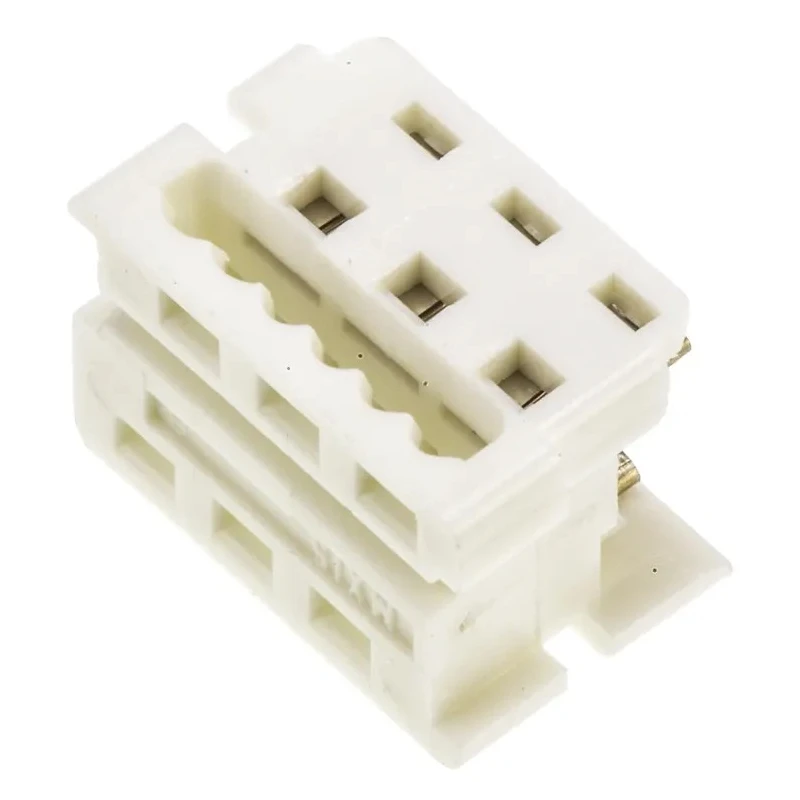

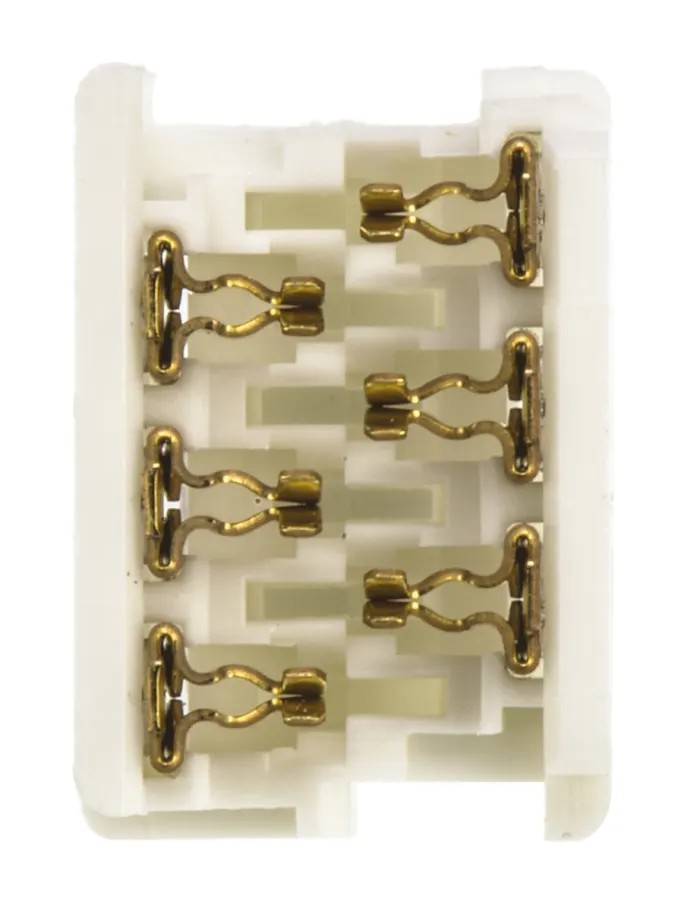

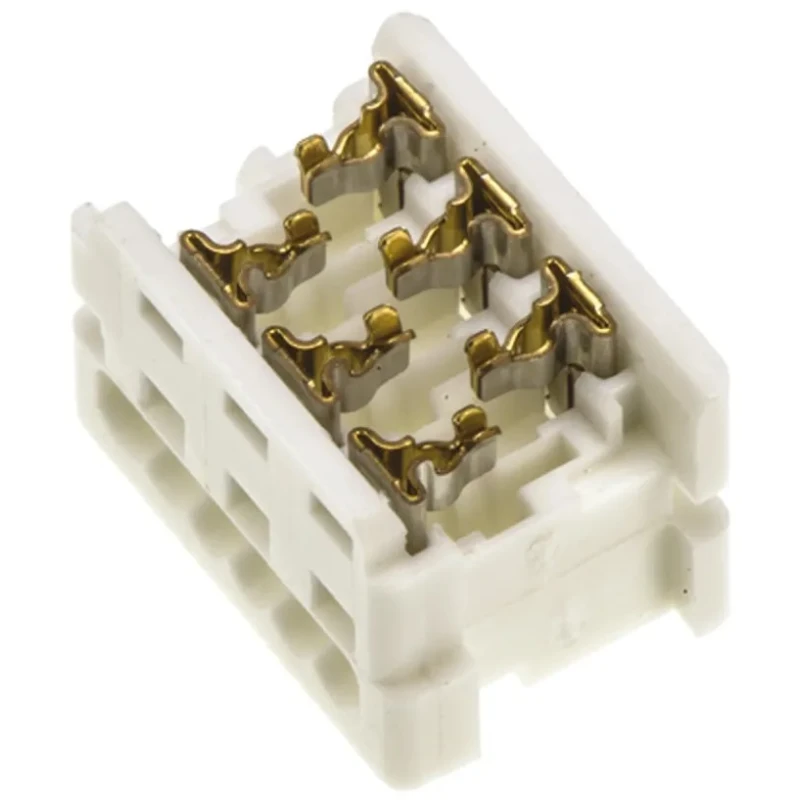

Molex 6-Way IDC Connector Female for Cable, 2 Row 90327-3306

Molex 90327-3306 IDC Connector Female for Cable, 2 Row is a high-quality 6-contact IDC connector designed for cable mounting and right-angle orientation. It supports a current rating of 1.2A and a voltage rating of 250V AC, allowing its use in various electronic applications requiring moderate current loads. Manufactured with phosphor bronze contacts plated with tin over nickel, it provides excellent electrical conductivity and protection against corrosion.

The connector features a two-row configuration with a 1.27mm pitch, which is ideal for compact assembly layouts and high-density wiring needs. Its polyethylene terephthalate housing meets UL94V-0 flame retardant standards, ensuring safety and durability. The connector is unshrouded and female gender, providing ease of cable insertion and secure electrical connections. Termination is by IDC (Insulation Displacement Contact) method, which facilitates rapid and reliable connections without soldering.

Designed within the Picoflex series, this connector offers about 50% space saving compared to traditional pitches, with a low overall height of 6.4mm when mated. It is well-suited for automotive, consumer electronics, and other industrial applications where vibration resistance and shock tolerance are critical. The device operates reliably within a broad temperature range of -40°C to 105°C, making it suitable for use in harsh environments.

The connector does not include specific industry approvals beyond UL and CSA references but is developed with high manufacturing standards. Its compact footprint, reliable contact system, and durable housing material make it an excellent choice for wire-to-board interconnections that demand space efficiency and long service life.

This IDC connector supports 1.2A current and 250V AC voltage for moderate electrical loads. Featuring two rows with 1.27mm pitch for compact design and high-density applications. Material includes phosphor bronze contacts with tin over nickel plating for excellent conductivity and corrosion resistance.

Housing is made of UL94V-0 rated polyethylene terephthalate providing durability and high temperature tolerance up to 105°C. Connector is unshrouded, female gender, with right-angle orientation suitable for wiring harnesses.

Connector termination is IDC type enabling fast reliable insulation displacement connection to cables. Operating temperature ranges from -40°C to 105°C ensuring robust performance in harsh environments. Series: Picoflex, designed for space-saving wire-to-board applications in automotive and consumer electronics.
