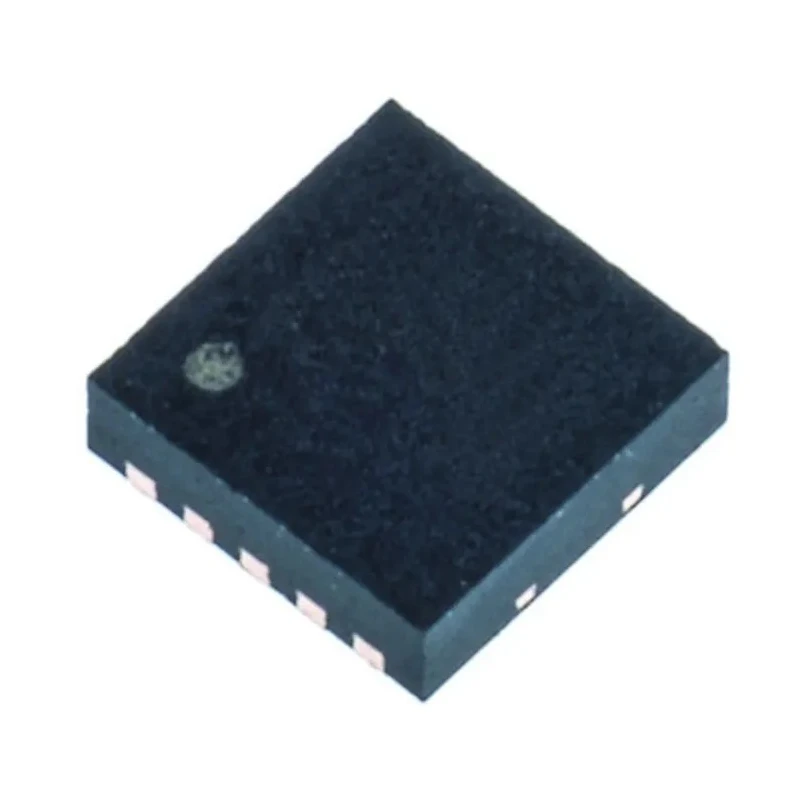

onsemi MOSFET Gate Driver 6 A 10-Pin 16 V Surface Mount MLP Package FAN8811TMPX

Name: onsemi MOSFET Gate Driver 6 A 10-Pin 16 V Surface Mount MLP Package FAN8811TMPX
Brand: onsemi
SKU: 204139
Price: 2.58 USD
Availability: InStock



Category MOSFET Gate Driver Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	710μm
Length	4mm
Model	FAN8811TMPX
Width	4mm
Mount Type	Surface
Series	Fan
Output Current	6A
Maximum Operating Temperature	125°C
Package Type	MLP
Minimum Operating Temperature	-40°C
Number of outputs	4
Rise Time	500ns
Pin Count	10
Minimum Supply Voltage	16V
Number of Drivers	2
Fall Time	300ns
Driver Type	MOSFET

Key Features

Delivers a maximum output current of 6 amperes for driving power MOSFETs effectively.
Features a compact 10-pin MLP package with 4 mm length, 4 mm width, and 710 μm height.
Operates at a supply voltage of 16 volts, supporting both minimum and maximum supply voltage at 16 V.
Includes two drivers and four outputs suitable for high and low side gate driving.
Offers fast switching with a rise time of 500 ns and fall time of 300 ns.
Designed for surface mounting to enhance PCB integration and assembly.
Operates reliably in temperatures ranging from -40°C to 125°C for extended industrial use.
Does not conform to automotive standards, focusing on general industrial electronics usage.

Product Description

The onsemi FAN8811TMPX is a MOSFET gate driver designed to provide efficient and reliable high and low side driving for power MOSFETs in industrial and electronic applications. It delivers a maximum output current of 6 A through a compact 10-pin MLP surface mount package measuring 4 mm by 4 mm and a height of 710 μm, which facilitates easy PCB integration in dense board layouts.

This driver operates at a fixed supply voltage of 16 V, ensuring stable performance with rise and fall times optimized at 500 ns and 300 ns respectively, allowing for rapid switching necessary in power management ICs. With two drivers and four outputs, the FAN8811TMPX can manage multiple MOSFET gates concurrently, making it suitable for high-efficiency power conversion or motor drive systems.

The device operates over a wide temperature range from -40°C to 125°C, which makes it appropriate for harsh industrial environments without degradation in performance. While this part does not meet automotive certification standards, it is robust for commercial and industrial electronics power management tasks.

Its surface mount package and stringent operating conditions make it favorable for modern electronics requiring compact and dependable MOSFET gate drivers. Delivers up to 6 A output current for powerful MOSFET switching.

Compact 10-pin MLP package enables high-density PCB layouts. Stable 16 V supply voltage with fast rise and fall times enhances switching performance. Two drivers and four outputs support simultaneous gate driving capabilities.

Wide operating temperature range (-40°C to 125°C) ensures reliability. Surface mount mount type improves PCB assembly and integration. Engineered for industrial, electronic components, and power management IC applications.

Does not conform to automotive standards but excels in industrial use cases.

This MOSFET Gate Driver is suitable for use in industrial power conversion, electronic control systems, and HVAC applications where efficient and precise MOSFET gate control is essential. It supports high-performance designs requiring fast switching times and durable operation over temperature extremes.
