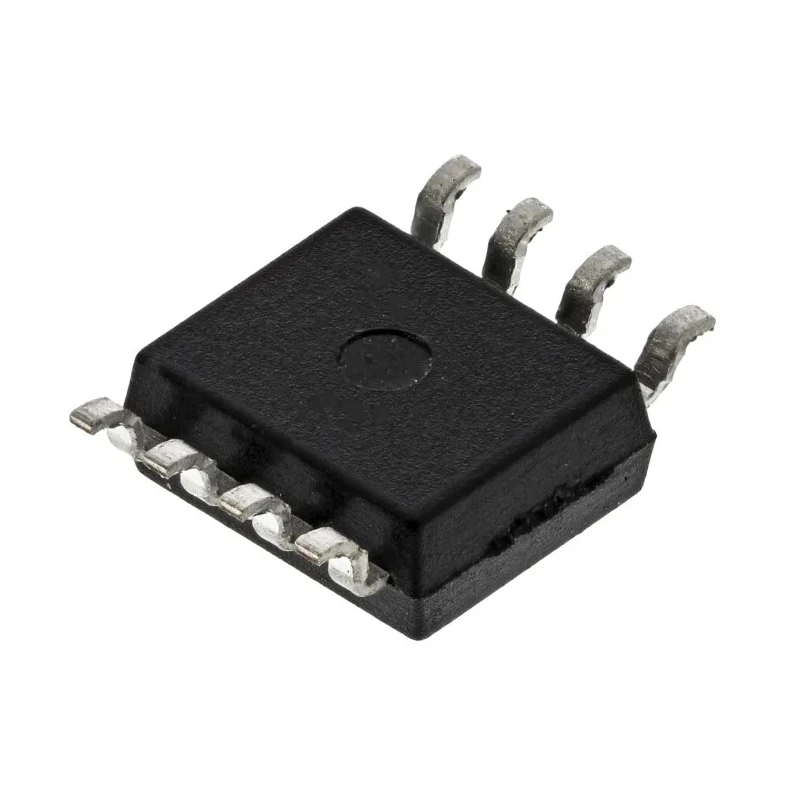

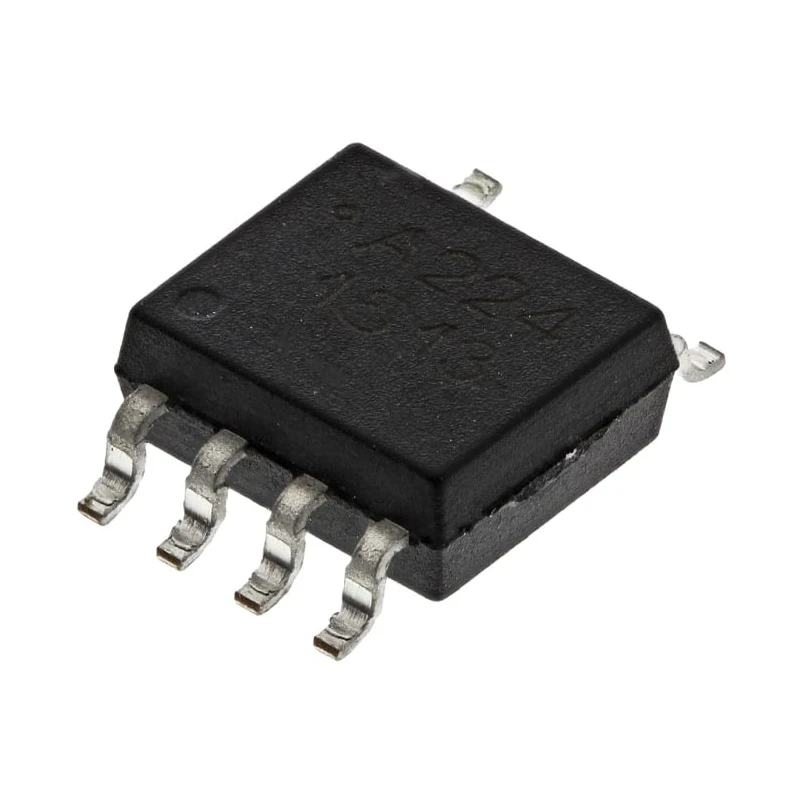

Broadcom ACPL-224-500E AC Input 2-Channel Optocoupler Surface Mount, 8-Pin SOIC AC Voltage Isolation ACPL-224-500E
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ACPL-224-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | ACPL |
| Maximum Operating Temperature | 110°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 8 |
| Input Current Type | AC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 20% |
| Isolation Voltage | 3000V ac |
Key Features
- Surface mount optocoupler designed for AC input signal isolation.
- Features 2 independent channels for dual input signals.
- Maximum forward voltage of 1.4 volts for efficient operation.
- Typical rise time of 2 microseconds and fall time of 3 microseconds for fast switching.
- High isolation voltage of 3000 volts AC for safety in electrical applications.
- Operates reliably between -55°C and 110°C ambient temperatures.
- Complies with UL, IEC, and EN safety standards for industrial use.
- Packaged in Tape & Reel format for automated assembly processes.
Product Description
Broadcom ACPL-224-500E AC Input 2-Channel Optocoupler integrates dual phototransistor channels within a compact 8-pin SOIC surface mount package. It offers AC input current type with a maximum forward voltage of 1.4 V, making it suitable for isolating AC signals in electronic circuits with high reliability.
This optocoupler features fast switching characteristics, including a typical rise time of 2 microseconds and fall time of 3 microseconds, providing efficient signal transmission. It supports a maximum input current of 50 mA and offers a broad operating temperature range from -55°C to 110°C, ensuring durable performance in varied industrial, automotive (non-automotive standard), and commercial applications.
The device is designed with an isolation voltage of 3000 volts AC, ensuring protection against electrical noise and surges, and helps maintain signal integrity across isolation barriers. It meets multiple international approvals including UL, IEC, and EN standards, reinforcing its suitability for demanding environments.
Packaged in Tape & Reel format, the ACPL-224-500E supports high-volume manufacturing with automated pick-and-place assembly on printed circuit boards. Its compact SOIC form factor conserves PCB space while providing dual channel isolation functionality.
Surface mount optocoupler with transistor output. Dual-channel isolation for AC inputs. Fast response times for signal integrity. High voltage isolation ensuring safety. Wide temperature operating range. Compliance with major safety standards.
Manufactured in China for global distribution. Suitable for industrial, electronic, and automation systems.
This Broadcom optocoupler is ideal for applications requiring isolation of AC input signals in industrial controls, power management, instrumentation, and electronic interface circuits. Browse our broad selection of electronic components and Optocouplers on EnvMart for compatible devices and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACPL-224-500E has a maximum isolation voltage of 3000 volts AC, ensuring protection against electrical noise and surges.
This model operates reliably between -55°C and 110°C, making it suitable for various industrial and commercial applications.
It features 2 independent channels for dual input signals, allowing for versatile applications in signal isolation.
The typical rise time is 2 microseconds and the fall time is 3 microseconds, providing fast switching characteristics for efficient signal transmission.
The maximum forward voltage for this optocoupler is 1.4 volts, which supports efficient operation in AC signal isolation.
It is packaged in Tape & Reel format, which is suitable for automated assembly processes in high-volume manufacturing.
The ACPL-224-500E supports a maximum input current of 50 mA, ensuring reliable performance in various applications.
This optocoupler complies with UL, IEC, and EN safety standards, reinforcing its suitability for industrial use.
It provides a transistor output, which is typical for optocouplers used in signal isolation applications.
This model has 8 pins, packaged in a compact SOIC format for efficient use of PCB space.
It is typically used for isolating AC input signals in industrial controls, power management, instrumentation, and electronic interface circuits.
The ACPL-224-500E is manufactured in China, making it available for global distribution.
