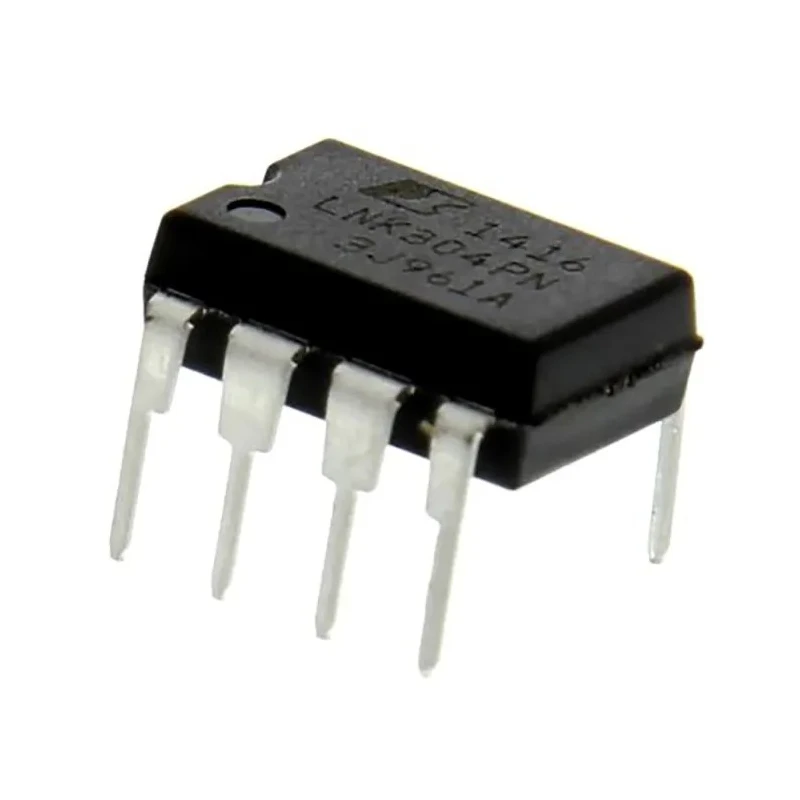

Power Integrations Buck Converter 12V 170mA Through Hole, 75% Efficiency, DIP-B Package LNK304PN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Efficiency | 75% |
| Length | 9.83mm |
| Model | LNK304PN |
| Depth | 6.6mm |
| Width | 3.68mm |
| Mount Type | Through Hole |
| Series | LNK304 |
| Output Current | 170mA |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP-B |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 265V ac |
| Standards/Approvals | JEDEC, RoHS |
| Minimum Input Voltage | 85V ac |
| Number of Pins | 7 |
| Output Voltage 1 | 12V |
| Output Voltage 2 | 700V |
Key Features
- Provides a regulated 12V output voltage for electronic circuits.
- Delivers up to 170mA output current for various applications.
- Constructed with efficient 75% energy conversion to minimize losses.
- Supports through hole DIP-B mounting for easy PCB assembly.
- Features wide input voltage range from 85V ac to 265V ac.
- Thermal protection and cycle-by-cycle current limit included for enhanced safety.
- Complies with JEDEC and RoHS standards for quality and environment.
- Operating temperature range from -40°C to 150°C makes it suitable for harsh conditions.
Product Description
Power Integrations LNK304PN Buck Converter is designed to deliver reliable regulated power for electronic circuits, offering a 12V stable output with a maximum current of 170mA. Its DIP-B through hole package facilitates easy integration into a variety of PCB designs for industrial and commercial electronics.
This converter leverages efficient conversion with up to 75% energy efficiency, helping minimize power losses and ensuring optimal performance. It features a broad input voltage range, from 85V ac to 265V ac, allowing use in worldwide applications and diverse supply conditions.
The LNK304PN includes robust protection features, such as thermal overload protection, cycle-by-cycle current limit, output short-circuit protection, and open loop protection. These attributes safeguard both the converter and the connected electronics, making it suitable for demanding environments. Its operating temperature ranges from -40°C up to 150°C, supporting deployment across rigorous industrial setups.
Constructed to meet JEDEC and RoHS standards, the converter aligns with regulatory requirements and environmental safety. Its 7-pin design simplifies layout and assembly, while its DIP-B package dimensions (length 9.83mm, width 3.68mm, depth 6.6mm) are optimized for standard PCB footprints.
Applications include industrial control systems, laboratory instrumentation, power management for embedded devices, and commercial electronic assemblies requiring consistent low-power DC voltages. The converter also supports multiple topologies, including buck, buck-boost, and flyback configurations.
Regulated DC power for microcontrollers, sensors, and control logic circuits. Integration into industrial, laboratory, and commercial electronic devices. Safety features help protect sensitive electronics in critical use cases.
Browse more Power Integrations products and DC Converters at EnvMart to support your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V.
The maximum output current is 170mA.
It operates with an efficiency of up to 75%.
The input voltage range is from 85V ac to 265V ac.
The package dimensions are 9.83mm in length, 3.68mm in width, and 6.6mm in depth.
It has an operating temperature range from -40°C to 150°C.
This unit supports through hole mounting.
It features a 7-pin design.
It includes thermal overload protection, cycle-by-cycle current limit, output short-circuit protection, and open loop protection.
It complies with JEDEC and RoHS standards.
This model is suitable for industrial control systems, laboratory instrumentation, and power management for embedded devices.
The series name is LNK304.
