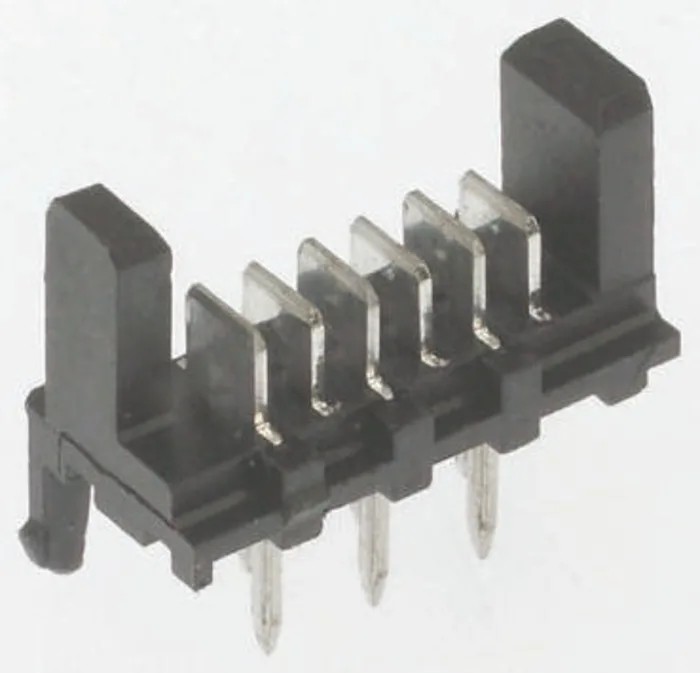

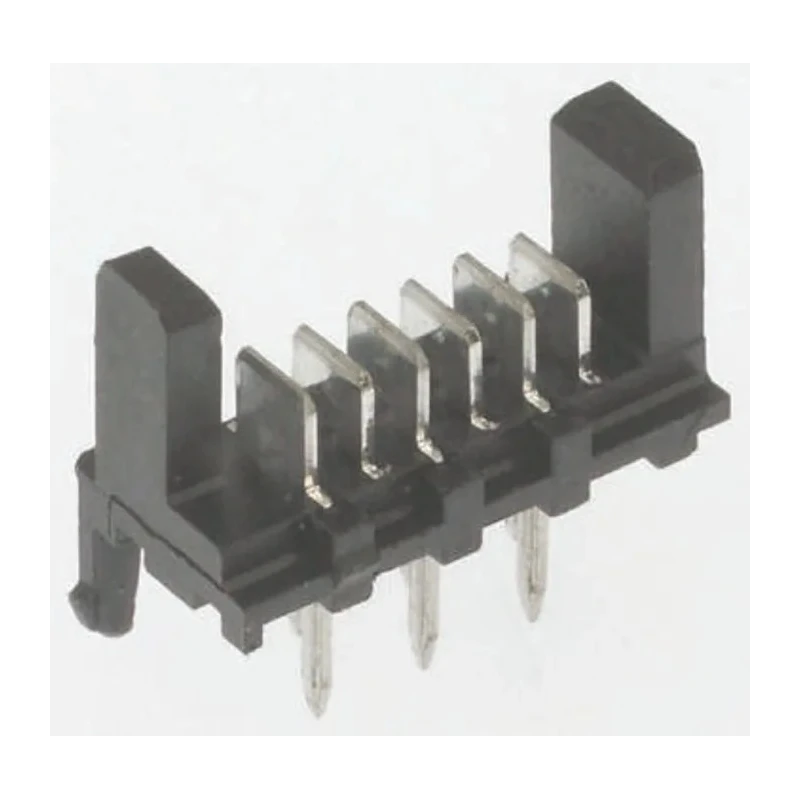

Molex 26-Way IDC Connector Male for Through Hole 1 Row 250V AC 1.2A 1.27mm Pitch 90325-0026
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Picoflex |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| 90814-00xx | SMT, Tin, with PCB pegs |
| 90814-06xx | SMT, Tin, no PCB pegs |
| 90814-07xx | SMT, Tin, no PCB pegs |
| 90814-08xx | SMT, Tin, with PCB pegs |
| 90814-09xx | SMT, Tin, with PCB pegs |
| 90814-38xx | SMT, Gold flash, with PCB pegs |
| 90814-39xx | SMT, Gold flash, with PCB pegs |
| 90325-00xx | Through hole, Tin, with PCB pegs |
| 90325-90xx | Through hole, Tin, with PCB pegs |
| 93405-05xx | Reverse footprint, SMT, Tin, no PCB pegs |
Key Features
- Rated for 250V AC voltage and 1.2 amperes current capacity.
- Features unshrouded male contacts with tin over nickel plating.
- Constructed with brass contacts and polybutylene terephthalate housing.
- Suitable operating temperature range from -40°C to 105°C.
- Designed with a straight orientation and through hole mount type for PCB assembly.
- Part of Molex's Picoflex series, ideal for high-density wire-to-board connections.
- Provides excellent polarization, integral strain relief, and vibration resistance.
- Commonly used in automotive and consumer electronics industries.
Product Description
Molex 90325-0026 26-Way IDC Connector Male is a high-density, reliable connector designed for through hole mounting on printed circuit boards. It features 26 contacts arranged in a single row with a pitch of 1.27mm, supporting a voltage rating of 250V AC and a current capacity of 1.2 amperes. The connector contacts are made of brass and plated with tin over nickel to ensure excellent conductivity and corrosion resistance.
The housing is constructed from durable polybutylene terephthalate, providing mechanical strength and stability under demanding industrial conditions. This connector is unshrouded with male contacts and a straight orientation, facilitating easy insertion and secure connection. Operating temperature ranges from -40°C to 105°C, suitable for various environmental conditions.
Part of Molex's Picoflex series, this IDC connector is engineered for space-saving wire-to-board connections with features like friction lock and polarization for error-free mating. It offers integral strain relief and high resistance to vibration and shock, making it ideal for applications in automotive, consumer electronics, and other industrial sectors requiring reliable electrical interconnections.
The connector complies with UL (E29179) and CSA (LR19980-181) approvals. It supports various termination options and series variants to meet specific assembly requirements. Typical uses include PCB wiring harnesses, signal transmission, and space-constrained electronic devices.
Rated for 250V AC voltage and 1.2A current capacity. Brass contacts with tin over nickel plating for durability and conductivity. Polybutylene terephthalate housing provides mechanical protection. Single row, 26 contact IDC connector with 1.27mm pitch.
Operating temperature from -40°C up to 105°C. Designed for through hole mounting and straight connector orientation. Part of the Picoflex series offering compact and reliable wire-to-board connections. High resistance to vibration and shock for industrial use cases.
This Molex IDC Connector is an essential component for electronic manufacturing, assembly, and repair applications, supporting efficient and reliable PCB interconnections. Explore more in the Electronics Components section for industrial electronic connectors and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V AC voltage and has a current capacity of 1.2 amperes.
It features brass contacts plated with tin over nickel and a housing made from polybutylene terephthalate.
This model has a pitch of 1.27mm and contains 26 contacts arranged in a single row.
The operating temperature range is from -40°C to 105°C.
It is designed for through hole mounting, allowing for secure installation on printed circuit boards.
This connector is part of the Molex Picoflex series, which is designed for high-density wire-to-board connections.
It uses Insulation Displacement Contact (IDC) termination type.
Yes, it offers excellent polarization, integral strain relief, and high resistance to vibration and shock.
The connector features male contacts that are unshrouded for easy insertion.
Yes, it complies with UL (E29179) and CSA (LR19980-181) approvals.
Common applications include PCB wiring harnesses, signal transmission, and use in space-constrained electronic devices.
The connector is manufactured in Ireland.
