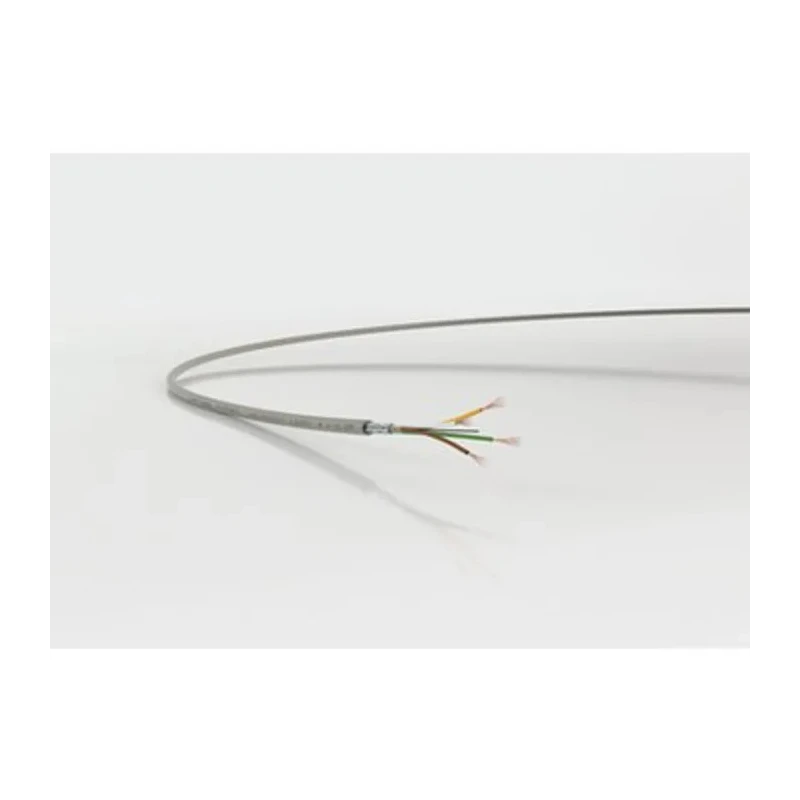

Lapp UNITRONIC LiYCY Series Data Cable 14 Pairs 14 Cores 0.25 mm² 100 m Grey Sheath Polyvinyl Chloride 0034414
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25 mm² |
| Model | 0034414 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 14 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 14 |
| Core Strands | 14 x 0.14mm |
| Size of Strands | 0.14mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 14 |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- The cable is screened to reduce electrical interference during signal transmission.
- Flexible stranded bare copper conductors enhance conductivity and durability.
- Designed for fixed installation with operating temperatures from -40°C to +80°C.
- Flame-retardant sheath meets IEC 60332-1-2 and EN 60332-1-2 safety standards.
- Outer diameter of 8 mm and 100 meters cable length suit space-saving applications.
- Suitable for communications, process control, signal, and broadcast uses in industrial environments.
- Complies with CE and RoHS standards for quality and environmental safety.
- Includes DIN colour-coded cores for easy identification during installation.
Product Description
Lapp 0034414 UNITRONIC LiYCY Series Data Cable is a high-quality screened multi-core data cable designed for low-frequency and signal transmission applications. It features 14 pairs and 14 cores of stranded bare copper conductors with a 0.25 mm² cross-sectional area, enclosed within a grey polyvinyl chloride sheath.
The cable delivers reliable performance with an 8 mm outer diameter and flame-retardant properties compliant with IEC 60332-1-2 and EN 60332-1-2 standards. It is engineered for use in fixed installation environments with temperature ratings between -40°C and +80°C, as well as occasional flexing between -5°C to +70°C.
The shielding braid made from tinned wires minimizes electrical interference, making it ideal for industrial applications such as process control, communications, RS 232 systems, and signal and broadcast installations. The DIN colour-coded cores facilitate straightforward wiring and identification.
Constructed with polyvinyl chloride materials, the jacket offers durable protection against environmental factors and mechanical stress. Certification standards met include CE and RoHS, assuring adherence to safety and environmental regulations.
Lapp also provides compatible low-resistance screen cable glands for effective cable connection and screening: M16, M20, M25, M32, M40, and M50 Skintop EMC Cable Glands. The cable is screened to reduce electrical interference during signal transmission.
Flexible stranded bare copper conductors enhance conductivity and durability. Designed for fixed installation with operating temperatures from -40°C to +80°C. Flame-retardant sheath meets IEC 60332-1-2 and EN 60332-1-2 safety standards.
Outer diameter of 8 mm and 100 meters cable length suit space-saving applications. Suitable for communications, process control, signal, and broadcast uses in industrial environments. Complies with CE and RoHS standards for quality and environmental safety.
Includes DIN colour-coded cores for easy identification during installation.
This UNITRONIC LiYCY Data Cable from Lapp represents an industrial-grade solution for reliable data and signal transmission in demanding electrical and automation applications. It is well suited for use in electrical power systems, industrial control panels, and manufacturing facilities.
Explore more high-quality data cables and related accessories in the Data Cable category on EnvMart for enhanced electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 80°C.
This model features 14 cores and 14 pairs of stranded bare copper conductors.
The outer diameter of this cable is 8 mm.
The cable is designed for fixed installation with operating temperatures ranging from -40°C to +80°C.
Yes, this cable is screened to reduce electrical interference during signal transmission.
The jacket of this cable is made from polyvinyl chloride (PVC).
This cable complies with CE and RoHS standards for quality and environmental safety.
The voltage rating for this data cable is 250V.
The length of this data cable is 100 meters.
This cable is suitable for communications, process control, signal, and broadcast applications in industrial environments.
The minimum operating temperature for occasional flexing is -5°C to +70°C.
The cable uses stranded bare copper conductors to enhance conductivity.
