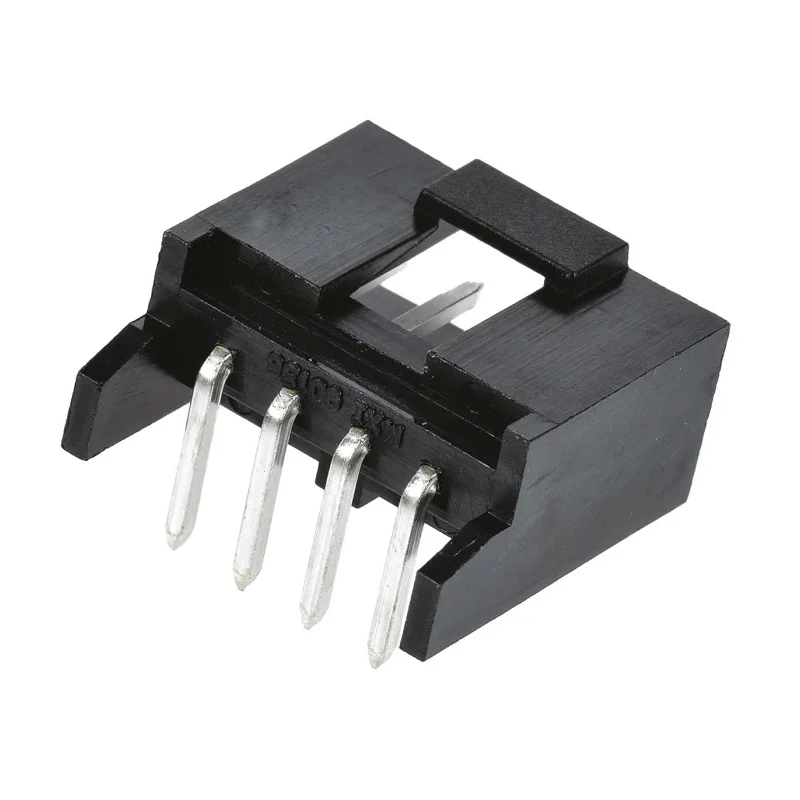

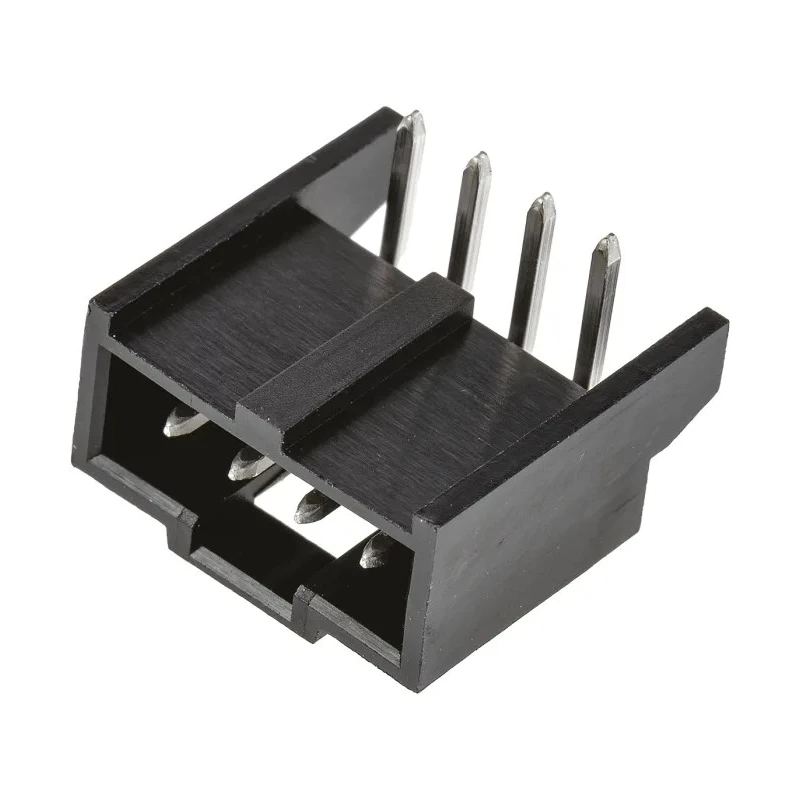

Molex C-Grid III Series Right Angle Through Hole PCB Header, 4 Contacts, 2.54mm Pitch, 1 Row, Shrouded 90136-2104
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The header has a 1 row configuration for compact PCB mounting.
- Constructed with brass contact material and tin plating for reliable conductivity.
- Rated for 3 Amp current and 350 Volt operating voltage.
- Operates within a temperature range of -55°C to 125°C for versatile application environments.
- Features solder termination with a male contact gender and wire-to-board connector system.
- Includes a right angle orientation and is shrouded for added protection and secure mating.
- Tail pin length measures 2.9mm and mating pin length is 6.75mm.
- Designed for through hole mounting providing mechanical stability on the PCB.
Product Description
Molex 90136-2104 PCB Header is part of the C-Grid III Series, presenting a right angle, through hole header with 4 male contacts arranged in a single row and a 2.54 mm pitch spacing.
This PCB header is designed with a shrouded polyester housing that provides protection and ensures correct pin alignment during assembly, featuring brass contacts plated with tin to enhance conductivity and corrosion resistance.
It supports a continuous current rating of 3 Amps and can withstand operating voltages up to 350 V, making it suitable for a wide range of PCB connector applications in industrial and commercial electronic devices.
The header operates effectively within a broad temperature range from -55°C to 125°C, suitable for demanding environmental conditions.
The connector system is wire-to-board, utilizing solder terminations on male contacts for secure electrical connections and mechanical robustness. Tail pin length is 2.9 mm, while the mating pin length extends to 6.75 mm, facilitating a reliable mate with compatible locking housings.
This right angle configuration enables optimal PCB layout designs where vertical space is limited, commonly employed in industrial control systems, electronic instrumentation, automation equipment, and communications hardware.
The header features a polyester housing material for durability and electrical insulation. Male contact gender promoting easy integration into locking housings. Through hole mount type ensures solid, stable mounting on the PCB substrate.
Shrouded design protects against inadvertent shorts and enhances connector reliability. Contact plating with tin increases resistance against oxidation and wear. Standard 2.54 mm pitch ensures broad compatibility with industry-standard headers.
Current rating of 3A and a maximum voltage rating of 350V meets common electronic connector standards.
Overall, the Molex 90136-2104 is an industrial-grade PCB header ideal for reliable wire-to-board connection in electronics manufacturing, laboratory instrumentation, automation, and HVAC control panels.
Explore the wide range of Molex connectors at EnvMart to find complementary PCB components for your design and assembly needs.
Explore more products in our PCB Headers category.
