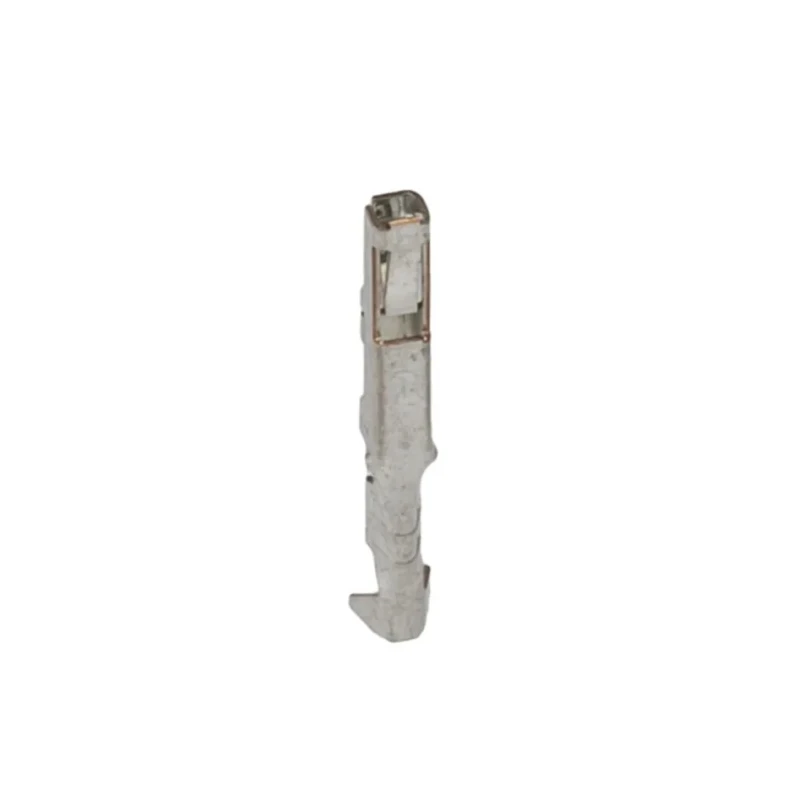

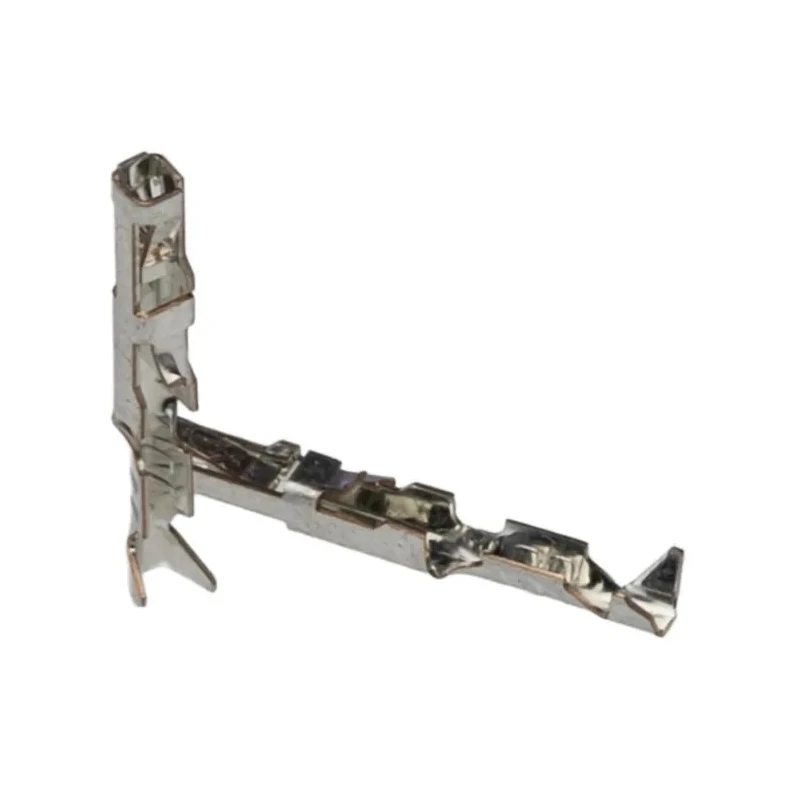

Molex 90119 Series Female Crimp Terminal Compatible with C-Grid III Housing 28 AWG Min, 26 AWG Max 3A Current 90119-2120

Molex 90119-2120 is a female crimp terminal designed for use with C-Grid III connector housing, optimized for wire sizes between 28 AWG (0.08 mm²) and 26 AWG (0.1 mm²). This crimp terminal supports secure and reliable connections in electronic assemblies by employing a mechanical crimp termination method that ensures robust electrical and mechanical bonding suitable for signal and wire-to-board applications.

Manufactured from high-quality phosphor bronze with a tin plating finish, it offers excellent conductivity while resisting corrosion in various operating environments. The terminal supports wire insulation diameters ranging from 0.76 mm to 1.22 mm, allowing compatibility with common wire types encountered in electronics.

It features a current rating of 3 amperes and operates within a temperature range from -55°C to 105°C, meeting the demands of various industrial, electronics, and automation contexts. The maximum contact resistance of 20 milliohms ensures minimal signal loss, making it suitable for high-performance electronic systems.

Applications include use in electronic signal transmission systems, wire-to-board connections, and within automation and control equipment in industrial environments. The crimp termination design enhances connection reliability by mechanically securing the wire, reducing disconnections or signal degradation over time.

The product is supplied in reel packaging, facilitating straightforward handling and integration into automated production lines, improving manufacturing efficiency. Designed for use with C-Grid III connector housing for compatibility.

Crimp termination ensures secure, robust mechanical and electrical connections. Constructed from phosphor bronze with tin plating for excellent conductivity and corrosion resistance. Supports wire insulation diameters of 0.76 to 1.22 mm to fit various wire types.

Rated for 3 amperes current carrying capacity suitable for diverse electronic applications. Operates reliably from -55°C to 105°C for wide temperature environment tolerance. Maximum contact resistance of 20 milliohms promotes low signal loss.

Ideal for electronic system signal transmission, wire-to-board and automation equipment uses. Available in reel packaging for efficient storage and automated insertion processes. Discover more industrial-grade connectors and Crimp Contacts on EnvMart for your electronics manufacturing and maintenance needs.
