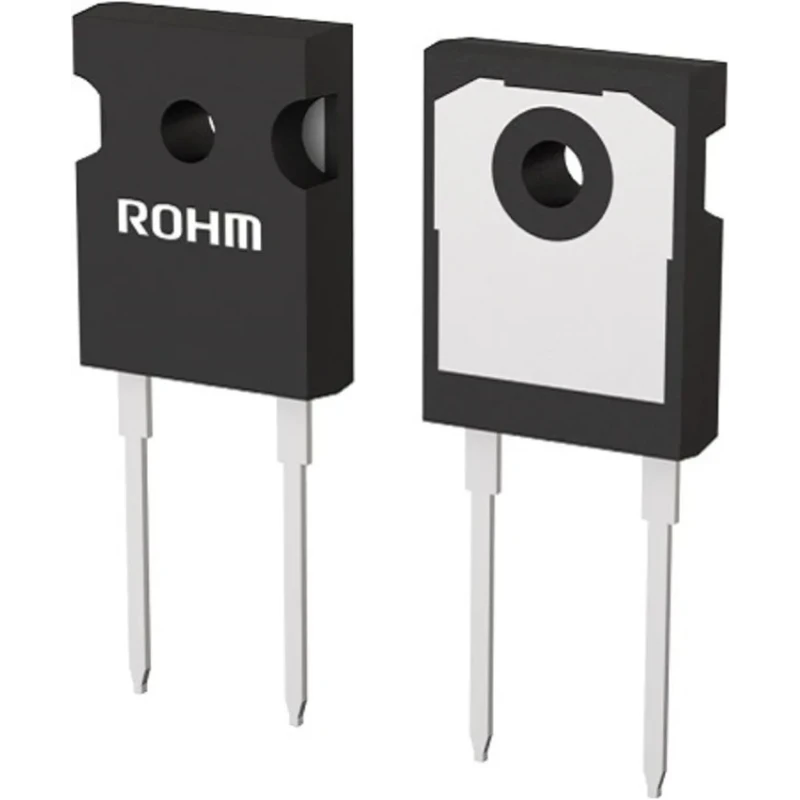

ROHM Epitaxial Planar Silicon Ultra Fast Recovery Diode 30 A 650 V TO-247GE-2L RFL30TZ6SGC13
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 21.25mm |
| Length | 16.24mm |
| Model | RFL30TZ6SGC13 |
| Width | 5.22mm |
| Mount Type | Through Hole |
| Series | RFL30TZ6S |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247GE-2L |
| Sub Type | Epitaxial Planar |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.5V |
| Peak Reverse Recovery Time trr | 55ns |
| Maximum Forward Current If | 30A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 650V |
Key Features
- Single diode configuration designed for high efficiency rectification.
- TO-247GE-2L package with 2 pins for through-hole mounting.
- Maximum forward current of 30 amperes for robust applications.
- Peak reverse recovery time of 55 nanoseconds for ultra fast switching.
- Maximum reverse voltage rating of 650 volts ensuring reliable performance.
- High surge current capacity of 200 amperes for transient tolerance.
- Operating temperature range from -55°C to 175°C suitable for harsh environments.
- Compliant with RoHS standards and certified to AEC-Q101 automotive standard.
Product Description
ROHM RFL30TZ6SGC13 is a silicon epitaxial planar ultra fast recovery diode rated for a maximum forward current of 30 A and reverse voltage of 650 V. Encapsulated in a TO-247GE-2L package with 2 pins, it is optimized for through-hole mounting applications requiring fast switching and high surge current capacity.
This diode features a peak reverse recovery time of 55 nanoseconds, making it suitable for general rectification and power factor correction (PFC) continuous current mode applications in industrial, automotive, and power electronics circuits.
The device operates reliably within a temperature range of -55°C to 175°C, providing excellent durability in harsh electrical environments. It meets RoHS environmental standards and conforms to the AEC-Q101 automotive qualification for enhanced quality assurance.
The compact physical dimensions of 16.24 mm length, 21.25 mm height, and 5.22 mm width facilitate efficient PCB layout and integration in dense power modules. Its low forward voltage of 1.5 V contributes to reduced conduction losses and improved energy efficiency.
This epitaxial planar diode is ideal for engineers and designers working on high performance power supply, inverter, and motor control applications, delivering fast recovery switching and high overload capability.
Single diode configuration designed for high efficiency rectification. TO-247GE-2L package with 2 pins for through-hole mounting. 30 A maximum forward current rating for powerful circuit loads. Fast 55 ns peak reverse recovery time for ultra fast switching.
650 V maximum peak reverse repetitive voltage for reliability. High surge current of 200 A for transient tolerance. Wide operating temperature range from -55°C to 175°C. RoHS compliant and AEC-Q101 automotive certified. Compact design suitable for industrial and automotive applications.
Explore the Semiconductor and Switching Diode categories at EnvMart for a broad selection of high quality components including epitaxial planar diodes designed to meet demanding industrial and automotive power requirements.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of this diode is 30 A, making it suitable for powerful circuit loads.
The peak reverse recovery time for this model is 55 nanoseconds, allowing for ultra fast switching applications.
The maximum reverse voltage rating for this diode is 650 V, ensuring reliable performance in various applications.
It has a high surge current capacity of 200 A, providing good transient tolerance.
The dimensions of the TO-247GE-2L package are 16.24 mm in length, 21.25 mm in height, and 5.22 mm in width.
This diode operates within a temperature range of -55°C to 175°C, making it suitable for harsh environments.
Yes, this model is compliant with RoHS standards, ensuring it meets environmental regulations.
It conforms to the AEC-Q101 automotive standard, which enhances quality assurance for automotive applications.
This diode has 2 pins, designed for through-hole mounting applications.
It utilizes a single diode configuration, optimized for high efficiency rectification.
The maximum forward voltage drop is 1.5 V, contributing to reduced conduction losses.
This diode is suitable for general rectification and power factor correction (PFC) in industrial, automotive, and power electronics circuits.
