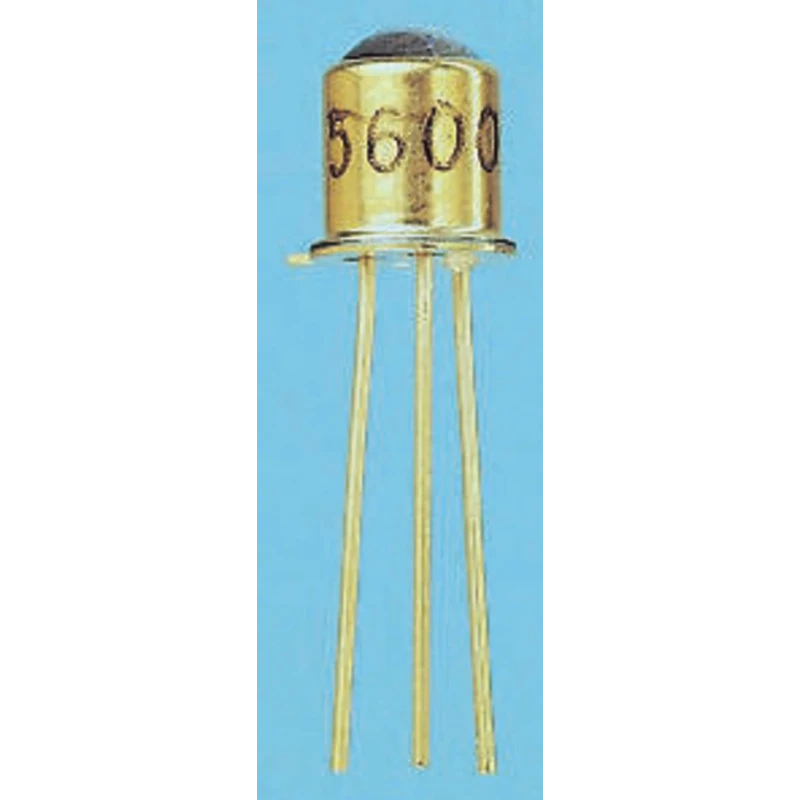

ams OSRAM NPN Phototransistor Visible Light, Infrared, TO-18 Metal Can 110° Half Sensitivity, Through Hole 3-Pin BP 103-3/4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.1mm |
| Brand | ams OSRAM |
| Height | 3.6mm |
| Length | 5.5mm |
| Model | BP 103-3/4 |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | Metal Can TO18 |
| Maximum Operating Temperature | 80°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Angle of Half Sensitivity | 110 ° |
| Collector Current | 100mA |
| Maximum Light Current | 950μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
Key Features
- High sensitivity to both visible and infrared light spectra.
- Standard 3-pin through hole TO-18 metal can package suitable for hostile environments.
- Typical rise and fall times of 12 microseconds ensure fast response.
- Peak wavelength at 850 nanometers optimized for infrared applications.
- Maximum collector current of 100 mA and collector emitter voltage rating of 35 V.
- Operating temperature range from -40°C to 80°C.
- Complies with RoHS environmental standards.
- Compact dimensions with 5.5 mm length, 5.5 mm width, 4.1 mm diameter, and 3.6 mm height.
Product Description
ams OSRAM BP 103-3/4 is an NPN phototransistor housed in a TO-18 metal can package designed for efficient detection of visible and infrared light. The device features a through-hole 3-pin mounting configuration, making it suitable for integration into printed circuit boards in industrial, electronic, and optoelectronic systems.
This phototransistor offers a wide angle of half sensitivity of 110 degrees, enabling broad light detection capabilities. With typical rise and fall times of 12 microseconds, it provides a fast response necessary for various sensing applications.
The phototransistor operates reliably within a temperature range of -40°C to 80°C and can handle a maximum collector current of 100 mA with a collector emitter voltage of 35 V. Its peak wavelength sensitivity at 850 nm is optimized for infrared detection.
The compact TO-18 metal can package (5.5 mm length, 5.5 mm width, 4.1 mm diameter, 3.6 mm height) enhances durability and performance in demanding working environments and complies with RoHS standards.
High sensitivity to visible and infrared wavelengths for versatile applications. Robust metal can TO-18 package suitable for hostile environments. Fast switching times for responsive sensing. Wide operating temperature range ensures reliability in diverse conditions.
Low dark current for improved signal accuracy and noise reduction. Typical applications include optocouplers, light sensors, and industrial electronics. Through-hole mounting simplicity for easy PCB integration.
This phototransistor is ideal for use in industrial automation, sensor technology, lighting controls, and electronic equipment where precise light detection is critical. Its durable metal package and reliable performance make it a favored choice in the electronics components category.
Explore the full range of Phototransistors and optoelectronic components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength sensitivity of this model is 850 nanometers, which is optimized for infrared applications.
This phototransistor has a maximum collector current rating of 100 mA.
It operates reliably within a temperature range of -40°C to 80°C.
The dimensions of the TO-18 metal can package are 5.5 mm in length, 5.5 mm in width, 4.1 mm in diameter, and 3.6 mm in height.
The angle of half sensitivity is 110 degrees, allowing for broad light detection capabilities.
It features a through-hole 3-pin mounting configuration suitable for integration into printed circuit boards.
The typical rise and fall times are 12 microseconds, ensuring a fast response for various sensing applications.
It is sensitive to both visible light and infrared light spectra.
The collector emitter voltage rating is 35 V.
Yes, it complies with RoHS environmental standards.
The maximum dark current is 50 nA, which helps improve signal accuracy and reduce noise.
This model is suitable for applications in industrial automation, sensor technology, lighting controls, and electronic equipment requiring precise light detection.
