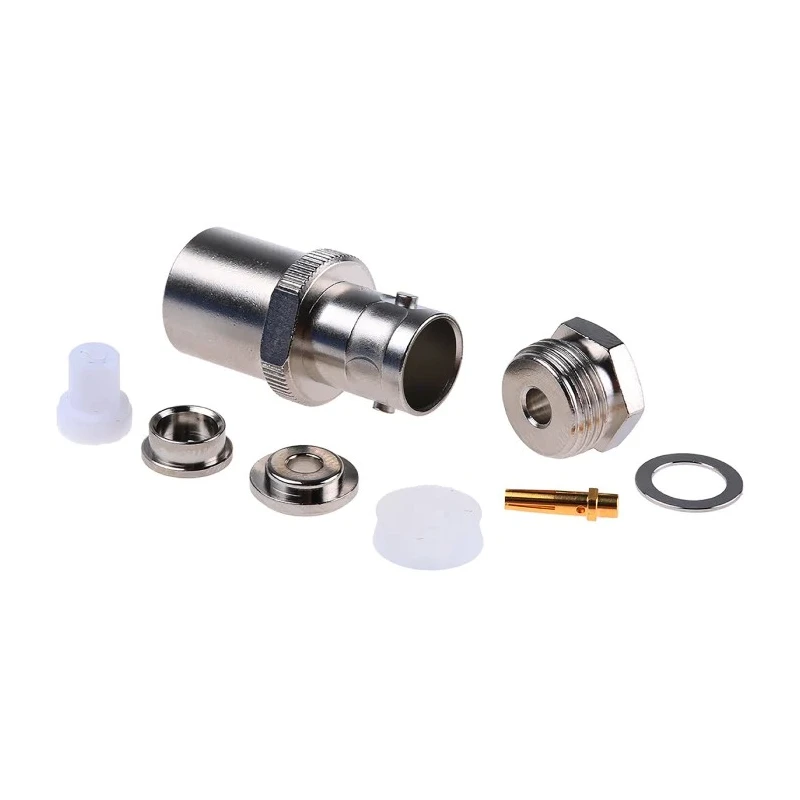

Telegartner BNC Series Coaxial Connector Cable Female BNC, 50Ω, Straight Body Clamp J01001A0032
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001A0032 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Clamp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- BNC cable-mount coaxial connector with straight body clamp.
- Female gender interface for secure RF signal connections.
- 50Ω characteristic impedance for professional-grade applications.
- Operational frequency up to 4 GHz for reliable high-frequency performance.
- Gold-plated beryllium copper contacts for superior signal integrity.
- Rugged nickel-plated body for enhanced durability and corrosion resistance.
- Clamp termination suitable for RG316/U cable type.
- Wide operating temperature range from -65°C to 165°C.
Product Description
The Telegartner J01001A0032 is a premium BNC Series coaxial connector engineered for cable-mount applications demanding precision and reliability. This straight body clamp connector is designed for secure and stable connection of coaxial cables in RF professional environments including broadcasting, laboratory instrumentation, and data communications.
It incorporates a female BNC jack interface, permitting straightforward mating with standard BNC male plugs using a bayonet coupling mechanism. This quick-connect solution is widely favored for test and measurement setups, broadcast studios, RF instrumentation, and general electronics connectivity due to its ease of use and robust mechanical performance.
Engineered for impedance matching at 50 ohms, the J01001A0032 delivers consistent signal transmission with minimal reflection, making it an excellent choice for both analog and digital systems requiring precise RF performance up to 4 GHz. The contacts are manufactured from high-quality beryllium copper alloy and plated with gold, ensuring both superior electrical conductivity and long-term corrosion resistance. The connector body is finished with a nickel plating, reinforcing the product’s durability even under rugged industrial and field operating conditions.
This connector accommodates RG316/U cable types via clamp-style termination, supporting secure, vibration-resistant installations. It operates across a broad temperature range from -65°C to 165°C, making it suitable for diverse applications in controlled laboratory environments as well as outdoor or exposed industrial locations. Its design profile meets the BNC series standards for interchangeability and system integrity.
The IP54 rating when mated (with matching components) offers protection against dust ingress and splashes, suitable for most laboratory, industrial, communications, and test environments. Applications include signal distribution, high-frequency video and data transmissions, and reliable laboratory RF testing. This connector is ideal for engineers, laboratory professionals, and systems integrators seeking dependable coaxial terminations.
Explore the full range of RF and Coaxial Connectors to find appropriate accessories and compatible connectors for your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of up to 4 GHz, making it suitable for high-frequency applications.
It is designed for clamp termination suitable for RG316/U cable types, ensuring secure connections.
This connector has a characteristic impedance of 50Ω, which is ideal for professional-grade RF applications.
The contacts are made from beryllium copper alloy and are gold-plated for superior electrical conductivity and corrosion resistance.
It operates within a wide temperature range from -65°C to 165°C, making it suitable for various environments.
The connector body is nickel-plated, enhancing its durability and resistance to corrosion.
This model features a female BNC jack interface, allowing for easy mating with standard male BNC plugs.
It utilizes a clamp termination method, which provides secure and vibration-resistant installations for reliable performance.
It is suitable for applications in broadcasting, laboratory instrumentation, data communications, and RF testing.
The connector has a straight body orientation, which facilitates straightforward installation and connection.
Yes, it has an IP54 rating when mated with compatible components, providing protection against dust ingress and splashes.
The Telegartner BNC connector is manufactured in Germany, ensuring high standards of quality and precision.
