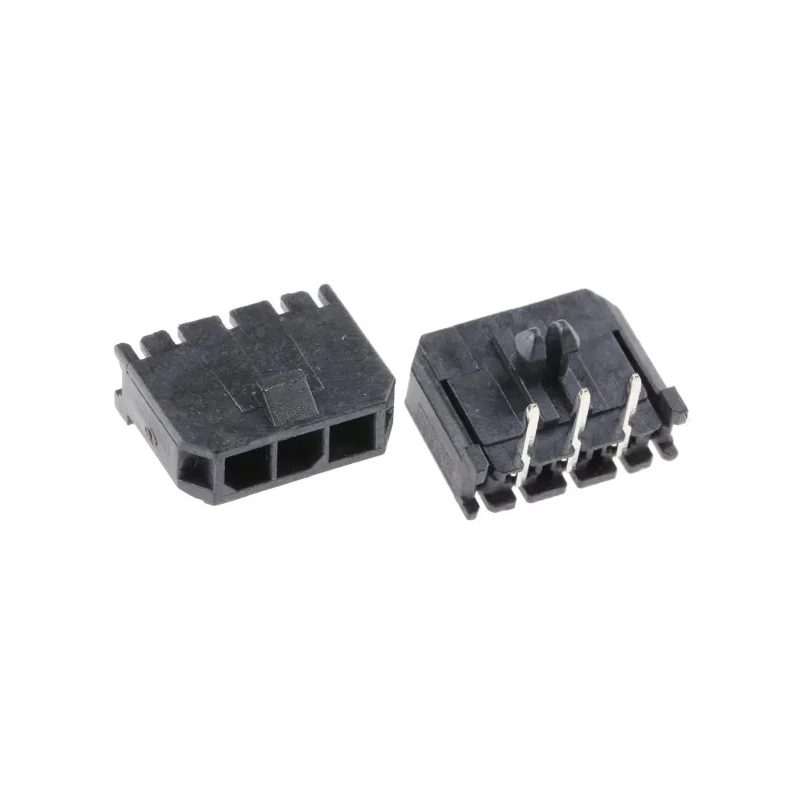

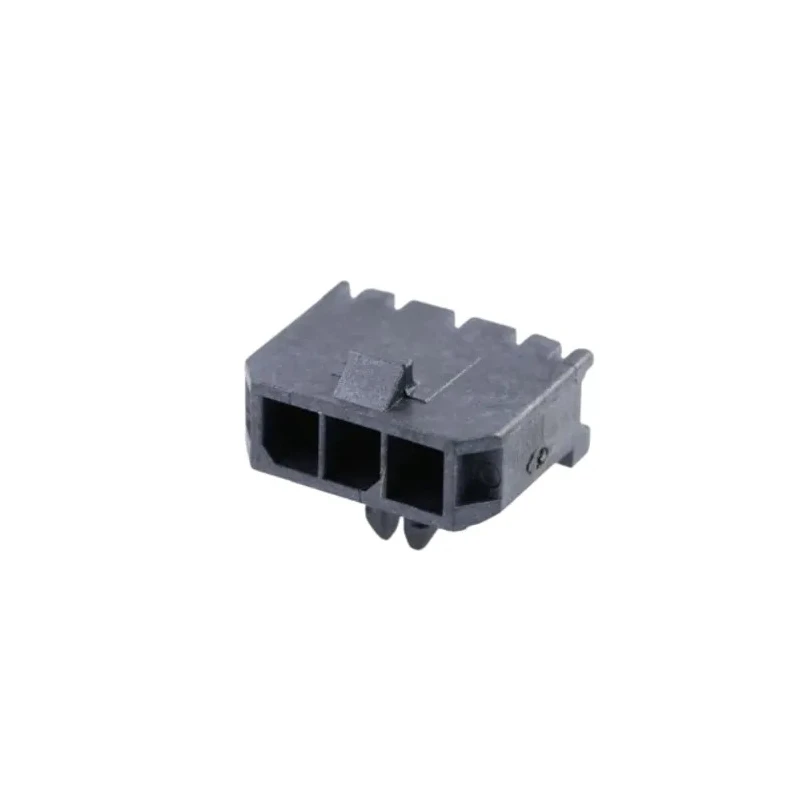

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 3 Contacts, 3 mm Pitch, 1 Row, Shrouded 43650-0300

Molex 43650-0300 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header features a compact power connector solution with high current capacity and reliable performance. This right angle design with 3 female contacts arranged in one row at a 3 mm pitch is perfect for space-constrained electronic applications.

The header's thermoplastic housing is impact-resistant and capable of withstanding high-temperature IR reflow soldering up to 265°C. It incorporates snap-in plastic peg PCB locks to secure the connector firmly onto the circuit board and reduce arcing risks by fully isolating contacts within the housing.

Contact components are made from brass material plated with tin to provide excellent electrical conductivity and resist corrosion in damp or harsh environments. This connector supports a voltage rating of 600V and a current capacity of 8.5A, making it suitable for mid-range power distribution applications.

The shrouded and right angle orientation coupled with a positive latching locking ramp ensures secure mating and protection during operation. The low-halogen construction also makes this PCB header environmentally safe as it limits the emission of toxic fumes in fire conditions.

Typical applications include security and surveillance equipment, computer peripherals, and medical devices requiring robust wire-to-board connections. The reliable through-hole mount provides a vibration-proof linkage ideal for industrial and commercial electronic assemblies.

Thermoplastic housing for high impact endurance and thermal resistance. Through-hole solder termination ensures long-term secure PCB attachment. Brass and tin-plated contacts guarantee corrosion resistance and conductivity.

Right angle, shrouded 3-contact single-row design maximizes PCB space use. Supports 600V voltage and 8.5A current for mid-level power distribution. Positive latching ramp prevents accidental circuit disconnection. Low-halogen construction supports environmental safety standards.

Applications range from industrial to medical electronic equipment. Manufactured in Mexico meeting strict quality controls. Explore more Molex connectors and PCB components at EnvMart for reliable electronic assembly solutions.
